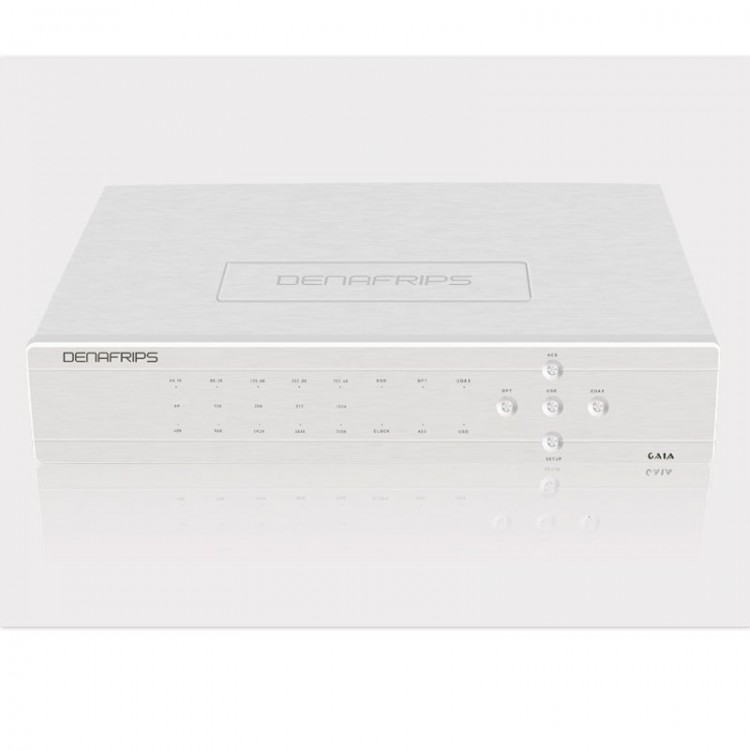

Denafrips Silvery GAIA12th Femtosecond Clock HiFi Lossless Audio Player USB Interface Digital Isolation
Features:
- Adopting the main control EP4CE22 high efficiency chip, the audio signal transmission is not distorted and the sound quality can reach the HiFi standard.
- It uses single crystal copper wire material wrapped layer by layer to ensure stable and sturdy power supply, meet strict speaker load conditions, and effectively reduce noise substrate.
- GAIA adopts dual crystal oscillator design, which can accurately restore audio signals with different sampling rates, greatly reducing jitter and significantly improving stability.
- GAIA is equipped with a proprietary USB audio solution driven by STM32F446, supporting 24bit/768KHzpcm data stream and native processing from DSD to DSD512.
- The digital signal is completely isolated by a 50Mbps high-speed optocoupler. Optical isolation can reduce noise substrate to achieve high signal-to-noise ratio.
Specification:
- Model: GAIA
- AC power: 110 - 230V, 50/60Hz
- Power consumption: < 30W
- Digital input: Coax SPDIF via RCA, TOSLINK x 1, AES/EBU x 1, USB
- External clock input: 49.152MHz, 45.1584MHz
- Digital output: Coax SPDIF via RCA, TOSLINK x 1, AES/EBU x 2, I2S HDMI LVDS Standard, I2S RJ45 LVCMOS Standard
- Supported format (DSD): DSD64 ALL Input, DSD64 - DSD512 USB & I2S Only
- Supported format (PCM): 24bit/44.1, 48, 88.2, 96, 176.4, 192kHz ALL Input 44.1 - 768kHz USB & I2S Only
- Size: 33.6 x 24.7 x 6.5cm
- Weight: 6.0kg
Package Included:
- 1 x USB Interface
