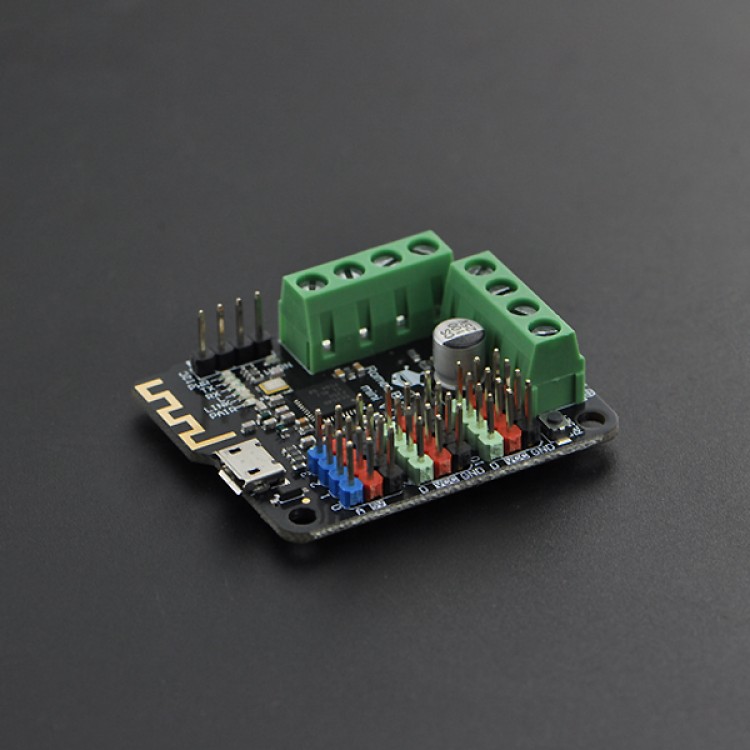

DFRobot Romeo BLE Mini Robot Servo & Motor Control Board ATmega328P Bluetooth4.0 for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$35.99
  • Price in reward points: 360 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.27 $34.55 $33.47 $32.03 Contact US
Quantity:

DFRobot Romeo BLE Mini Robot Servo & Motor Control Board ATmega328P Bluetooth4.0 for Arduino

Introduction:
Remeo BLE mini control board is the mini version of Remeo BLE, which has the same function as the Romeo BLE but smaller size. With 8CH digital interface and 4CH analog interface, which satisfy the input and output of multi-channel servo. Dual 1.5A motor driver, enable it to load mini mobile plateform. Integrate bluetooth 4.0 wireless communication module, gives it the ability of wireless communication and programme.

Specification:
- Microcontroller: ATmega328P
- Bootloader: Arduino UNO
- On-board BLE chip: TI CC2540
- Transmission range: 60m in free space
- Support bluetooth remote update the Arduino program
- Support Bluetooth HID
- Support iBeacons
- Support AT command to config the BLE
- Support Transparent communication through Serial
- Support the master-salve machine switch
- Support usb update BLE chip program
- 8 Digital I/O ports
- 2 PWM Outputs (Pin11, Pin10, Pin9, Pin6, Pin5, Pin3)
- 4 Analog input
- USB interface
- Auto power supply switch
- Two way H-bridged Motor Driver with 2A maximum current
- Size: 48mm*38.5mm

More information: click here
File download: click here
Schematic diagram: click here

Package included:
- Romeo BLE Mini x1
