K20 20KG Low-Profile Underwater Servo Waterproof Servo Motor with 1.5m Cable and 5m Waterproof Depth
$56.32
K12 12KG Low-Profile Underwater Servo Waterproof Servo Motor with 1.5m Cable and 5m Waterproof Depth
$56.32
NANGU K-5 5KG Micro Coreless Servo Digital Servo (Waterproof & 21T 5mm Output Gear) w/ Gear Shift
$35.19

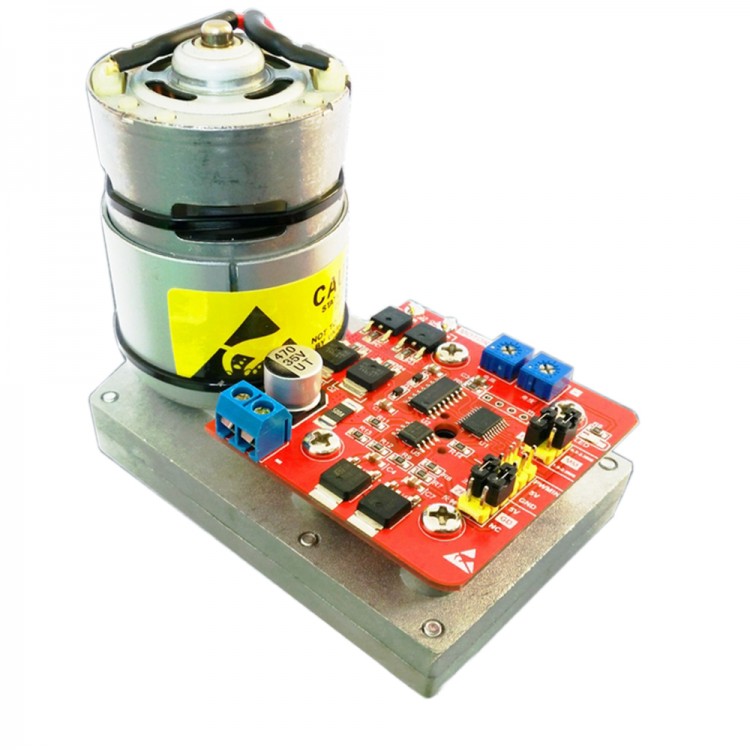

DH-01X Large Torque Sevo DC12V-24V 280kg.cm with 775 Motor for Robot Mechanical Arm
Features:
- Compatible with remote control system like Futaba/JR/SANWA/Hitec
- Can control the servo working in the safe torque, never offline
- 775 Motor
Parameters:
- Operating voltage: DC12V-24V
- No-load current: <500mA
- Maximum torque (actual measurement):
280kg.cm (24V)
2744N.cm (24V)
140kg.cm (12V)
1372N.cm (12V)
- Angular velocity: 0.4s/60 degrees (60 degrees for 0.12s), 24V;
0.8s/60 ~ (60 degrees 0.24s), 12V;
- Rotation angle: 300 degrees MAX, (0 to 300 degrees adjustable electronic limit)
- Input mode: pulse signal (remote control, multiple servo controller, MCU) or analog voltage signal (potentiometer)
- Pulse signal input range: 0.5ms-2.5ms for all "multi-channel servo controller", "Aero modelling 1ms-2ms remote," microcontroller programming "and so on.
- The signal input voltage range: 0V to +5V
- Control accuracy: 0.32 degrees
- Weight: 700g
- Material: steel gear

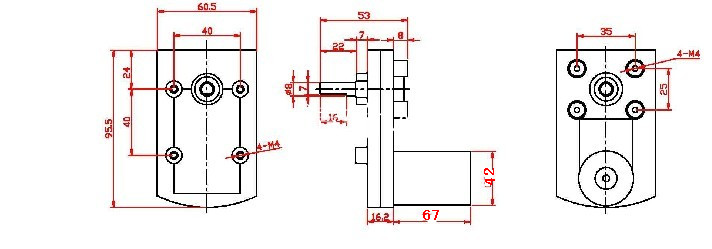

- Size: 95.5mm X 60.5mm X 112.2mm
- For robot,Mechanical Arm etc.
Note: Not including the arm disc.
Package included:
- 1 x Sevo
