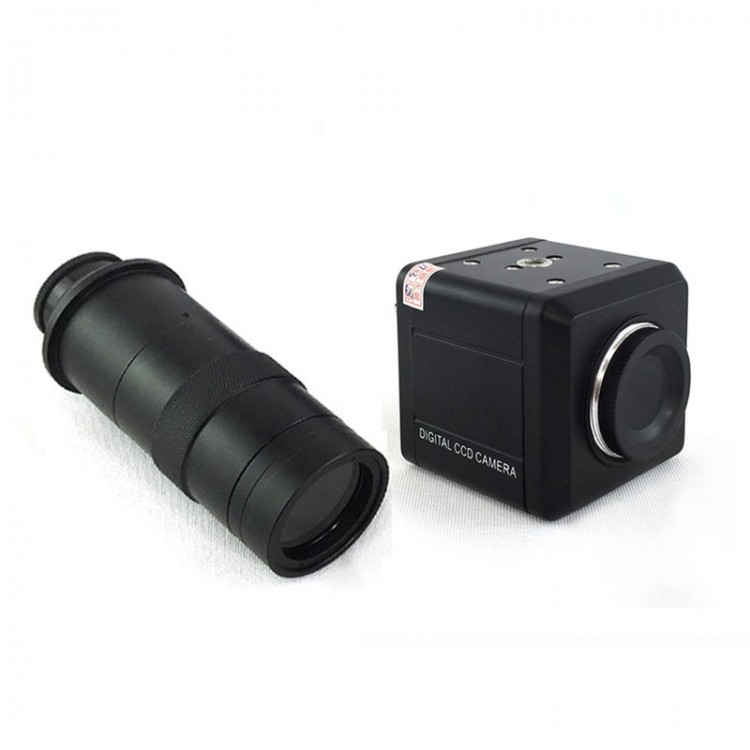

Digital CCD Camera BNC Digtial Microscope Eyepiece 800Lines Industrial Camera + Zoom 130X C-Mount Lens
Parameters of 130X Lens:
- C-Mount Lens
- Optical magnification 0.12 times -2 times (about 8 times -130 times in 21 inch display)
- Working Distance: 55mm-180mm
- Visual Field: 2.4mm-18mm

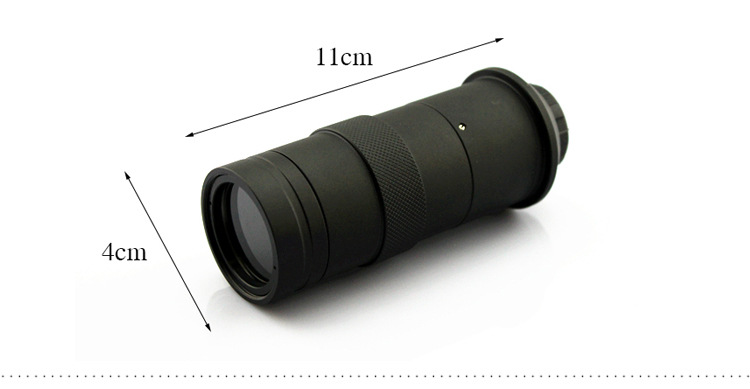

- Size: 115 x 40 mm (L*Dia.)
- Weight: 210g
Parameters of Industrial Camera:
- Resolution: 800 Lines
- Sensor Type: 1/3 " Colorful Camera
- Scanning Mode: Progressive Scan
- Minimum Illumination: 0.01LUX
- Electronic Shutter: Automatic from 1/60 (1/50) to 1/100, 000 Sec.
- Automatic Gain Control: Auto
- Backlight Compensation: Auto
- White Balance: Auto
- Synchronous Mode: Internal
- SNR: more than 52dB (AGC off)
- Video Output: 1.0Vp-p Composite/75Ω
- Power Supply: DC 12V, 40mA
- Working Condition: -10℃ to 55℃, RH85% Max.
- Support system: AV monitor BNC interface

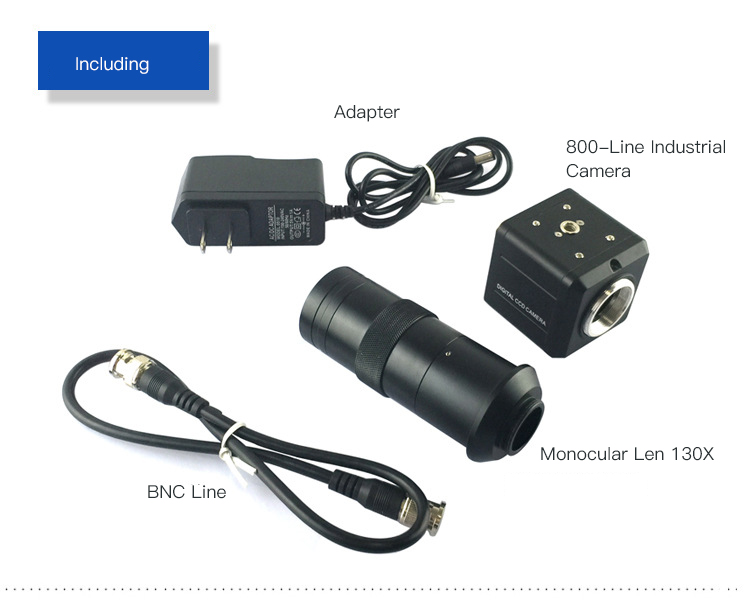

Package Included:
- 1 x 800-Line Industrial Camera
- 1 x Monocular Len 130X
- 1 x BNC Line
- 1 x Adapter
