Digital Paint Coating Thickness Gauge Tester Tool Probe Meter Range 0 to 1300μm
Description:
- The gauge can be used for measuring non-magnetic coatings, such as enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals
- The internal probe work on magnetic induction and the eddy currents measuring principles, detecting the substrates type automatically, calculating the coating thickness and displaying quickly
- Five data groups, readings will be automatically stored to memory for general groups. Each group has individual statistics, alarm limit settings and calibration. User can recall and delete specified readings easily
- User operates via standard menu easily, pressing the CAL button to start calibration
Features:

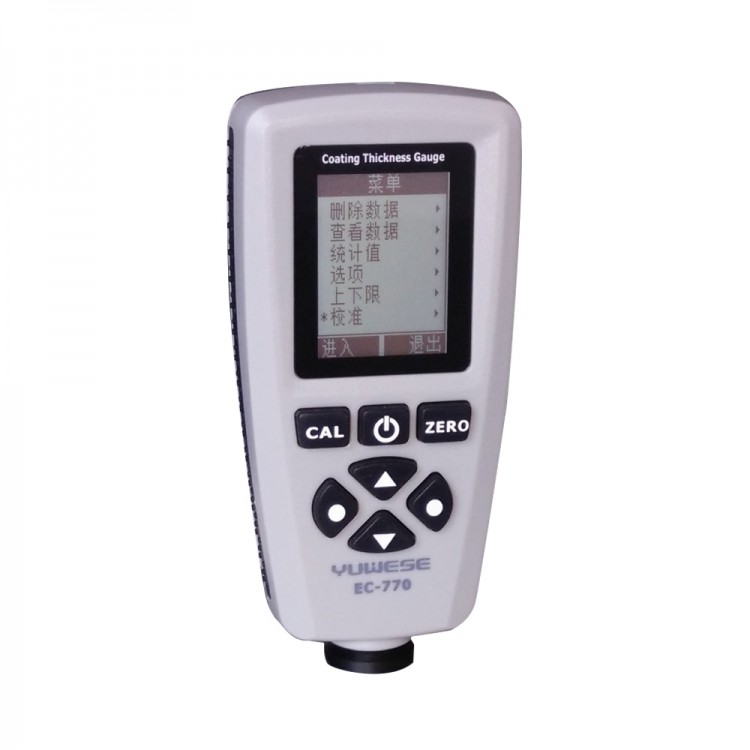

- 128*128 dot matrix LCD display, standard menu operations
- Two measure modes: single and continuous
- Two group modes: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group
- Zero point calibration and multi-point calibration (up to 4 points) for each group
- User can recall, delete specified readings, or delete group readings
- Statistics display: mean, minimum, maximum and standard deviation
- Three probe modes: auto, magnetic and eddy current
- User can set high or low alarm limit for each group
- Power off automatically
- USB interface to data transmission
- Low battery and error indication
Specifications:
- Measuring principle: Magnetic induction (F-probe) and eddy current (N-probe)
- Measuring range: 0 to 1300um (0 to 51.2mils)
- Accuracy: ± (3% of readings+2um)
± (3% of readings+0.078mils)
- Resolution: 0~99.9(0.1um), 100um~999um (1um), 1000um~1300um (0.01mm)
0mils~3.933mils (0.004mils), 3.934mils~39.39mils (0.01mils), 39.4mil~51.2mil (0.1mil)
- Calibration: One to four points calibration, zero calibration
- Data Group: One direct group (readings not be stored to memory), four general groups (readings can be stored), and each group have individual statistics, alarm settings and calibration
- Statistics: No. of readings, mean, minimum, maximum and standard deviation
- Units: um, mm and mil
- Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit
- Minimum curvature radius: convex 1.5mm (59mils) and concave 25mm (984mils)
- Minimum measuring size: Diameter 5mm
- Minimum thickness of substrate: F-probe: 0.5mm (0.02"); N-probe: 0.3mm (0.012")
- Computer interface: Download data via USB interface
- Power supply: Two 1.5v AAA battery
- Operation temperature: 0℃ to 40℃ (32℉ to 104℉)
- Storage temperature: -20℃ to 70℃ (-4℉ to 158℉)
- Size: 110mm x 53mms x 24mm (4.33" x 2.09" x 0.94")
- Weight: 0.65kg
- Power: 2 x 1.5V AAA (included)
Package Included:
- 1 x Coating Thickness Gauge
- 2 x Substrate Materials
- 5 x Calibration Films
- 1 x Warranty Card
- 1 x Toolbox
- 1 x USB Cable
- 1 x CD
- 1 x User Manual
