| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $77.13 | $75.55 | $73.19 | $70.04 | Contact US |

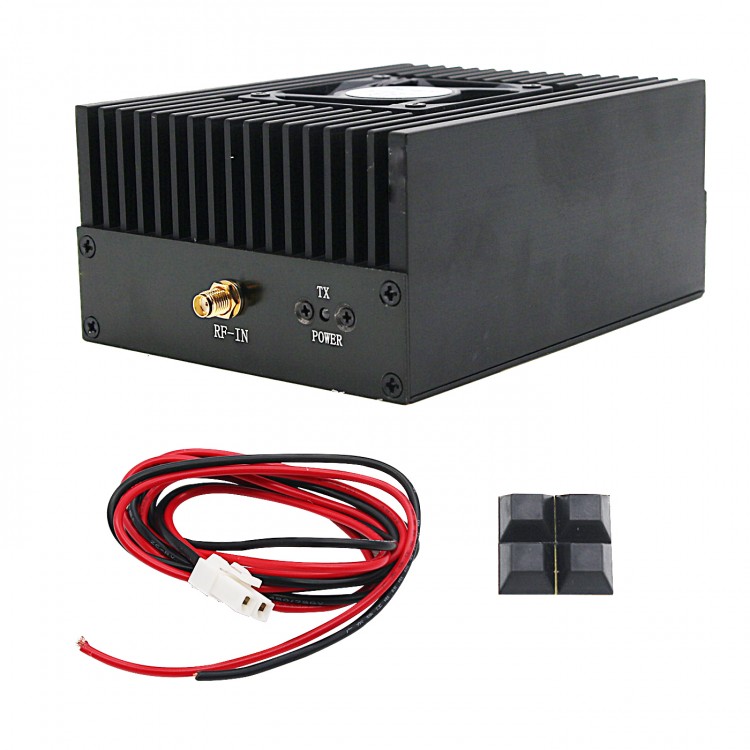

Digital RF Power Amplifier UHF 30W Radio DMR Amplifier FM Power Amp.
Features:
- Elegant Appearance: Black oxidized all-aluminum casing
- Cooling fan works when the temperature is more than 40℃
- RF-IN port, RF-Out port to connect external antenna (antenna not included)
- Dual-color LED Indicator: Green shows standby status; Red shows transmitting status
Parameters:
- Item Name: RF Power Amplifier
- Input Power: 1-5W
- Modulation Mode: DMR, C4FM, DPMR, CW, FSK, P2S, FM
- Transmitting Frequency: 400-470MHz
- Receiving Frequency: 50-1,000MHz
- Working Mode: Half Duplex (Cannot receive and transmit at the same time)
- Receiver Loss: -1DB±0.4
- Output Power: 30W
- Power Supply: DC 10-14V
- Standby Current: 10-30MA
- Cooling Way: Cooling fan works when the temperature is more than 40℃
- Size: 130 x 104 x 60mm (L*W*H)
- Weight: 880g
Package Included:
- 1 x RF Power Amplifier
How to Use it:
