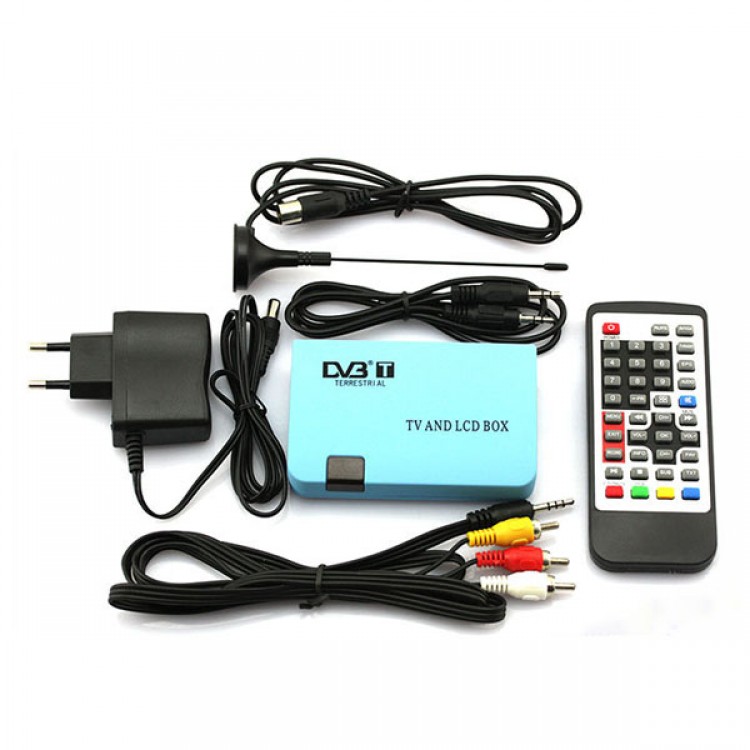

Digital TV Box LCD VGA/AV Tuner DVB-T FreeView Receiver For UK SPC-0002

Digital TV Box LCD VGA/AV Tuner DVB-T FreeView Receiver For UK SPC-0002



Features:

    Brand New and High quality.
    Watch DVB-T TV on PC monitor, no software required.
    This DVB-T LCD TV Box supports VGA/AV output, enables one watch DVB-T TV programs and Listen to the radio on a LCD/CRT monitors or TV set.
    It is also a media center. The USB host function enable one record TV program to a USB storage device for later watching/replaying.
    Easy to use.
    Support DVB-T Protocol(ETS 300 744).
    Digital Terrestrial TV/Radio Program Playing.
    Electronic Program Guide (EPG).
    Support 16:9 Widescreen mode.
    Support teletext.
    Composite Video Output for TV.
    VGA Output for LCD/CRT Monitor.
    Channel auto scan at 6/7/8 MHz.
    Provides multi-channel preview of 9 channels on the same screen.
    Programming of automatic recording.
    Record TV programs in MPEG2 format.
    Multi-Media Player: MP3/JPEG.
    Software with multilingual surface: GB, F, D, I, E, S, P, FIN, NL, TK, CZ, GR, DK.

Specifications:

    Receiving Frequency: VHF 174~230 MHz, UHF 470~862 MHz.
    Channel Bandwidth: 6 / 7 / 8 MHz.
    RF Impedance: 75 Ohm.
    FFT: 2K / 8K.
    Constellations (Modulation): QPSK / 16 QAM / 64 QAM.
    Guard Interval: 1/32, 1/16, 1/8, 1/4.
    Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8.
    Decoding: MPEG2.
    Output: PAL (720 x 576) / NTSC (720 x 480).
    Output Interface: AV / VGA.
    Decoding: MPEG2, Layer I/II.
    Output: Stereo / Mono.
    Main Power Input Voltage: 5V, DC, 1A.
    Main Consumption: Max. 4W.
    Power Supply Input: 100/240V~1.5A 50-60Hz.
    Power Supply Output: 5V, 1A.
    D-SUB Connector for VGA Output.

It can only receive PDTV(Popular Definition Television) and SDTV(Standard Definition Television) signal. HDTV(High-definition TV) signal can’t be received.

I/O Interface:

    Power jack x 1
    Antenna plug x 1 (input)
    Infrared ray receiver x 1 (input)
    AV composite output x 1 (yellow-video, red/white-audio) (output)
    USB Plug x 1

CANNOT Use in U.S.A, Brazil, Mexico, Canada.
