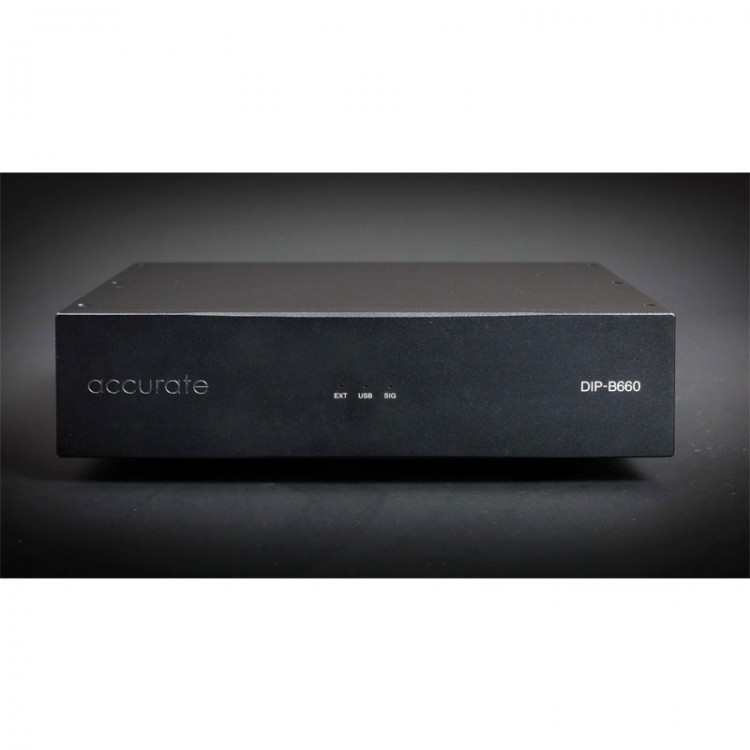

DIP-B660MK2 110V/220V Digital Interface for Amanero Support Clock Output Function Replacement for Hydra Z

DIP-B660MK2 110V/220V Digital Interface for Amanero Support Clock Output Function Replacement for Hydra Z

Description:

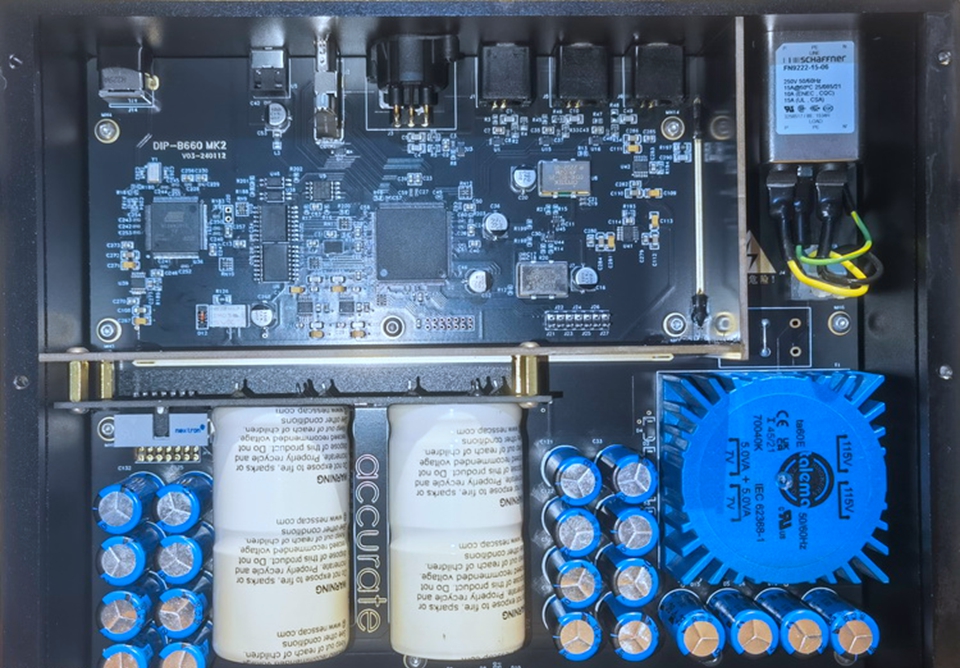

- The newly designed power supply system features two completely independent low ripple and high signal-to-noise ratio linear DC power supply.
- For Philips BC capacitors with over 44000uF provide purification for the entire machine.
- Vehicle grade super-capacitor power supply system. Combining the advantages of batteries and high-speed switching power supplies in one.

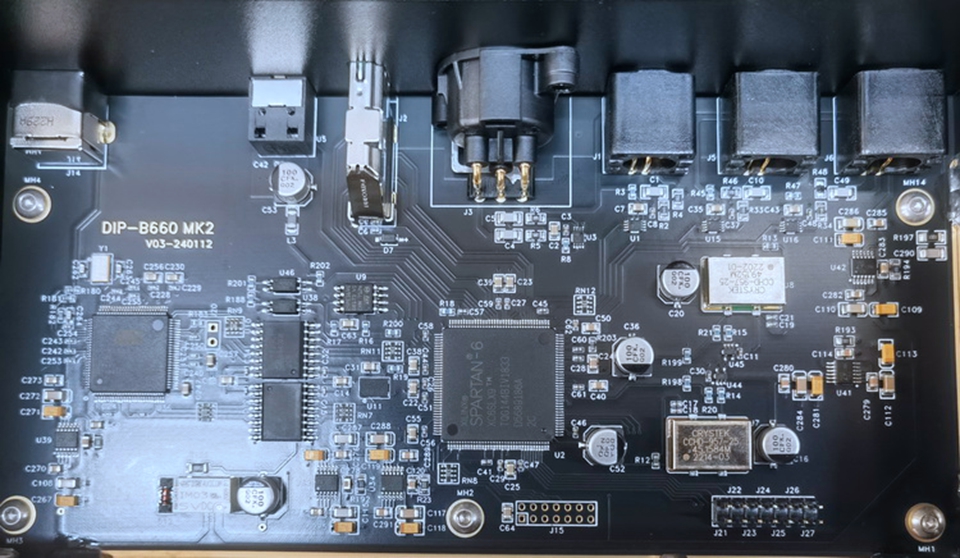

- A 5-channel LT3045 power supply system, combined with a super-capacitor matrix, independently supplies power to USB, digital signal processor, crystal oscillator, and output interface.
- The USB signal receiving and digital signal processing parts are completely isolated, keeping digital signals away from PC interference.
- USB independent power supply design, no need to supply power to the interface from the PC end.
- Two femtosecond level crystal oscillators for Crystek CCHD-957 with frequencies of 45.1584M and 49.152M, serving as the master clock of the system. It also has clock output function and can be connected to DAC with clock input function.
- The complete digital output method can output up to 384kHz PCM and DSD512 when using I2S output, and up to 384kHz PCM and DSD64 DoP when using S/PDIF or AES/EBU output; for Toslink output up to 192KHz PCM.
- Lossless DSD to PCM conversion function; B660 MK2 can automatically convert interfaces other than IIS into PCM output through lossless algorithms for FPGA, enabling seamless playback (decoding) of DSD files with easy support for older decoder models.

Special Reminder:
- The original DSD512 code on this interface can only be supported with ASIO endorsement. For LINUX users who have a special preference for DSD native output, please consider it carefully before purchasing.

Specification:
- Maximum power consumption: 5VA
- AC IN: 110V/220V (optional)
- Product size: 240 x 60 x 194mm
- Net weight: 3.8kg
- Input interface: USB2.0 Type-B

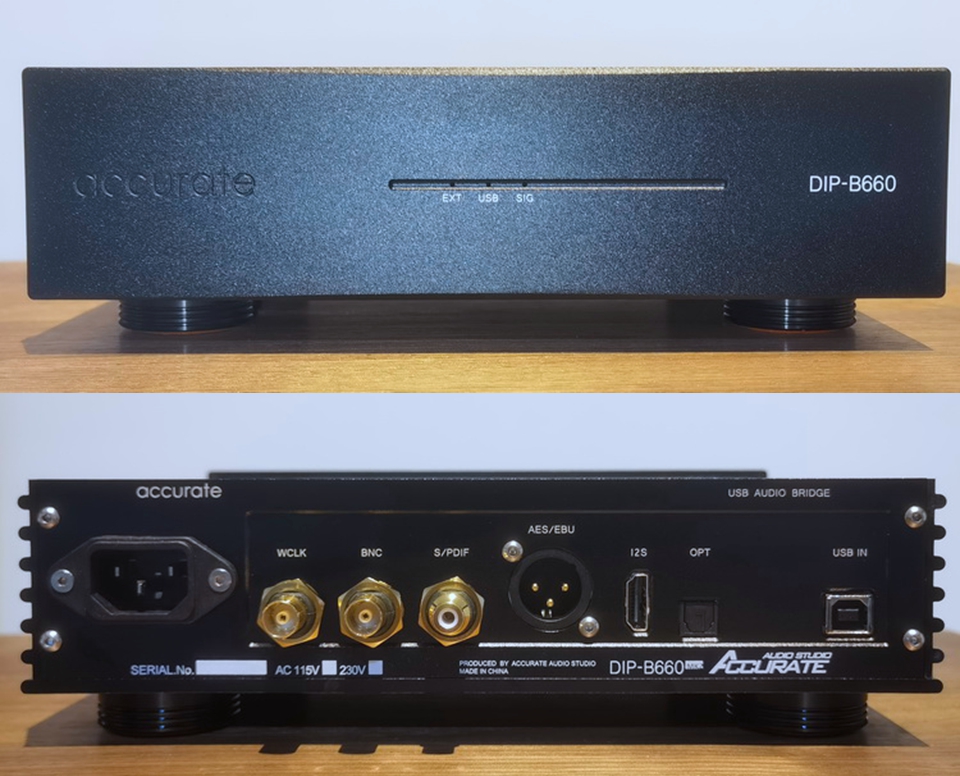

- Output interface: S/PDIF coaxial RCA, AES/EBU, I2S (HDMI-compatible) (ROCKNA wire sequence), TOSLINK
- Supported sampling rate:
  PCM: 44.1kHz - 384kHz
  DSD: 2.8MHz (DSD64)-DoP, native; 5.6MHz (DSD128)-DoP, native; 11.2MHz (DSD256)-native (via ASIO); 22.5MHz (DSD512)-native (via ASIO)
- Bit width: 32bit over I2S output; 24bit over S/DIF, AES/EBU, Toslink

System Compatibility:
- For Native MacOS 10.6 and later
- For Native Linux with UAC2 compliant kernel
- For ASIO, WASAPI, KS, DS drivers for Win XP to Win8 Win10 32/64bit
- Recommended player: for Foobar2000, Audirvana Plus, Jriver, etc.

Package Included:
- 1 x Digital Interface
