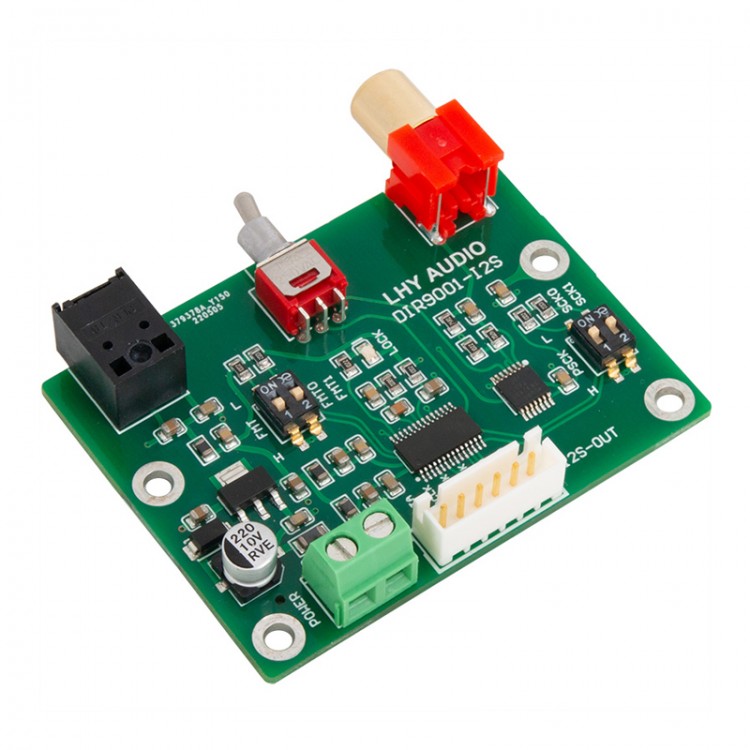

Specifications:
- Maximum sampling rate: 24bit---96khz
- The system clock frequency can be adjusted by 128, 256, 384, 512 fs (256fs by default)
- Input interface: coaxial RCA and optical fiber (coaxial and optical fiber signals can be switched by on-board dial switch)
- Output interface: Standard IIS, left aligned and right aligned. The format can be changed automatically
- Power supply voltage: 5V
| FMT1 | FMT0 | DOUT | SCK1 | SCK0 | SCKO | |
| L | L | 16-bit，MSB-first，right-justified | L | L | 128fs | |
| L | H | 24-bit，MSB-first，right-justified | L | H | 256fs | |
| H | L | 24-bit，MSB-first，left-justified | H | L | 384fs | |
| L | L | 24-bit，MSB-first，IIS | L | L | 512fs |
