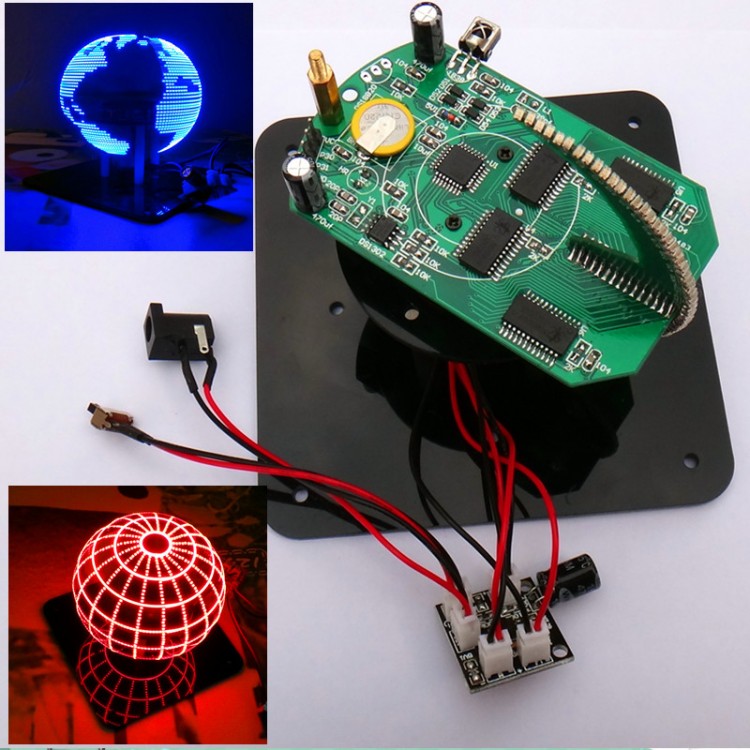

DIY Rotating 56-LEDs POV Clock Parts (Red POV LED Parts Kit Unfinished + TTL Serial Downloader)

DIY Rotating 56-LEDs POV Clock Parts (Red POV LED Parts Kit Unfinished + TTL Serial Downloader)

Description:
- 56-light monochrome rotating LED, controlled by STC15F2K08S2 SMD MCU, the display part uses high-bright 0805 monochrome LED!
- A total of 850 Chinese and English characters can be stored in the 2 sets of texts of via your computer.
- Monochrome text display!
- Can store 30pcs pictures with black words on a white background. Pixels requirement: 64 x (10-200) (W*L).
- High performance motor 370 with high speed for stable display.
- Powered by the new version of the wireless power supply, the rotation is quiet and the life is long!
- Gifts or advertising!
- Power Supply: USB power cable is included. It support 5V power supply from computers, mobile phone chargers, and power banks. Or you can DIY to make it powered by batteries. Use 4 1.5V dry batteries in series or use two 3.7V lithium batteries in series! (Batteries are not included)

Note:
- The MCU is soldered, and the relevant programs and subtitles are downloaded. The other components are soldered by the buyer. LED lamps and resistors are available in a 0805 package. LED lamp welding is difficult, please purchase according to your needs.
- USB to TTL Serial Downloader: It is included. Users can modify the displayed content through the PC software provided by our store, and then download the content using the USB to TTL serial port downloader.
- Some buyers said that the CH340 TTL serial port cannot be used to download the rotating LED microcontroller program. It can only be used to change the word!

Parameters:
- Rotating Main Board: 8.1cm (L)
- Rotating Diameter: 9.2cm
- Displayed Height of Side Panel: 7.5cm
- Side circle monochrome 56-LEDs display
- Acrylic Base Board: 11 x 11cm (L*W) (Excluding the size of motor shaft and coil part)

Click Video to Display:
http://v.youku.com/v_show/id_XOTE3MzAxNjYw.html

Main Functions:

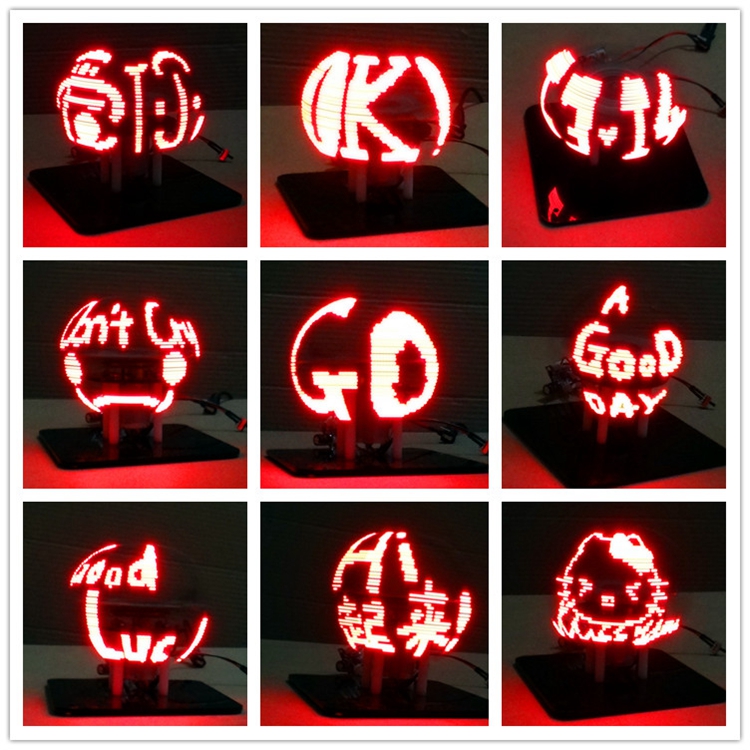

- Mode 1: 2 Groups of Text Scrolling Cycle Display. The scrolling can be stopped by the remote control, and the displayed text can be modified by the host computer software.
- Mode 2: Clock and Date Display. When using backup batteries, it can be set by the remote control or the time can be calibrated by the word change software. It is convenient to set the time. (Batteries are not included)

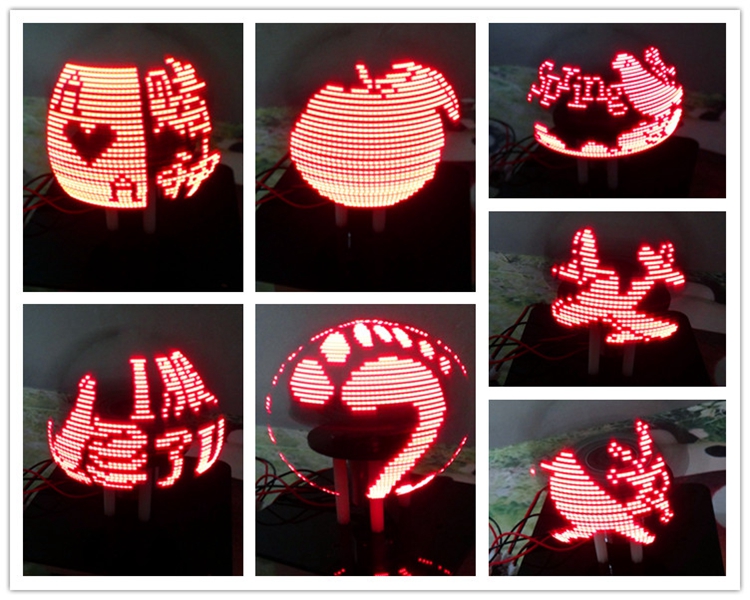

- Mode 3: Picture Display. You can scroll through the pictures continuously, or you can display the still pictures separately! Select the mode via the remote control. The picture width must be 64 pixels and 10 to 200 pixels long.
- Memory Mode: What the mode is before power off, that mode will stay when power on again

Note: Standard information for this kit: schematic (PDF format), component list (PDF format), chip data (PDF format), PC software, HEX download file. The HEX file and the host computer software are encrypted and can only be used with the single-chip purchased. Only the first data can be used, please keep it by yourself.

Package Included:
- One Set of Red POV LED Parts Kit Unfinished + TTL Serial Downloader
