DL24P 180W Electronic Load Voltmeter Ammeter Battery Capacity Power Aging Discharge USB Tester

DL24P 180W Electronic Load Voltmeter Ammeter Battery Capacity Power Aging Discharge USB Tester

Attention:
- Batteries are not included.
- Exceeding the specified power, the product will be burnt out.
- 150W/180W power means: according to the power calculation formula P = UI (power = voltage x current).
- When inputting 10V, discharge current is about 18A. When inputting 20V, discharge current is about 9A. When input 30V, about 6A discharge current.

Product Description:
This electronic load can measure the voltage, current, power, capacity, power and discharge time of various batteries (batteries are not included), DC power supplies, data lines, power banks, chargers, and AC/DC power adapters, internal resistance, load capacity and other properties. Its function is more than that of electronic load meter of hundreds of US dollars, and its volume is relatively smaller. It is more more flexible to use. Thanks to its lower price, it is very suitable for manufacturers to verify, intimate instruments for digital enthusiasts, engineers and other experiments.

File Download Way:
1. Download user manual, PC software installation instruction and PC software and APP for Android: http://www.mediafire.com/folder/m09i9bjv8703d/DL24-DL24P
2. For IOS APP: search E_test on APP store for iPhone to download
3. For Android APP: search E-test on APP store for Google play to download

Features:
- Large color screen blue digital transmission curve version high-power tube digital load meter.
- Support discharge aging test, which can be used to test the voltage, current, power, capacity, electricity, temperature, discharge resistance, time-limited discharge settings, stop voltage setting and other parameters and operation of various power supplies such as USB chargers, mobile power banks, battery and battery capacity, power adapters, etc.
- Support Bluetooth wireless connection and wired computer connection modes.
- Support four kinds of online APP (support for Android, Apple, PC computer Bluetooth wireless online APP and data wired online APP)
- Four discharge modes: constant current, constant power, constant resistance, constant voltage.
- High-power and large-discharge tube discharge test is used internally, summarizing the principle and evolution of hundreds of large-scale instrumentation circuits, integrating all major advantages in one, and displaying a variety of parameters on the screen of discharge aging, convenient and fast test, and powerful function!
- 180W high power. Strong performance, can be used for various discharge and aging detection.
- 4 Operating Modes: CC-constant current operation; CV-constant voltage operation; CW-constant power operation; CR-constant resistance operation.
- Intelligent temperature control fan: high-power, long-life cooling fan.

Technical Parameters:
- Test voltage: 2~200V
- Working current: 0.2~20A
- Constant load adjustment rate: +/-3%+3 bytes
- DL24 discharge power: voltage x current <150W
- DL24P discharge power: voltage x current <180W

Attention:
- Actual operable current is limited by the maximum power. Please follow the law of conservation of energy to adjust current.
- Built-in over current, over temperature and over power safety protection functions. If the protection interface pops up, please pay attention to the parameter adjustment. To adjust to the maximum power discharge, you can first slowly adjust the preset value and smooth the adjustment in the open discharge, so as to achieve the adjustment to the maximum power discharge.

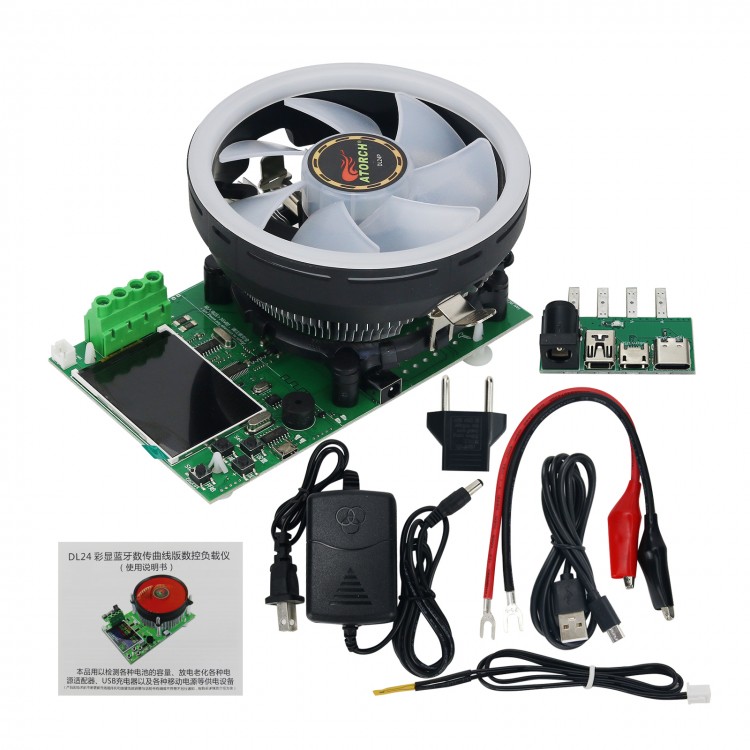

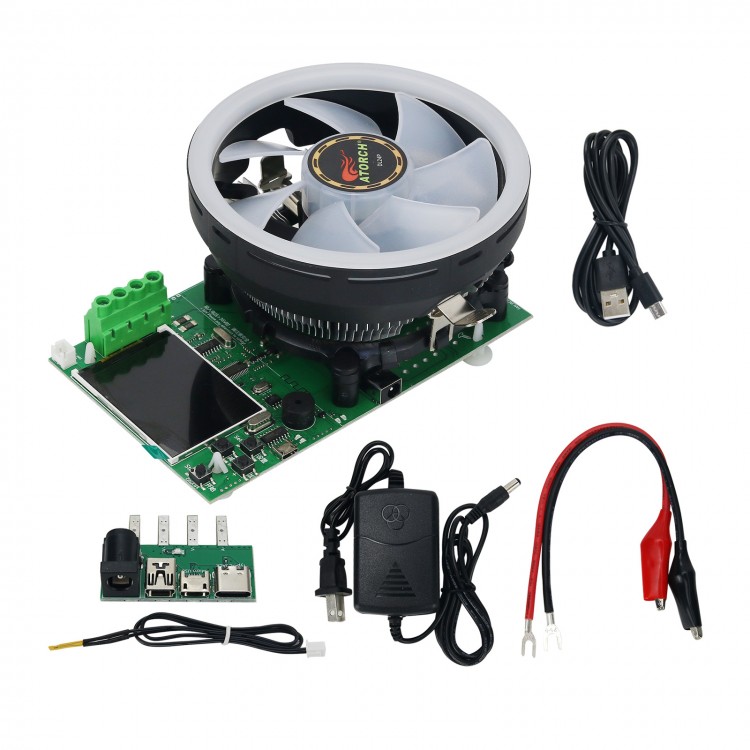

Package Included:
- 1 x Electronic Load Tester
- 1 x Crocodile Clip Cable Black & Red Wires
- 1 x DC Power Supply
- 1 x 2M PC Computer Online Cable
- 1 x Temperature Probe Sensor

Note:
- Batteries are not included.
- Other items pictured are not included, for demonstration purposes only.

Four Operating Modes:
- CC: Constant current operation
- CR: Constant resistance operation
- CP: Constant power operation
- CV: Constant voltage operation


Protection Interfaces:
1.Overload protection
2.Over-current protection
3. High temperature protection

Chinese & English Background Setting Interfaces:


Compatible with Current Mainstream Four Online APPs:
- For Android/IOS/PC system online testing
‘’

Applications:


User Manual:
Manuals for DL24 / DL24P are the same. The pictures on the manual are DL24. It is for reference only. Please receive the actual products. Thank you.
