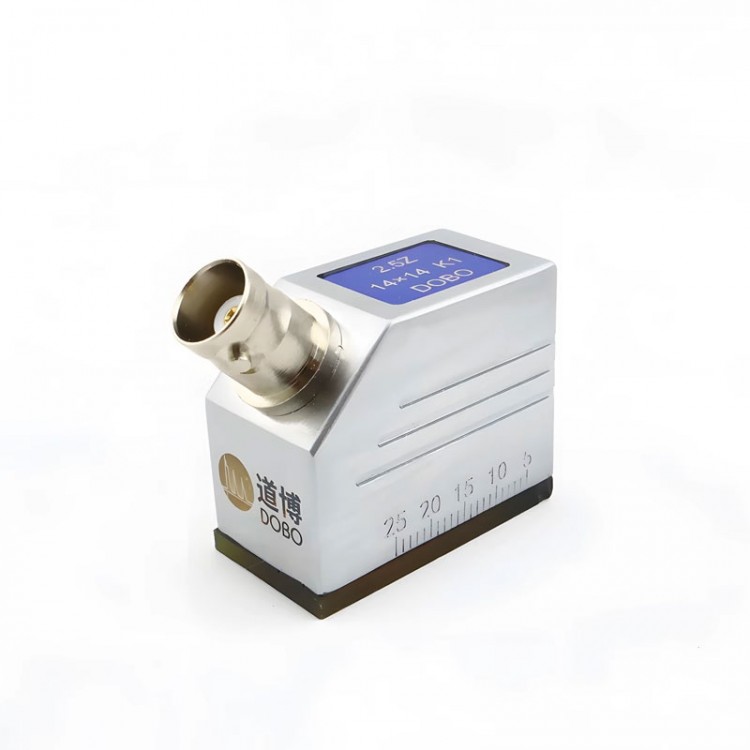

DOBO 2.5Z14x14K1 2.5MHz 14mmx14mm Angle Probe Angle Beam Probe for Ultrasonic Flaw Detectors

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.26
  • Price in reward points: 313 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.63 $30.01 $29.07 $27.82 Contact US
Quantity:

DOBO 2.5Z14x14K1 2.5MHz 14mmx14mm Angle Probe Angle Beam Probe for Ultrasonic Flaw Detectors

Angle Beam Probe:

- Specifications: 2.5Z 14x14/5Z 14x14
- Frequency: 2.5MHz/5MHz
- Crystal size: 14mm x 14mm/0.6" x 0.6"
- K value (angle of refraction): K1/K1.5/K2/K2.5/K3/45°/60°/70°
- Socket model: Q9
- Housing material: Metal
- Dimensions: 35mm x 23mm x 28mm/1.4" x 0.9" x 1.1"

Optional Types:

- 2.5Z14x14K1 (default), 2.5Z14x14K1.5, 2.5Z14x14K2, 2.5Z14x14K2.5, 2.5Z14x14K3, 2.5Z14x14A45°, 2.5Z14x14A60°, 2.5Z14x14A70°, 5Z14x14K1, 5Z14x14K1.5, 5Z14x14K2, 5Z14x14K2.5, 5Z14x14K3, 5Z14x14A45°, 5Z14x14A60°, 5Z14x14A70°, 2.5Z9x9A70°, 2.5Z10x10K1, 2.5Z10x10K2, 2.5Z10x10 A60, 2.5Z10×10 A70, 2.5Z10×10 A45, 2.5Z 9x9 K2, 5Z8x12K2, 5Z8x12K3, 5Z8x12K1.5, 5Z8x12K1 and 2.5Z10x10K2.5
- Attention: 2.5Z14x14K1 will be delivered by default. If you need other parameters, please contact us before placing an order or leave a message while purchasing.

Package Included:
- 1 x Angle Probe

Packaging Details:
- G.W.: 0.3kg
