Downward Welding Pin 7020 Minimum System Board 512MB DDR3 4Gbit Development Board for Xilinx FPGA ZYNQ

Availability: In stock, usually dispatched in 1 business day

  • Price:$81.05
  • Price in reward points: 811 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $79.43 $77.81 $75.38 $72.13 Contact US
Quantity:

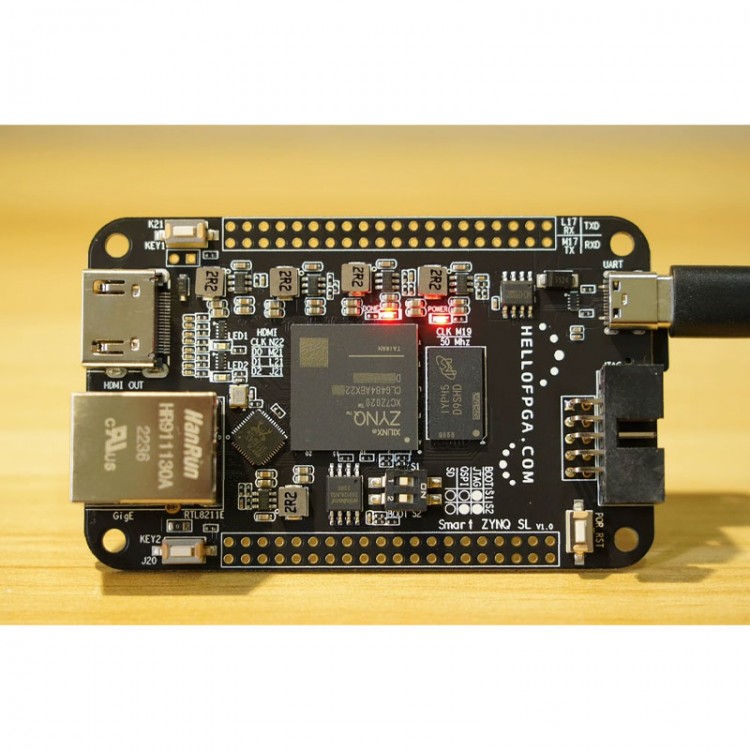

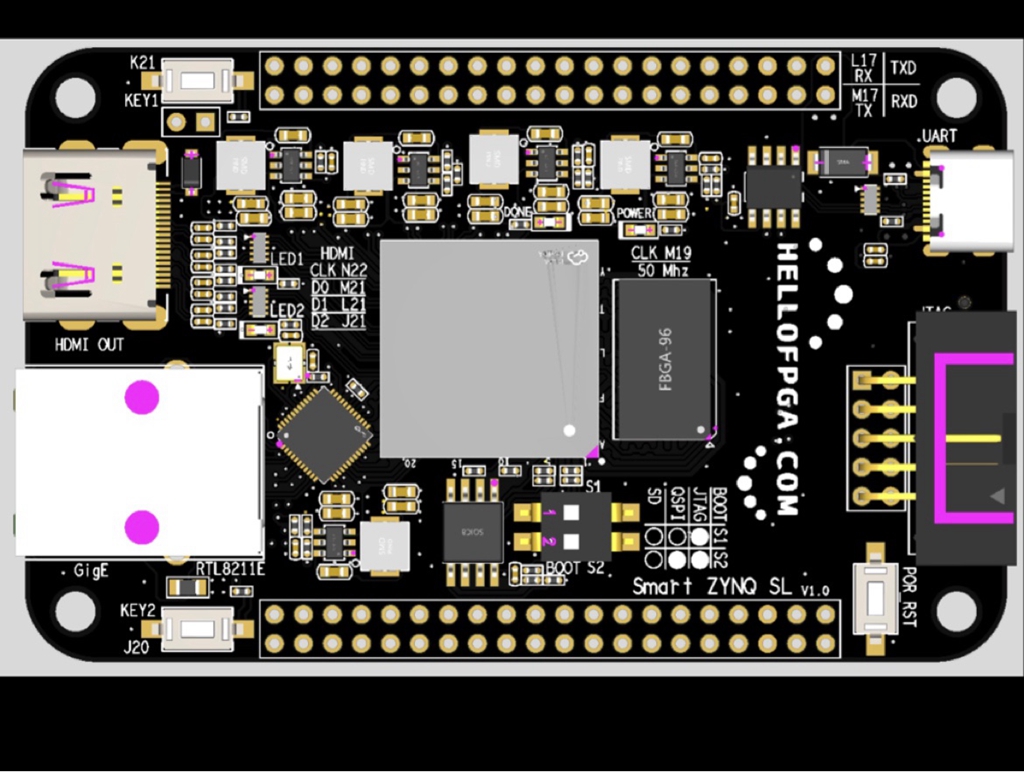

Downward Welding Pin 7020 Minimum System Board 512MB DDR3 4Gbit Development Board for Xilinx FPGA ZYNQ

Board Instruction:

- Main chip for ZYNQ upgraded to 7020 (new industrial grade)
- 512MB DDR3 (4Gbit)
- TF card slot (can be responsible for TF start)
- 128Mbit (16MB) QSPI FLASH (can be started)
- One channel EEPROM 2KB (PL)
- Two LED lights (PL)
- Two keys (PL) + one key to control system POR reset
- One channel UART (connected to the PL) TYPE C port
- Lead 68 channel GPIOs (all are PL end leads) (34 groups) are all connected in pairs using differential lines, and the differential lines are equal in length.
- One side of the BANK is independently powered, and the BANK voltage can be adjusted through the resistance
- Gigabit Ethernet (connected to the PL end)
- HDMI output interface
- PL is connected with 50M active crystal oscillator, HDMI and USB, and ESD electrostatic protection devices

Package Included:
- 1 x Development Board

Note:
- The downloader is not included, you need to prepare a external downloader for Xilinx by yourself.
