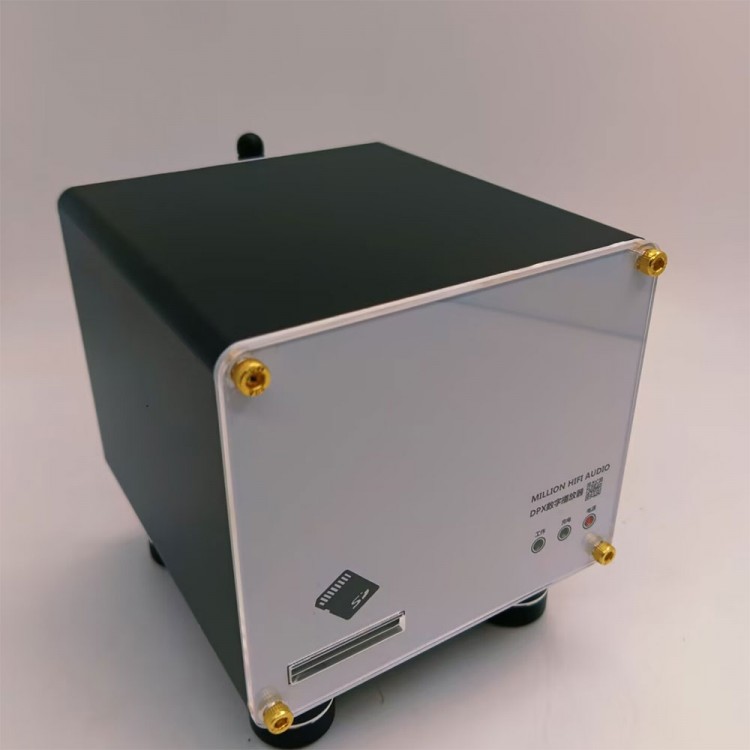

DPX Reference Level Digital Audio Source SD Card Digital Turntable with Split Wireless Console

DPX Reference Level Digital Audio Source SD Card Digital Turntable with Split Wireless Console

Description:
- The DPX digital turntable uses an SD card as the file carrier and a split wireless console for easy and stable operation, without the need for a network connection.
- The device is equipped with a large capacity low internal resistance super-capacitor. When powered on, it takes several minutes to charge before entering operation. Please use a power supply of 6-9V and greater than 1.5A.
- The device supports for WAV, FLAC, DSD, and MP3 audio formats. When using, please create a folder on a FAT32 memory card to place album songs. Do not mix different formats of audio or sampling rates and place them in the same folder.
- Please ensure that your DAC decoder supports DSD decoding when playing DSD files. Due to matching issues with the mute mechanism, there may be some popping sounds when switching DSD files, which is normal. The device supports for DSDIO (non compressed class), DSF, DFF format DSD files, and DSD64 sampling rate can be set to DOP output (also requires DAC support for decoding).
- The device has HDMI-compatible and SPDIF coaxial outputs, and the onboard SI5341 PLL chip requires an external 10MHz clock to work. SI5341 is a top-level clock conversion chip that can maximize the performance of low phase noise and low jitter clocks.

Specification:
- Host size: 110 x 100 x 110mm
- Console size: 110 x 90 x 40mm
- Using voltage: 6-9V/1.5A or above, DC5521 socket

Package Included:
- 1 x Digital Turntable
- 1 x Console
- 1 x 9V Power Supply
