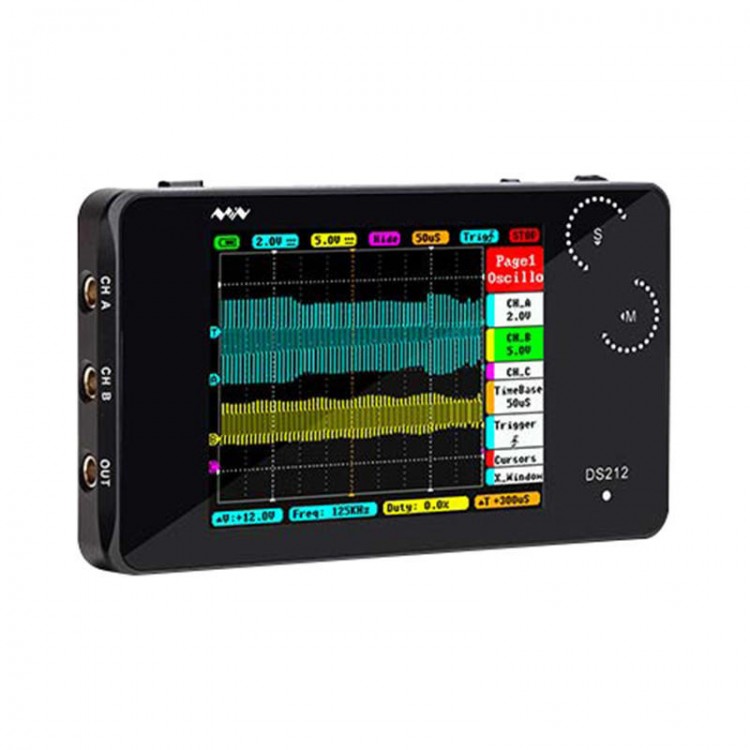

DS212 Mini Oscilloscope Portable Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb Wheel

DS212 Mini Oscilloscope Portable Handheld Bandwidth 1MHz Sampling Rate 10MSa/s Thumb Wheel

Features:
- With rising / falling edge trigger mode
- Store file as BMP, DAT, BUF, or CSV format
- Math waveforms: -A, -B, A + B, A - B, RecA, RecB, RecC
- Synchronous mode: auto, normal, single, none, scan
- Inbuilt 8MB U disk storage for waveform data and images
- Modes of vertical precise / horizontal precise measurement and triggering threshold
- Auto measurement: frequency, cycle time, duty cycle, DC RMS voltage / Vpp / Vmax / Vmin / Vavg
- Inbuilt signal generator / 10Hz - 1MHz square wave ( duty adjustable ) or 10Hz - 20KHz sine / square / triangle / sawtooth wave
- Charge 1 hour for 3 hours use
- Built-in 500mAh lithium-ion battery, adopting micro USB port charging

Specifications:
- Storage: Inbuilt 8MB U disk storage for waveform data and images
- Battery: Internal 500mAh Lithium battery, external USB port
- Display: Color TFT LCD display (320X240 pixels)
- Maximum sampling rate: 10MSa/s
- Analog bandwidth: 1MHz
- Maximum sample memory depth: 8K
- Analog input impedance: 1MΩ
- Maximum input voltage: ±40V(X1 probe)
- Coupling: AC/DC
- Vertical sensitivity: 20mv/Div~10V/Div (in 1-2-5 sequence step)
- Horizontal sensitivity: 1uS/Div~2S/Div(in 1-2-5 sequence step)

Package Included:
- 1 x Mini Oscilloscope
- 2 x MCX Probes
- 1 x Data Cable
- 1 x Safety Instruction
- 1 x Hex Key
