DSCope Portable Logic Analyzer 50M Bandwidth 200M Sampling USB Power Supply 16G Plus Version

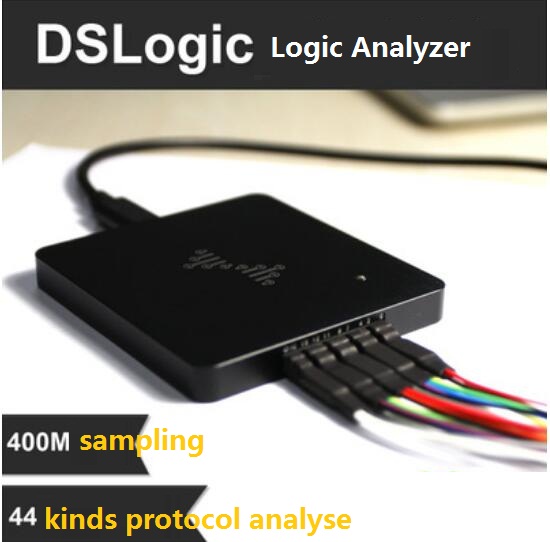

Product Description:DSCope is a USB-based logic analyzer. The sampling section is also based on the Xilinx Spartan-6 FPGA + SDRAM architecture, which uses a differential signal and variable gain amplifier architecture to provide 50MHz analog bandwidth and up to 400MHz single channel sampling frequency.

DSLogic Plus Version Specifications:
- Mode:stream+buffer
- Buffer mode:
 400M@4 channels
 200M@8 channels
 100M@16 channels
- Maximum sampling rate:
- stream mode:
100M@3 channels
50M@6 channels
25M@12 channels
20M@16 channels
- The max depth:16G@stream;256K@buffer
- Hardware storage:256Kbits
- Trigger:Simple trigger+
- Sixteen level hardware trigger+
- Protocol trigger
- Threshold value:Fixed threshold:0-5v adjustable
- Voltage range:+-30V
- Input impedance:250K||7pF
- State sampling:the max 50M state sampling

Product Details:
- The max sampling rate:400MHz
- It can collect and observe digital signal within 100MHz.
- Overvoltage protection,electrostatic protection,long life
- Support double mode:stream mode,USB real-time transmission to PC,ultra large sampling depth;buffer mode,wide bandwidth hardware storage,ultra high sampling rate
- Adjustable threshold value:support various voltage:1.2V/1.8V/2.5V/3.3V/5.0V

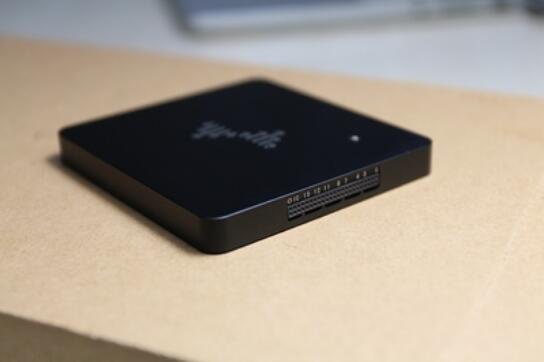

- All metal shell
- 360 degree noise shielding,quick heat dissipation,circuit operation is more stable.

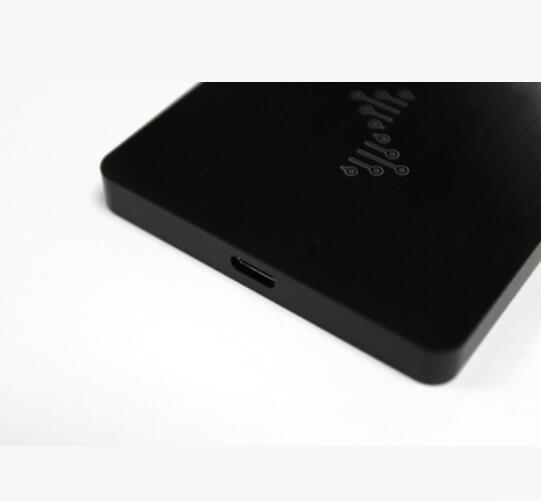

- USB TYPE-C interface
- The max support 16G depth
- 100M sampling rate can collect 160 seconds wave form
- 20M sampling rate can collect 13minutes wave form
- 1M sampling rate can collect 4 hours wave form
- Window system(xp/vista/win7/win8/win10)

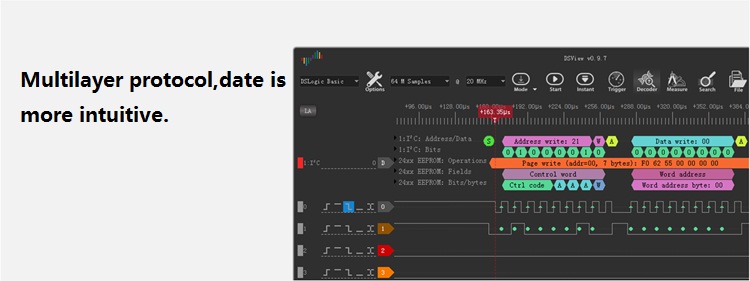

- Multilayer protocol,date is more intuitive
- Support Protocol content triggering

DSLogic different from the logic analyzer features other entry level are mainly the following aspects:
256M bit onboard memory to ensure that real-time sampling data up to 1.6Gbps storage. Entry-level logic analyzer Metropolitan bandwidth or memory depth indicators compromise, while greatly reducing the usefulness of such a logic analyzer. For example, real-time transmission through saleae USB memory to store data utilizing the host computer, a good solution to the problem of memory depth, but because of USB bandwidth is limited, can only reach 200-300Mbps sampling bandwidth; Open Workbench Logic Sniffer is used the internal FPGA BRAM as storage space, also has a sampling 1.6Gbps bandwidth, but the memory depth is only 216Kbit.

Package Contents:
- 1 x DSLogic Plus Main unit
- 1 x Type-c USB
- 5 x  Winding displacement (Teflon shielded wire)

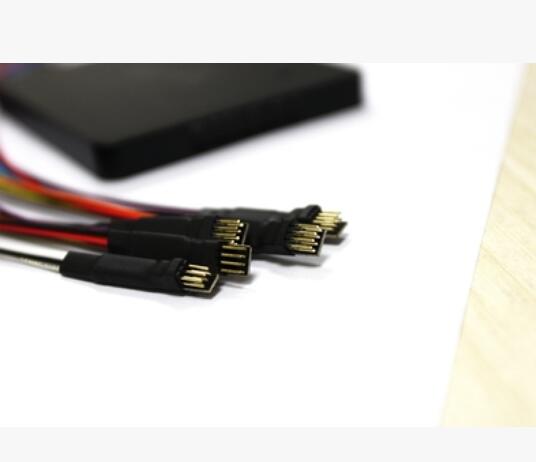

- 16 x Signal clips (Color random)
