DSO112A Handheld Digital Oscilloscope 2MHz 5Msps TFT Touch Screen with BNC-Clip Cable BNC Probe

Availability: Out Of Stock

  • Price:$46.31
  • Price in reward points: 463 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.38 $44.46 $43.07 $41.22 Contact US
Quantity:

DSO112A Handheld Digital Oscilloscope 2MHz 5Msps TFT Touch Screen with BNC-Clip Cable BNC Probe

Specification:
Analog bandwidth: 0–2MHz
Maximum real-time sampling rate: 5Msps
Vertical Sensitivity: 2mV/Div–20V/Div, total 12 gears (advance by 1-2-5 mode)
Horizontal time base range: 1μs/Div–50s/Div, total 21 gears (advance by 1-2-5 mode)
Maximum input voltage: 50Vpk (100Vpp)
Record length: 512/1024 points optional
Input impedance: 1MΩ
ADC accuracy: 8Bit
Coupling method: DC/AC
Trigger mode: automatic (AUTO), normal (NORM) and single (SING)
Trigger edge: rising, falling
Trigger source: internal and external
External trigger voltage range: 0-15V
Size: 70 x 80 x 18 mm
Weight: 85g (without probe)
Frequency meter function: directly display the signal frequency

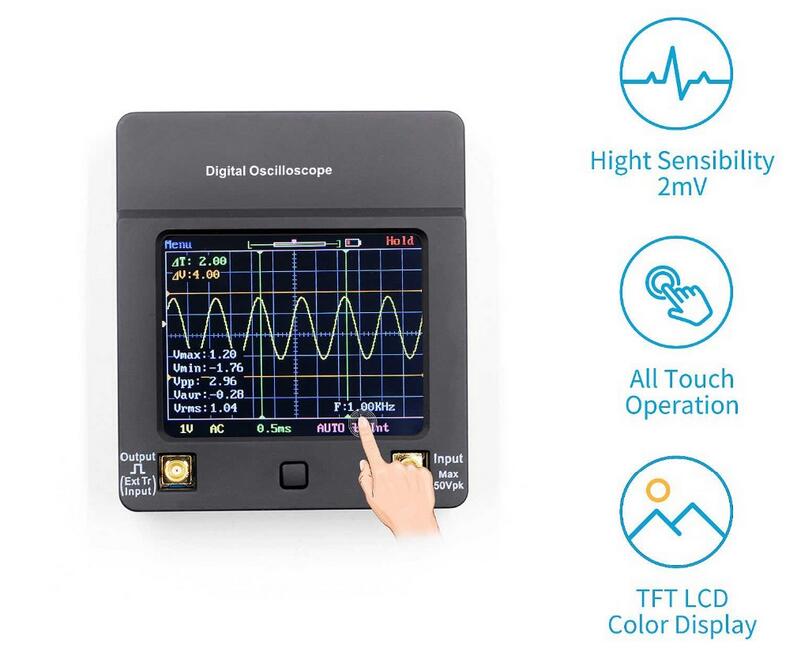

Voltmeter function: directly display the maximum value, minimum value, peak-to-peak value, average value and true effective value of the waveform signal

Features:
-Waveform display can be frozen at any time (HOLD function).
-Unique scrolling slow signal display; can display the signal completely continuously, unlike the SCAN mode which will cause the signal display to be discontinuous.
-With time cursor, which can automatically calculate the time difference and display.
-With voltage cursor, which can automatically calculate and display the voltage difference.
-Come with 3.3V square wave test signal, the frequency can be set to Hz/10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/440Hz.

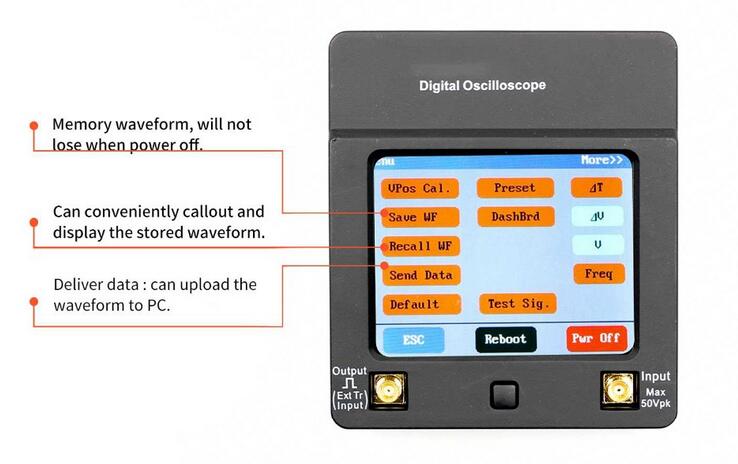

-Able to save/recall acquired waveform.
-PC upload of waveform data.
-Battery/USB power supply.
-Built-in smart charger.

Note:
When the time base is selected within 1μs-5μs, the trigger function will be stopped, and the waveform will appear to walk. At this time, as long as the waveform is frozen with the HOLD function, stable observation can be achieved without affecting the observation effect at all.

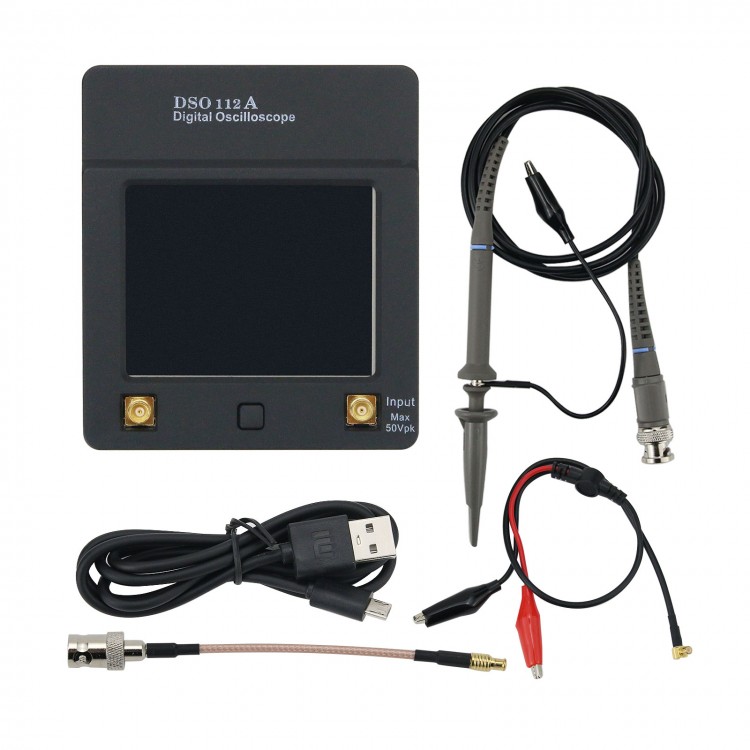

Package List:
-1 x Oscilloscope
-1 x BNC-Clip Cable
-1 x BNC Probe
-1 x Conversion Cable
-1 x USB Cable
