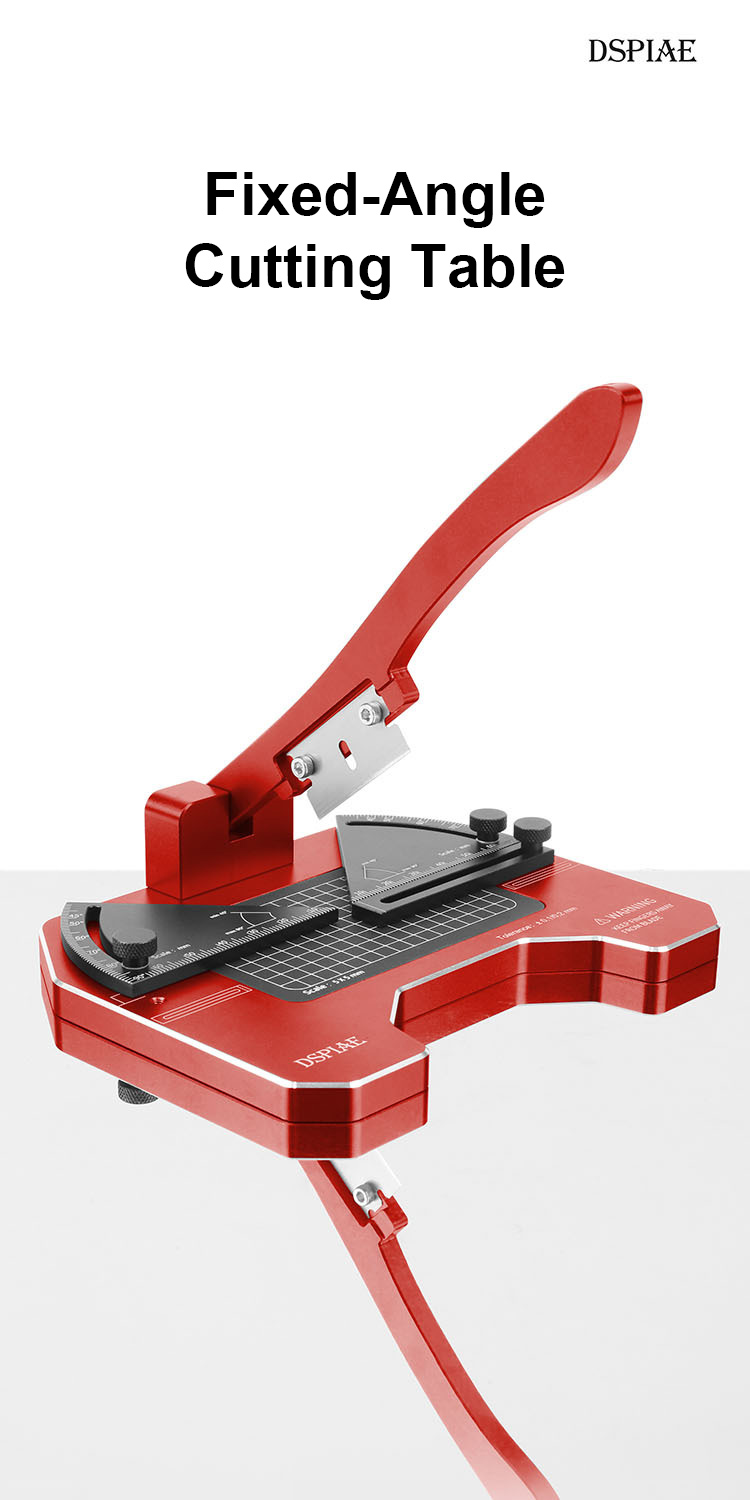

DSPIAE AT-CJ Angle Cutting Station Fixed-Angle Cutting Table for DIY & Plastic Sheet and Rod Cutting

DSPIAE AT-CJ Angle Cutting Station Fixed-Angle Cutting Table for DIY & Plastic Sheet and Rod Cutting

Features:

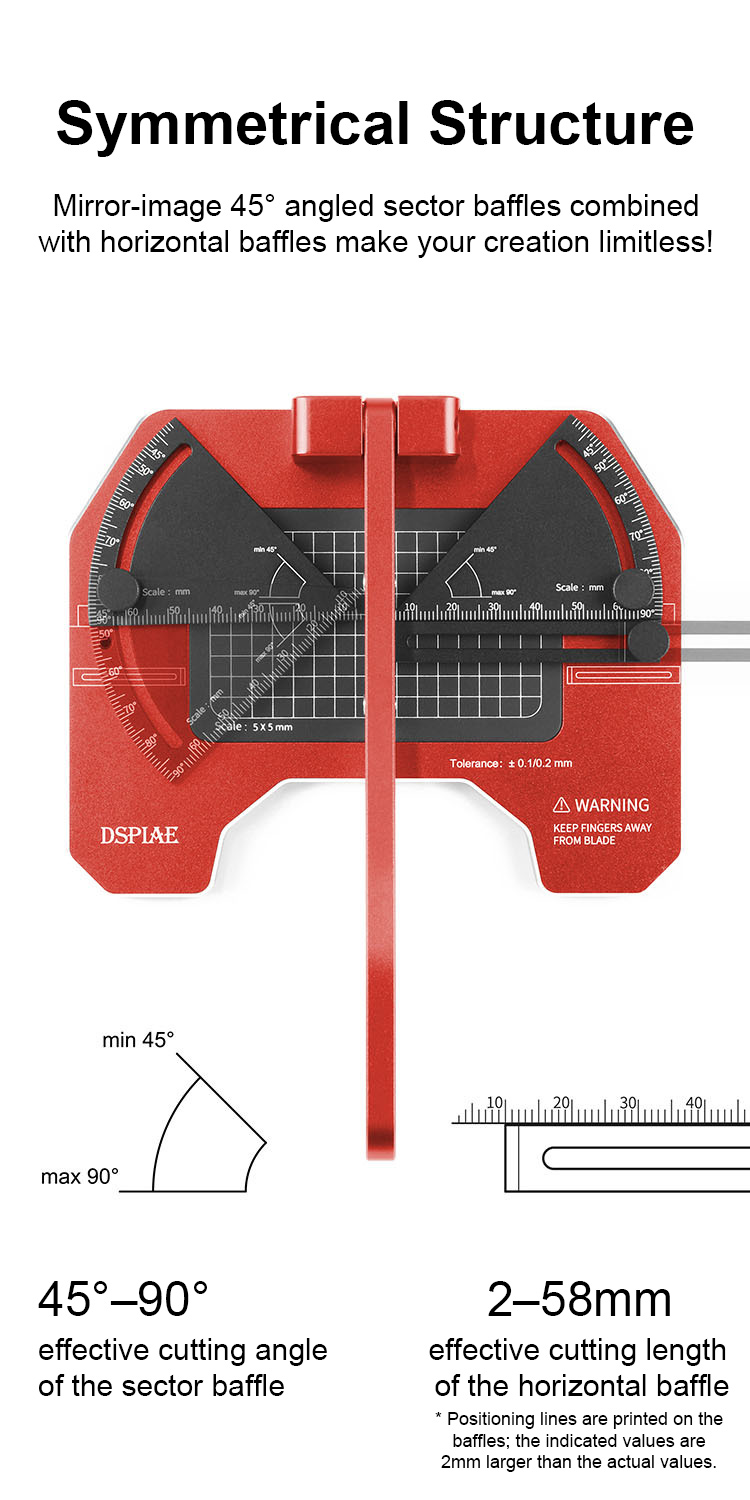

Symmetrical Structure
* 45°–90° effective cutting angle of the sector baffle
* 2–58mm effective cutting length of the horizontal baffle: Positioning lines are printed on the baffles; the indicated values are 2mm larger than the actual values.
* 38mm effective cutting width

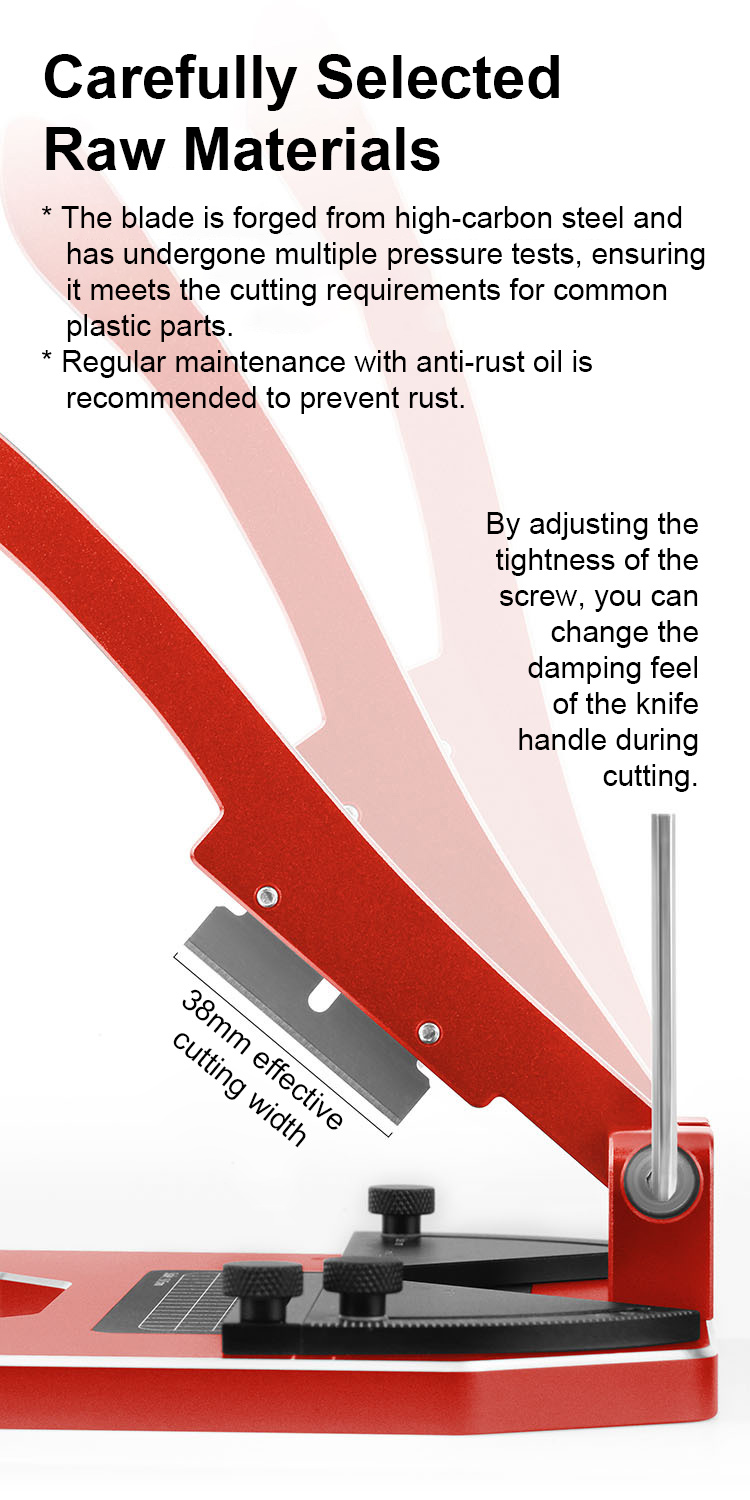

Carefully Selected Raw Materials
* The blade is forged from high-carbon steel and has undergone multiple pressure tests, ensuring it meets the cutting requirements for common plastic parts.
* Regular maintenance with anti-rust oil is recommended to prevent rust.
* By adjusting the tightness of the screw, you can change the damping feel of the knife handle during cutting.

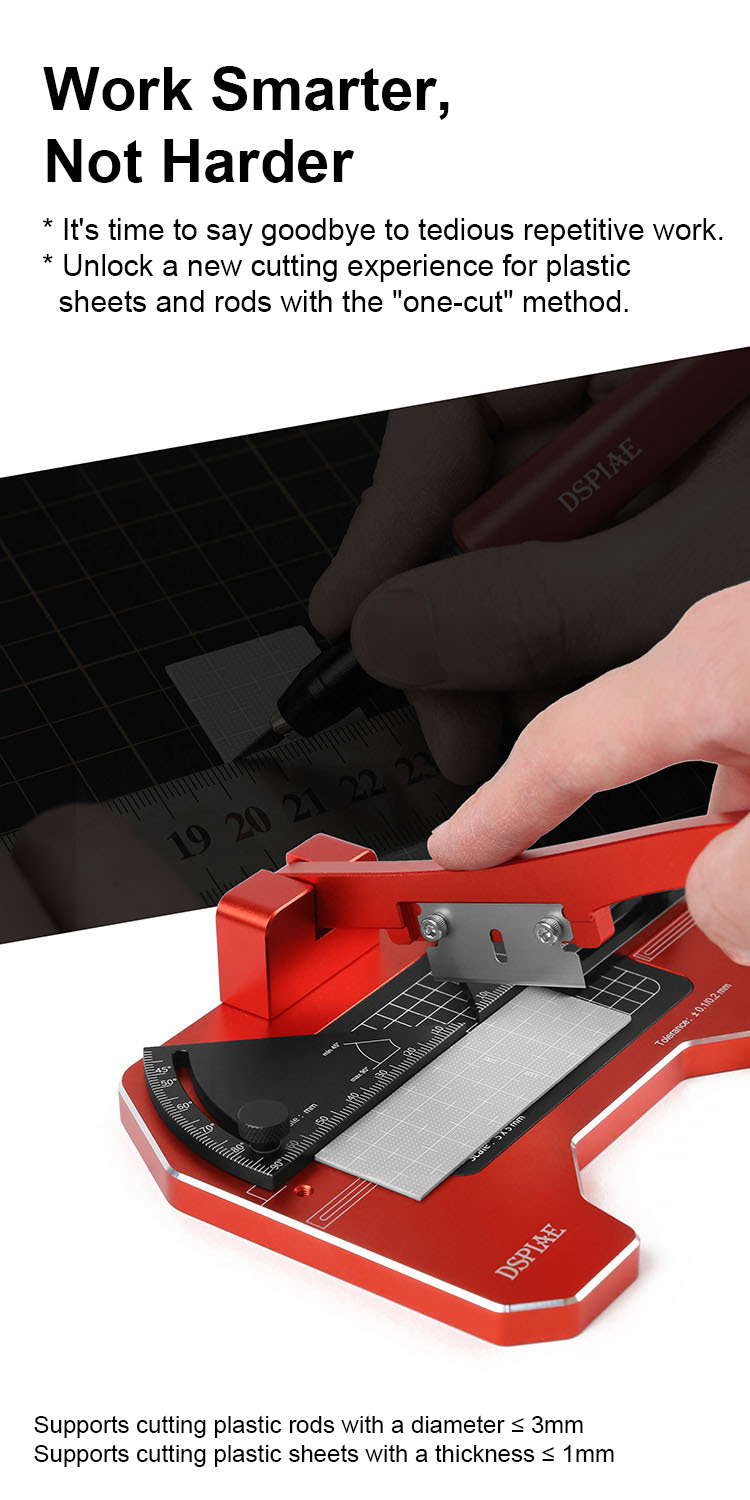

Work Smarter, Not Harder
* It's time to say goodbye to tedious repetitive work.
* Unlock a new cutting experience for plastic sheets and rods with the "one-cut" method.
* Supports cutting plastic rods with a diameter ≤ 3mm
* Supports cutting plastic sheets with a thickness ≤ 1mm

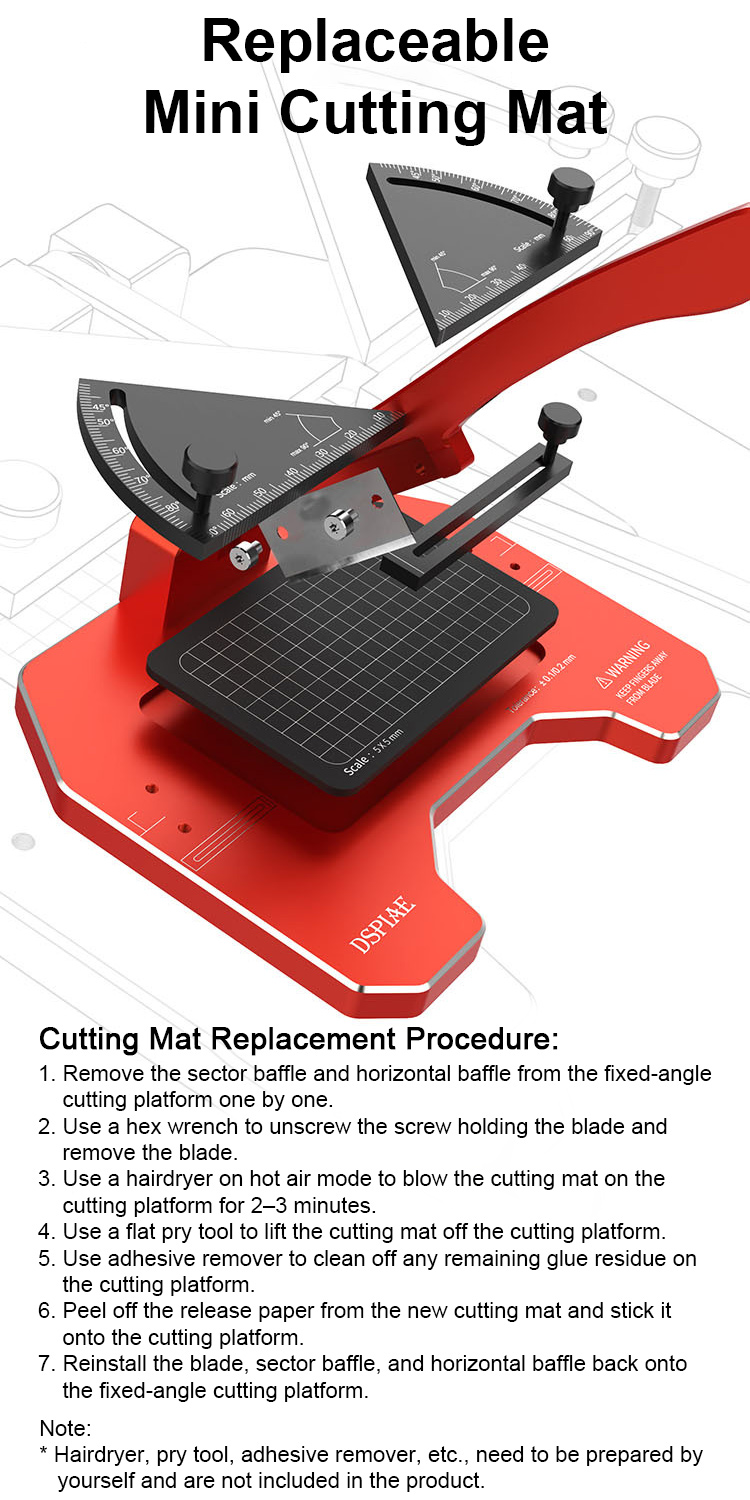

Replaceable Mini Cutting Mat
1. Remove the sector baffle and horizontal baffle from the fixed-angle cutting platform one by one.
2. Use a hex wrench to unscrew the screw holding the blade and remove the blade.
3. Use a hairdryer on hot air mode to blow the cutting mat on the cutting platform for 2–3 minutes.
4. Use a flat pry tool to lift the cutting mat off the cutting platform.
5. Use adhesive remover to clean off any remaining glue residue on the cutting platform.
6. Peel off the release paper from the new cutting mat and stick it onto the cutting platform.
7. Reinstall the blade, sector baffle, and horizontal baffle back onto the fixed-angle cutting platform.

Precautions:
* This product contains a sharp blade inside the packaging and is prohibited for use by children under 14 years old.
* Do not cut plastic parts thicker than 3mm to avoid blade breakage.
* Never place your fingers under the blade during use; wear protective gear if necessary.
* The blade will become dull after prolonged use; please replace it promptly to avoid affecting performance.
* Ensure the product is placed steadily before operation; otherwise, cutting quality may be affected.
* This product is only suitable for cutting plastic; do not use it to cut metal to prevent blade breakage.

Specifications:
* Product Name: Fixed-Angle Cutting Platform
* Model: AT-CJ
* Dimensions: 178mm × 150mm × 45mm
* Net Weight: 487± 5g
* Blade Material: Carbon Steel
* Main Material: Aluminum Alloy

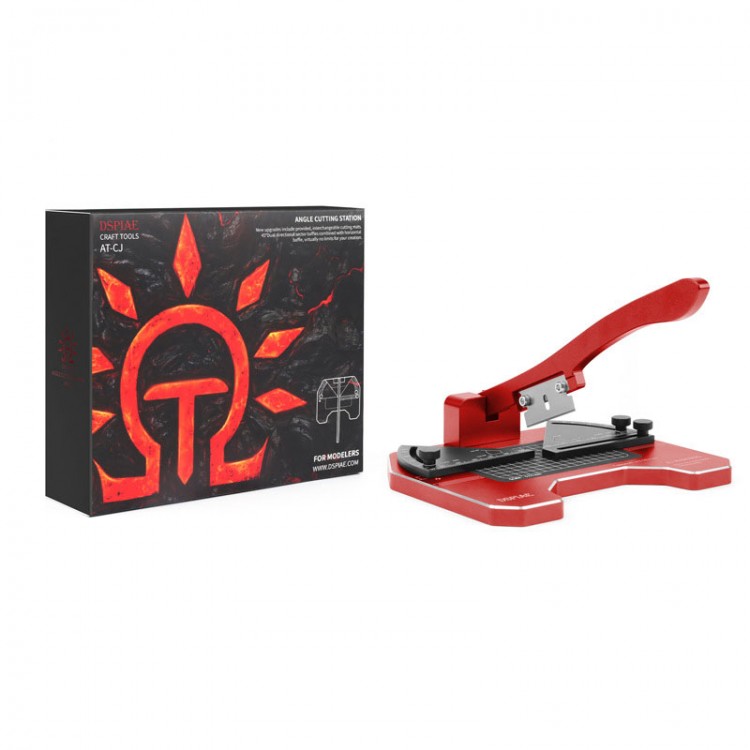

Packing List:
* Fixed-Angle Cutting Platform ×1
* Hex Wrench 3.0 (to adjust damping) ×1
* Hex Wrench 2.5 (to replace blade) ×1
* Anti-Slip Pads ×4
* CJB-01 Blade (installed on the cutting platform) ×1
* CJ-M01 Cutting Mat ×1

Packaging Details:
* Weight: 0.72kg
* Packaging Dimensions: About 20cm × 17cm × 6cm

Note:
* Hairdryer, pry tool, adhesive remover, etc., need to be prepared by yourself and are not included in the product.
