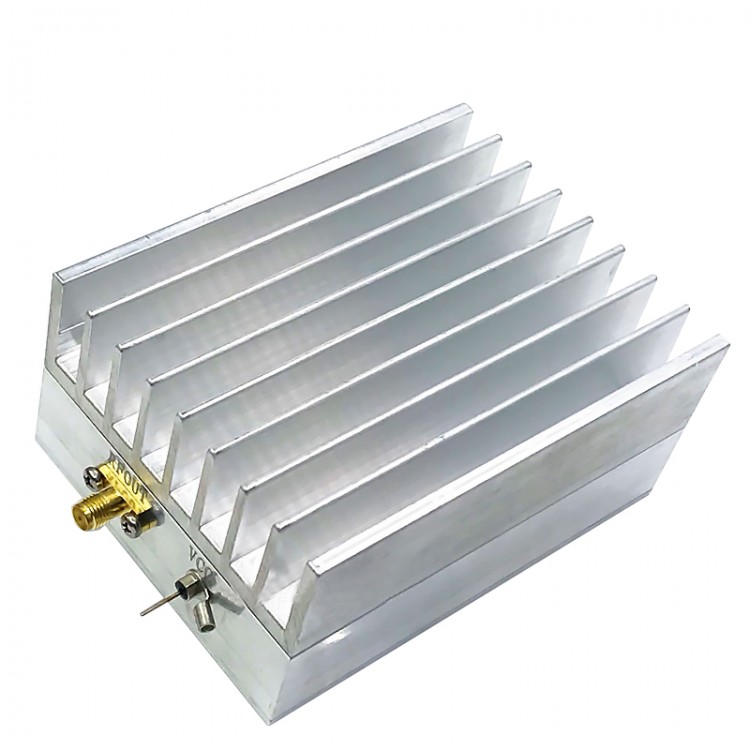

DTMB Class A 4W RF Power Amplifier High Linearity RF Power Amp 45-1100MHz Working Frequency
Technical Parameters:
1) Operating frequency: 45-1100MHz
2) Working voltage: 24-26V (DC)
3) Working current: 400-600mA
4) Amplification gain: 32dB
5) Output power: 4W
6) Working status: Class A linear
7) Connector form: SMA standard female connector
8) Dimensions: 75*100mm/3 x 3.9" (excluding the sizes of connectors)
9) Product weight: 500g
Wiring:
1) RFin: signal input terminal (signal to be amplified)
2) RFout: signal output terminal (output terminal after signal amplification)
3) VCC: Power supply positive pole (power supply through core capacitor)
4) GND: Power supply negative pole (wire nose and shielding shell)
Attention: When installing, make use of the close contact between the shell and other metals for auxiliary heat dissipation.
Package Included:
- 1 x RF Power Amplifier
