DTS219 Monocular Tactical Thermal Imager 256x192 19mm Lens High Sensitivity Night Vision Device

DTS219 Monocular Tactical Thermal Imager 256x192 19mm Lens High Sensitivity Night Vision Device

Description:
- The thermal imaging sighting device is equipped with a 12um high-sensitivity detector, resolution of 256x192, paired with a 19MM all germanium infrared lens, an open 2.4-inch 600x450 high-resolution AMOLED display screen, weighing 280g, length*width*height: 85*75*81.5mm (including quick release).
- Product functions: dual-purpose search and sighting, quick disassembly and assembly, high-precision trajectory calculation, convenient trajectory recording, 1200 meter laser ranging, hotspot tracking, UVC digital video, electronic zoom, WIFI, Photo/video playback.
- The DTS219 thermal imager is designed for various applications, including night hunting, observation, rescue operations, hiking, etc.

Features:
- Dual purpose search and sighting
- Quick disassembly and assembly
- Ballistic calculation
- Infrared stepless shutter algorithm‌
- 2.4-inch AMOLED display screen
- Laser ranging range of 1200 meters
- Built in high-speed eMMC storage 32GB
- Compact design
- Hotspot tracking
- Convenient battery installation
- Real time output of UVC digital video
- Electronic zooming
- WiFi image transmission
- Photo/video playback

Specification:
Detector:
- Type: VOx uncooled infrared focal plane
- Resolution: 256 x 192
- Pixel size: 12um
- Response band: 8 - 14um
- NETD: ≤30mk at 25℃, at F/1.0
- Frame rate: 50Hz

Optical:
- Focal length: 19mm/F1.0
- FOV: 9.2°x7.0°
- Basic magnification: 1.2X
- Electronic zooming: 1x - 4x
- Focusing method: manual

Detection Distance:
- Human: 897m
- Rabbit: 211m

Display:
- Type: 2.4-inch AMOLED
- Resolution: 600 x 450

Function:
- Laser ranging: 5 - 1200 meters (905nm)
- Laser indication: support (infrared)
- Hotspot tracking: support
- Picture-in-picture: support
- Shooting/video replay: support
- Gyroscope: support
- Cross division line: support
- Ballistic calculation: precision calculations, simple calculations, ballistic records
- Zeroing method: manual zeroing
- Scene mode: universal, high contrast, low contrast
- Pseudo-color: white hot, black hot, red hot, iron hot
- Calibration method: automatic shutter calculation, manual shutter calculation, stepless calculation, scene calculation
- WiFi image transmission: 2.4GHz, 802.11b/g

System:
- Language setting: Simplified Chinese/English
- Storage capacity: 32GB (actual usable of about 28GB)
- Image/video format: JPG/MP4
- Real-time image output: UVC digital video

Power Supply:
- Battery: built-in single detachable 18500 battery, capacity of 2000mAH (3.7V)
- Working time: 6 hours
- Interface: Type-C 5V (USB)

Physical Parameters:
- Working temperature: -20℃ to 60℃
- Storage temperature: -30℃ to 70℃
- Humidity: 10% to 95%, non-condensing
- Mechanical impact: 1000g
- Protection level: IP66
- Line of sight height: 32.83mm
- Net weight (excluding battery and quick release device): 280g
- Size: 85 x 75 x 81.5mm

Package Included:
- 1 x Thermal Imager
- 1 x Data Cable
- 1 x Power Adapter
- 2 x Wrench

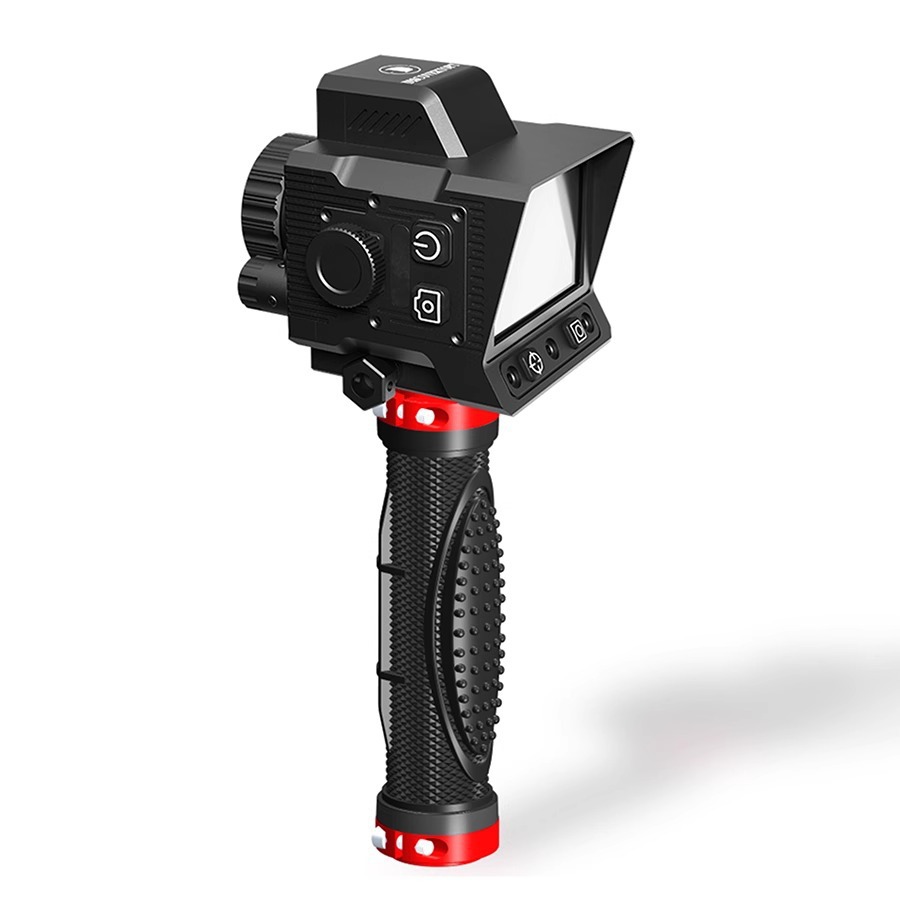

- 1 x Handle
