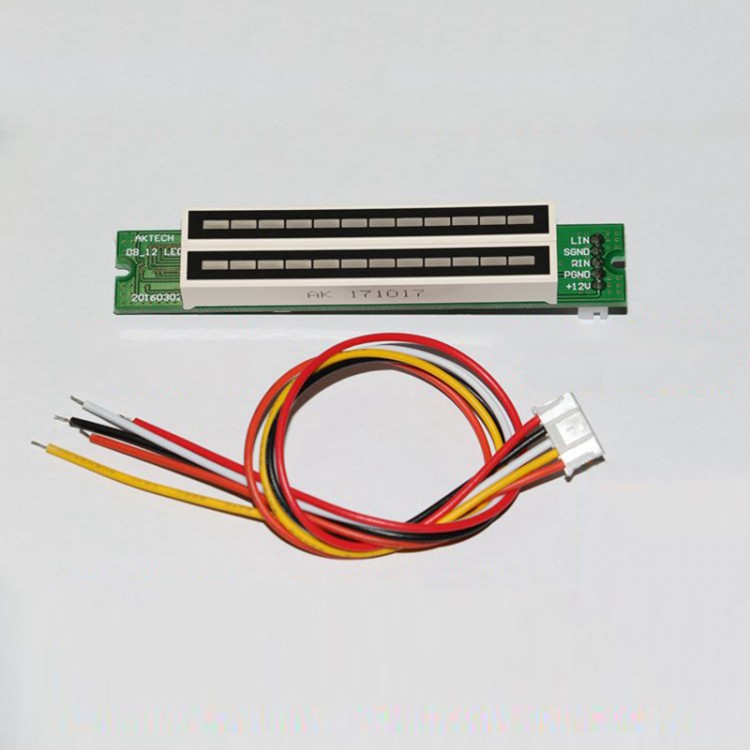

Dual 12-Level Audio Level Indicator Audio Level Display DC 7V-12V Finished for DIY
Features:
- Dual 12-level stereo level indicator for DIY
- 7 Green light + 2 Orange light + 3 Red light
- Its former real-time mode has been changed into professional DB mode and new single light effect
- Its original functions and performance of AGC mode stay intact
- The level indicator board designed with a switch button
- Ready to Use: it is assembled and passes tests before delivery
- Compact size & easy application
- Packed in an electrostatic bag
Introduction of Ports:
- LIN: Left input
- SGND: Signal input GND
- RIN: Right input
- PGND: Power supply GND
- +12V: 12V power supply +
Note:
- Independent Power Supply: DC 7V-12V, over 100mA.
- Please not use it beyond the voltage range or connect reversely.
- Please connect it to front-end audio signal instead of the output port of power amplifier.
- Please contact us for user manual after purchasing. Thank you!
Specifications:
- PCB Size: 80 x 14mm
- LED Module Size: 58 x 14mm
- Independent Power Supply: DC 7V-12V, Over 100mA
Package Included:
- 1 x Audio Level Indicator
- 1 x 5-Pin Cable 20cm
