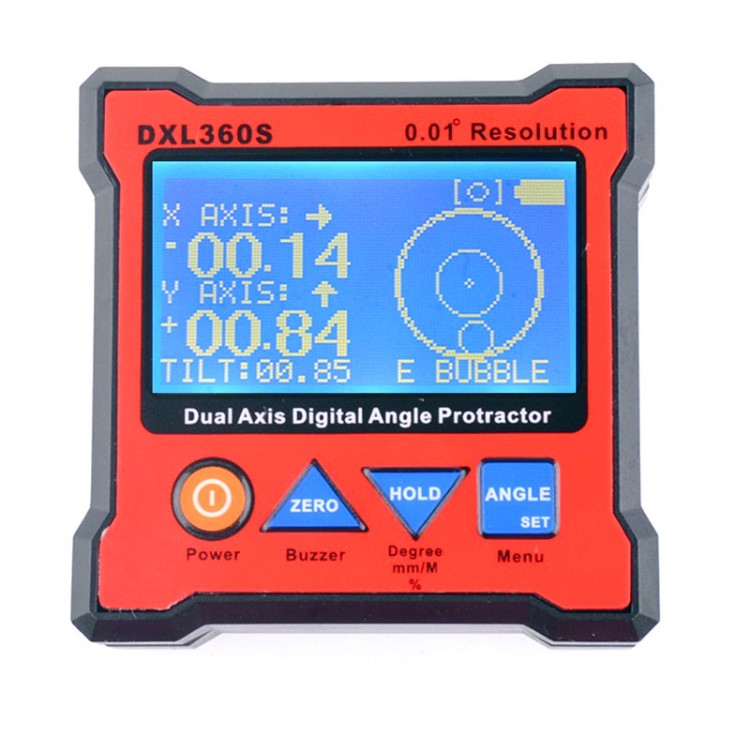

DXL360S Dual Axis Angle Protractor Digital Display Level Gauge with 5 Side Magnetic Base

Availability: In stock, usually dispatched in 1 business day

  • Price:$68.08
  • Price in reward points: 681 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.72 $65.36 $63.31 $60.59 Contact US
Quantity:

DXL360S Dual Axis Angle Protractor Digital Display Level Gauge with 5 Side Magnetic Base

Description:

Using this axis digital angle protractor, you can measure the angle between two faces, not only in earth gravity direction. Press Angle key at the first face, and then rotate slowly and must keep the rotation axis to another testing face, It will then show the angle once you not move the unit. Any angle measurement is using gyro technique.

Features:
- High accuracy ±0.05 degree , high resolution 0.01 degree.
- Li-lon battery rechargeable, durable.
- High resolution, professional measurement.
- Single and dual axis, convenient to measure the angle.
- Dual and single axis with user friendly LCD display angle.
- V shape case for easy to fit at the corner or pipe.
- With 5 Side Magnetic base, audible alarming at settable angle range, any angle measurement.
- The unit could be charged by connecting the USB cable to the unit and a computer's USB port.

Specifications:
- Color: Red
- Accuracy:
  0 to 20 degree : ± (0.05 degree )
  20 to 70 degree: ± (0.1degree)
  70 to 90 degree : ± (0.05 degree)
- Measuring Range Single Axis: 360 degree , Dual Axis: ±40 degree
- Resolution: 0.01 degree
- Response time: <0.4 second
- Zero offset drift angle per °C: 0.0058°(typical)
- Operating temperature: 0 to 50 degree C
- Storage temperature: -10 to 60 degree C
- User Interface: Mono-color LCD with backlight
- Supply Power: Rechargeable Li-Polymer 3.7V
- Charger port: 5V 500mA Mini type-B USB port
- Power Consumption: tandby: 10uA, Operation: 20mA
- Standby Battery Life: 4000 hours
- Operating Battery Life: 40 hours
- Magnetic Base: set on 4 corners
- Magnetic Force: N48
- Item Size: Approx 7 * 7 * 2.8cm / 2.7 * 2.7 * 1.1in
- Item Weight: Approx 119.7g / 4.2oz

Package List:
- 1 * Digital Angle Protractor
- 1 * AC Adapter
- 1 * User Manual
