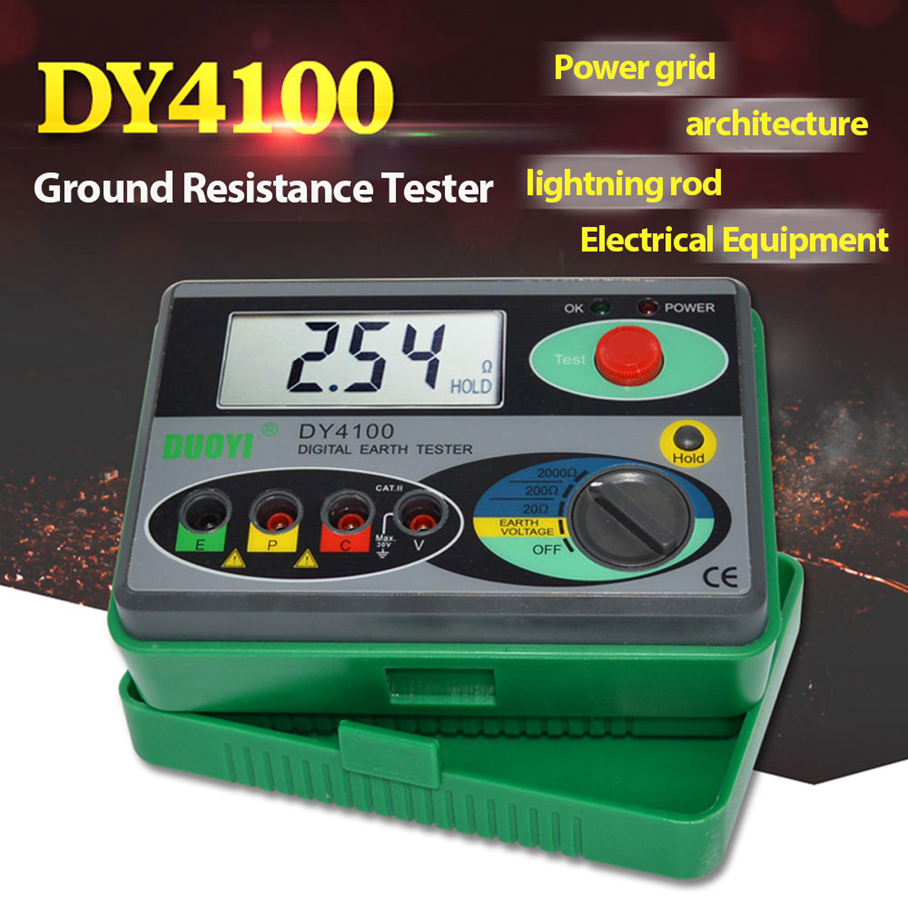

DY4100 0-2000 Ohm Earth Resistance Tester Durable Ground Resistance Tester Digital Earth Tester

DY4100 0-2000 Ohm Earth Resistance Tester Durable Ground Resistance Tester Digital Earth Tester

Description:

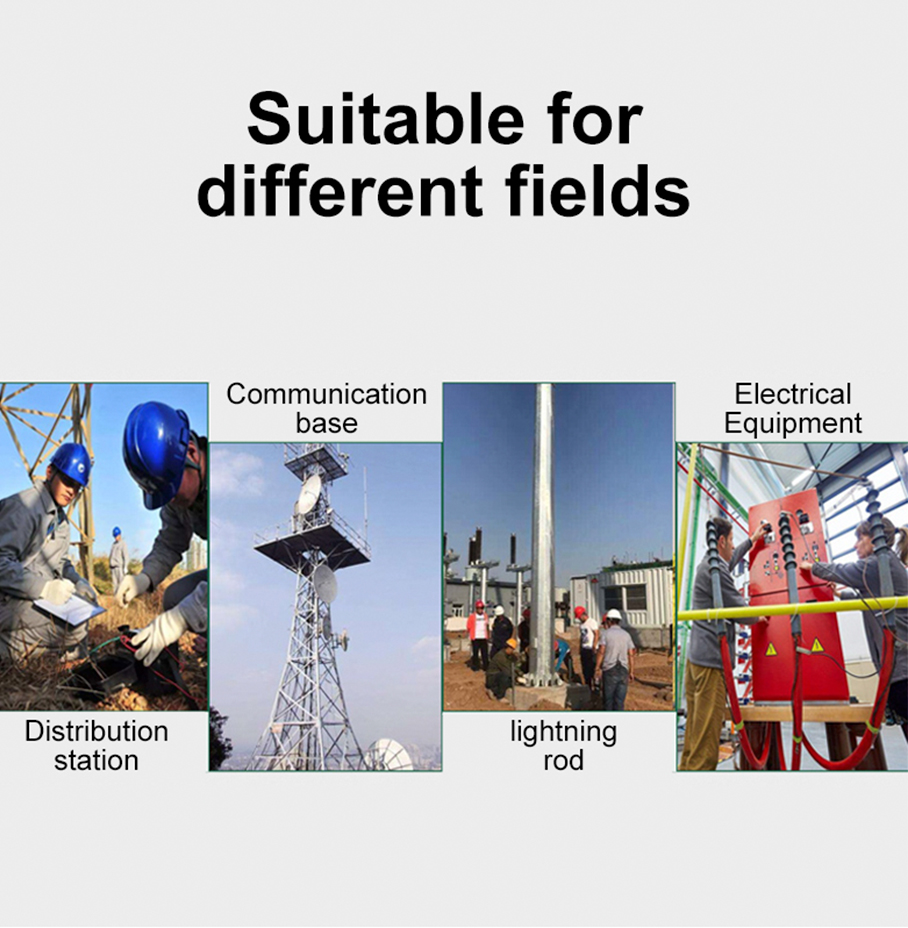

DY4100 Digital Ground Resistance Tester can test earth resistance of various earth systems including power systems, electric equipment, lightning conductors as well as resistance value of low resistance conductor and AC voltage test.

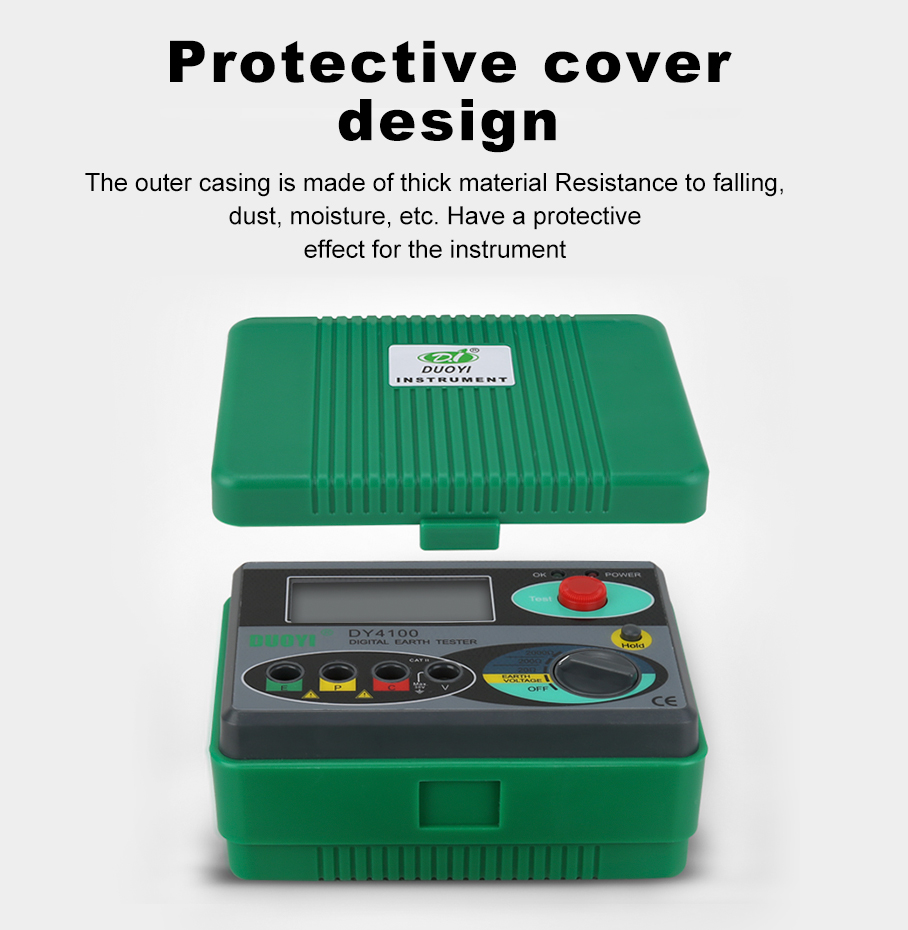

This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure.

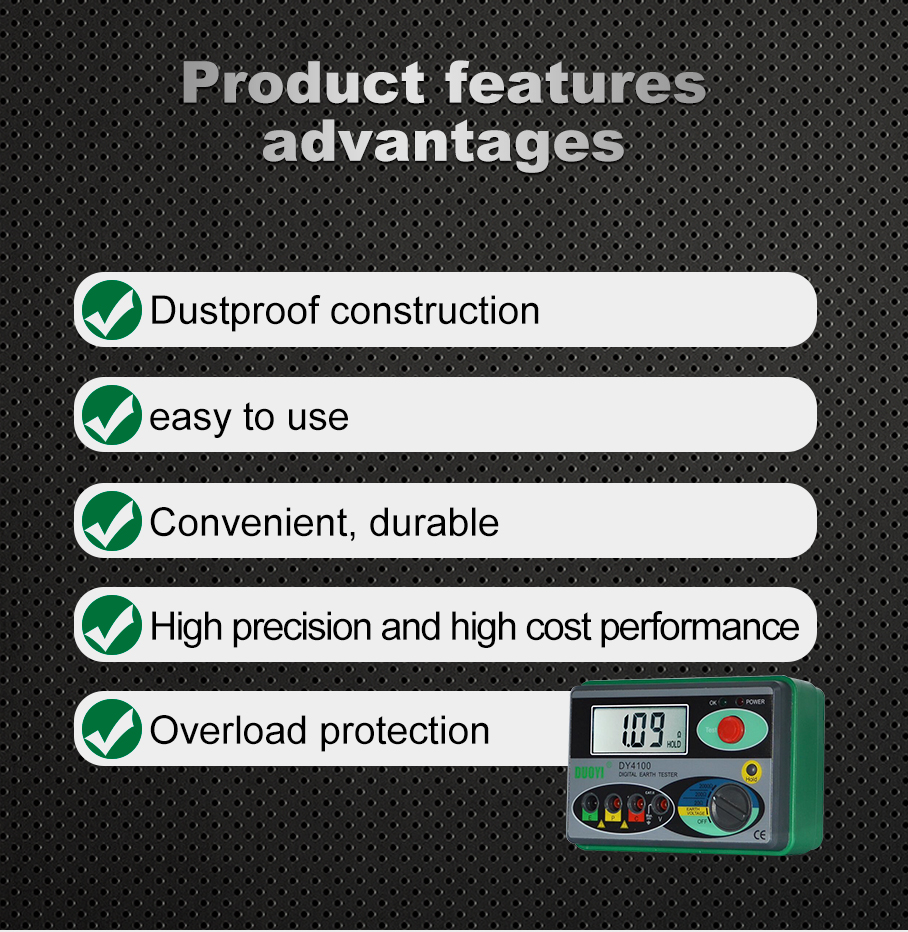

Features:

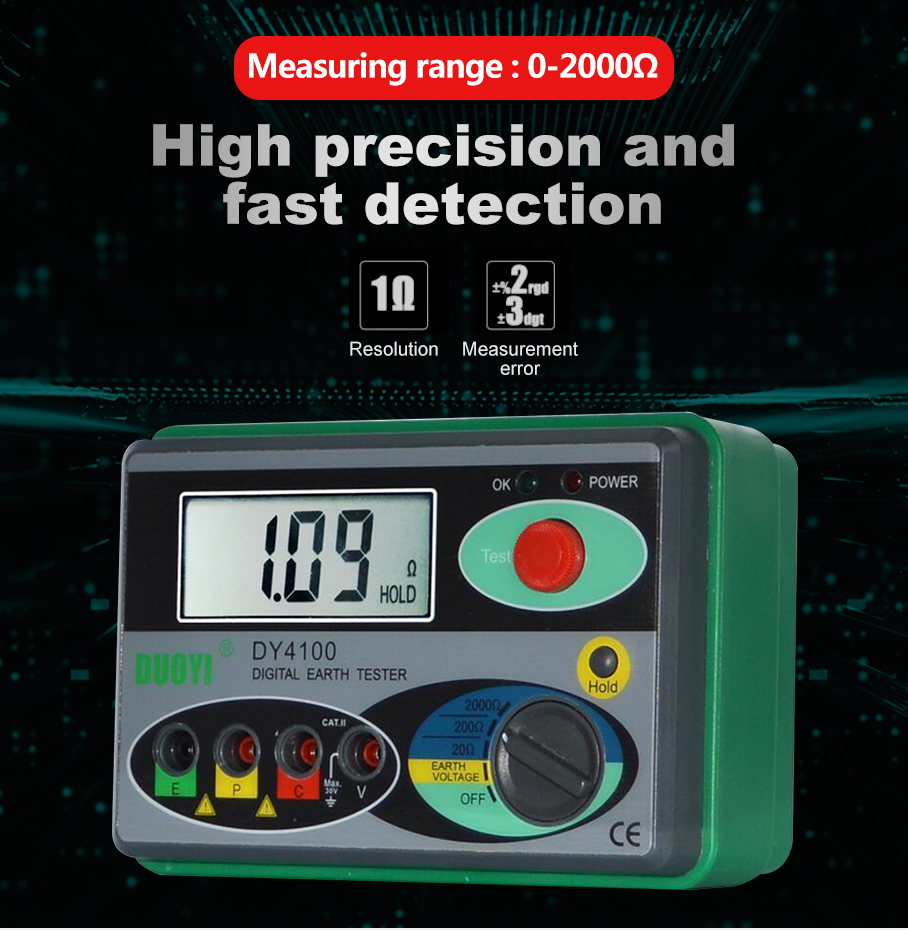

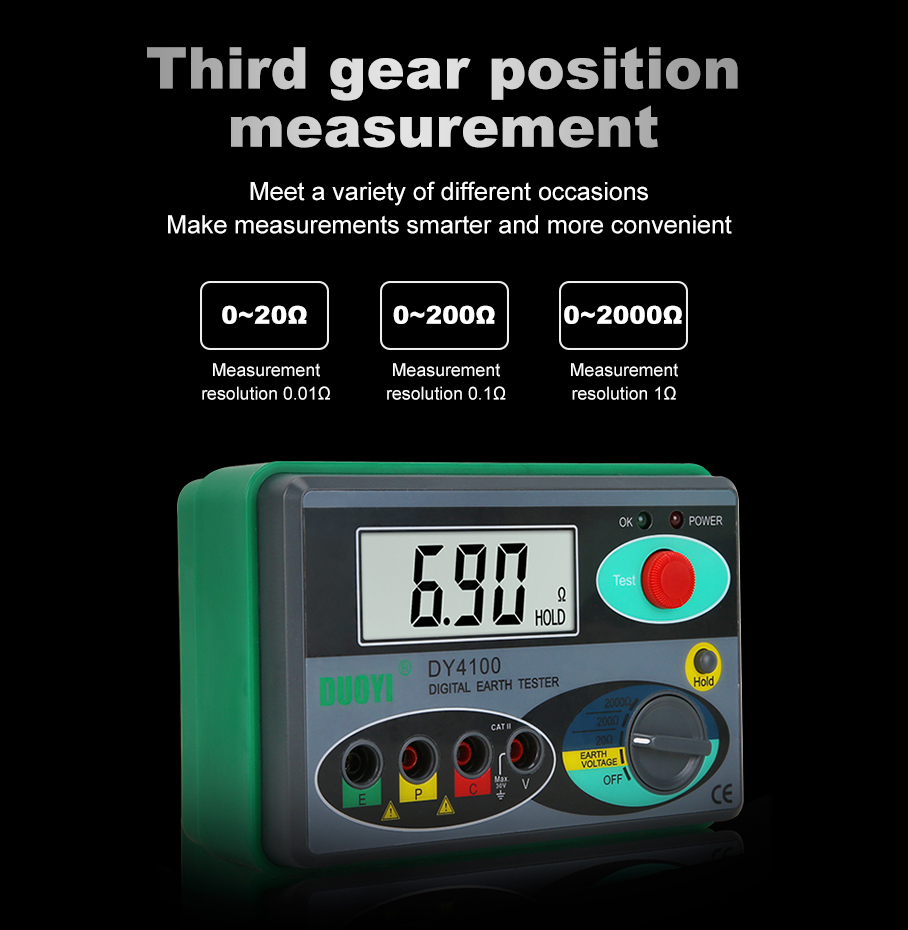

- Measuring range of earth resistance: 0-2000Ω. 0/20/200/2000 ohm ±(2%+3) with 0.01 ohm

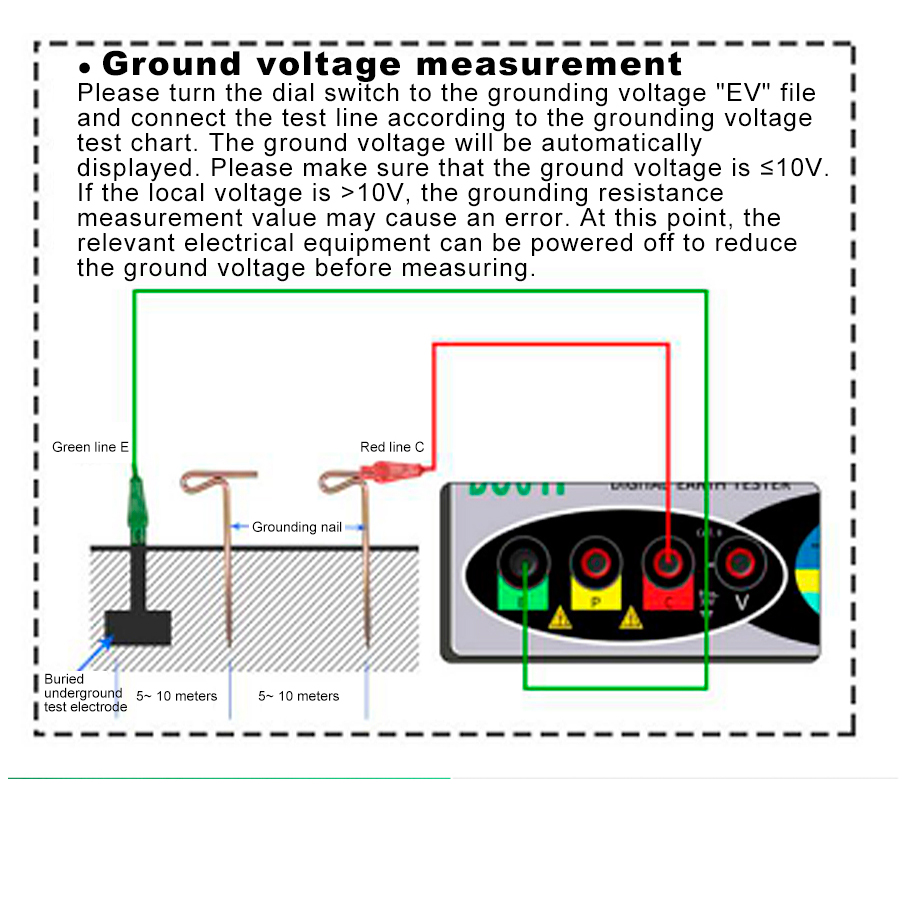

- Measuring range of earth voltage: 0-30V (3%+5)
- LED green light indicates normal operating mode

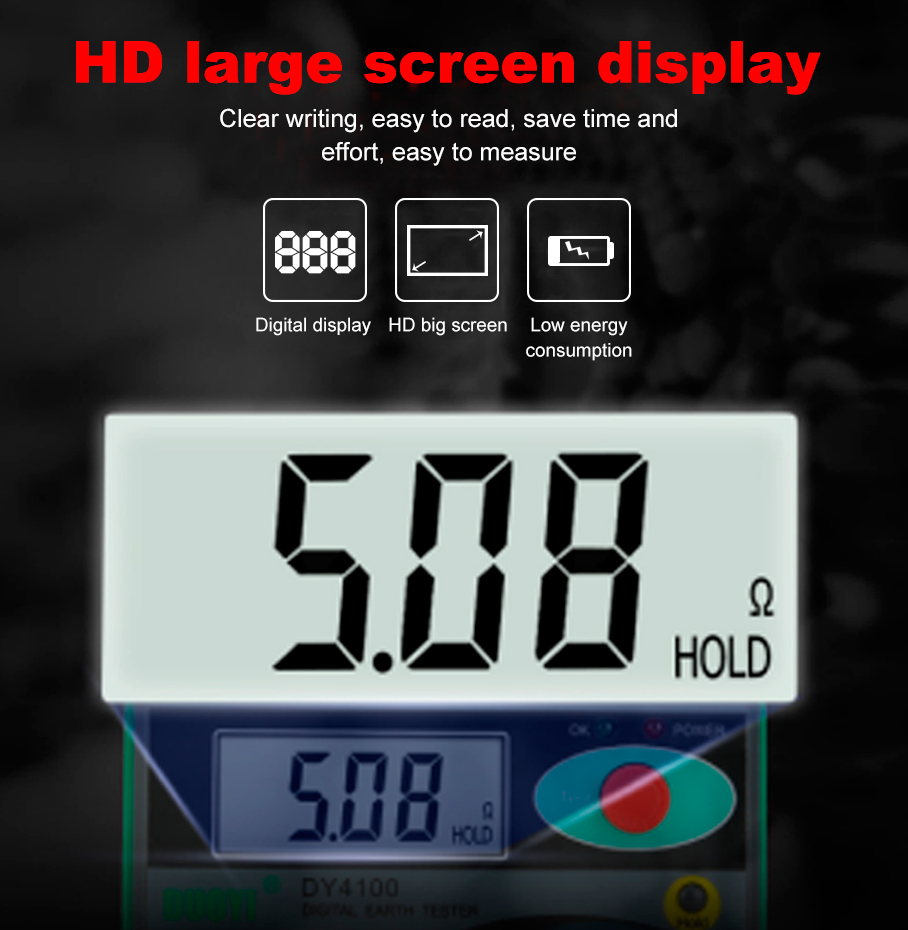

- 31/2 digit LCD display for more direct and convenient reading
- Low Battery Warning: on LCD indicates deficiency of 12V battery. LED red lighting off indicates deficiency of 1.5V battery

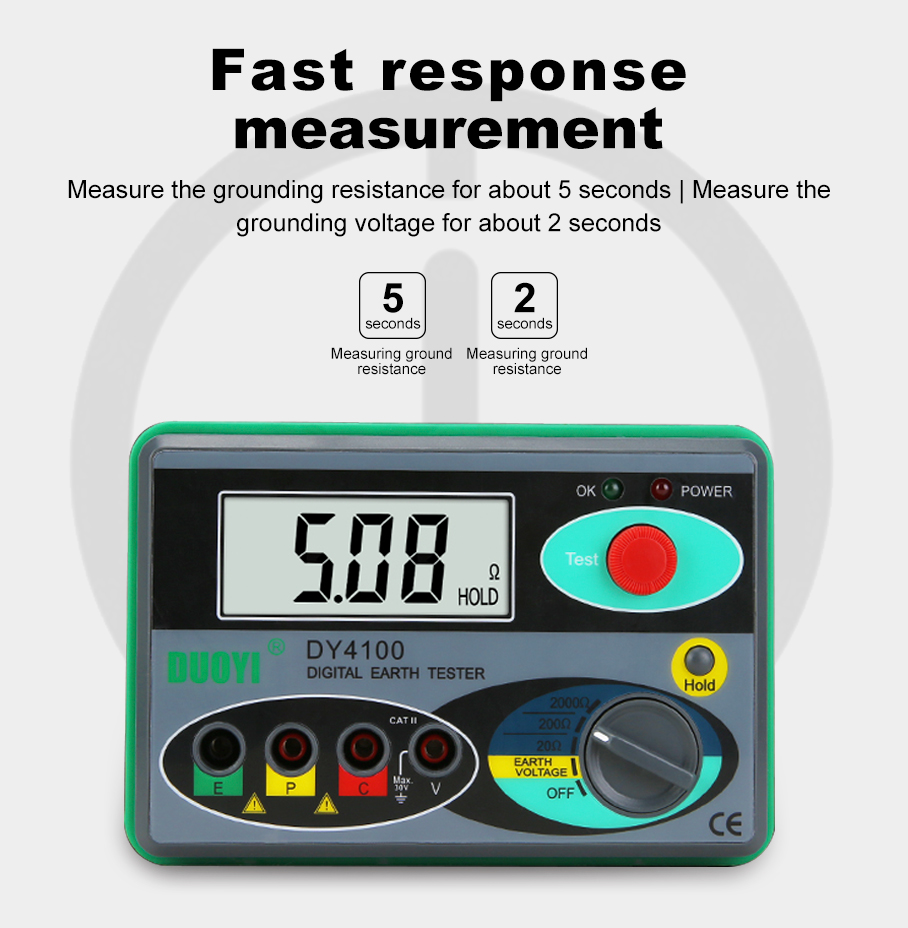

- Fast Response: measure earth resistance, about 5 seconds. Measure earth voltage, about 2 seconds
- Withstand voltage: AC 500V, 1 minute between circuit and outer casing

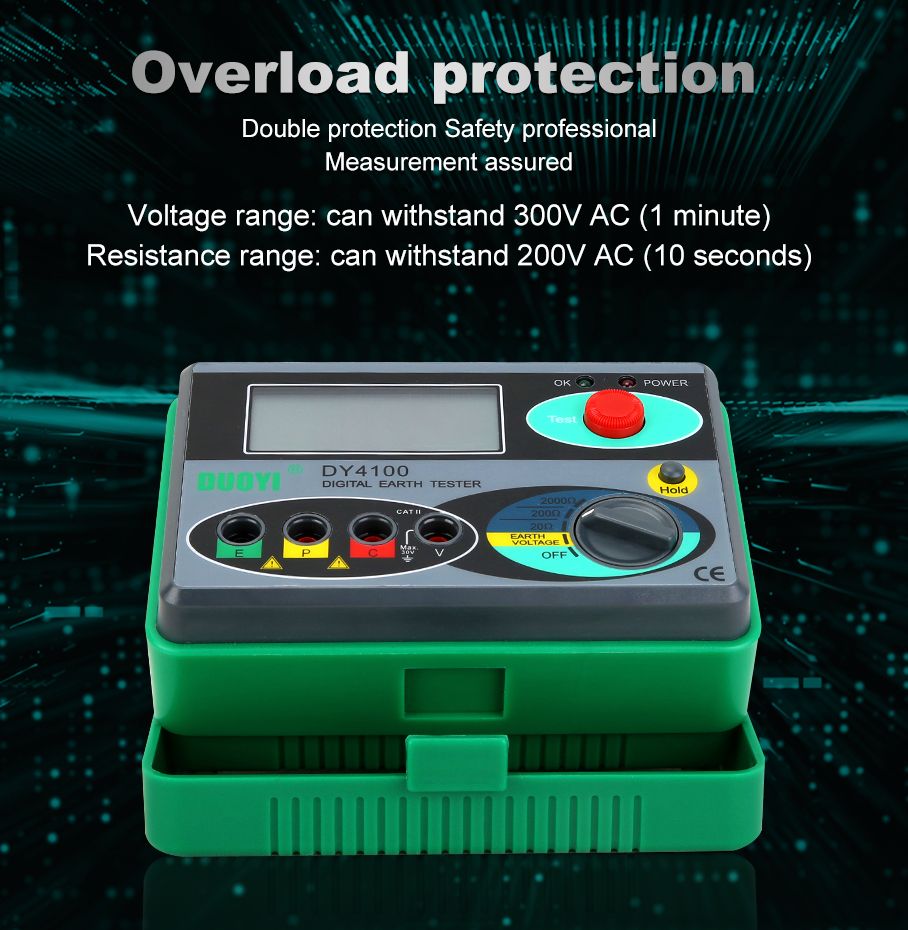

- Overload protection: on earth voltage, it can withstand 300V AC 1 minute. On earth resistance, it can withstand 200V AC 10 seconds
- Data Hold: yes
- Working LED Indicator: yes
- Function Symbol Display: yes

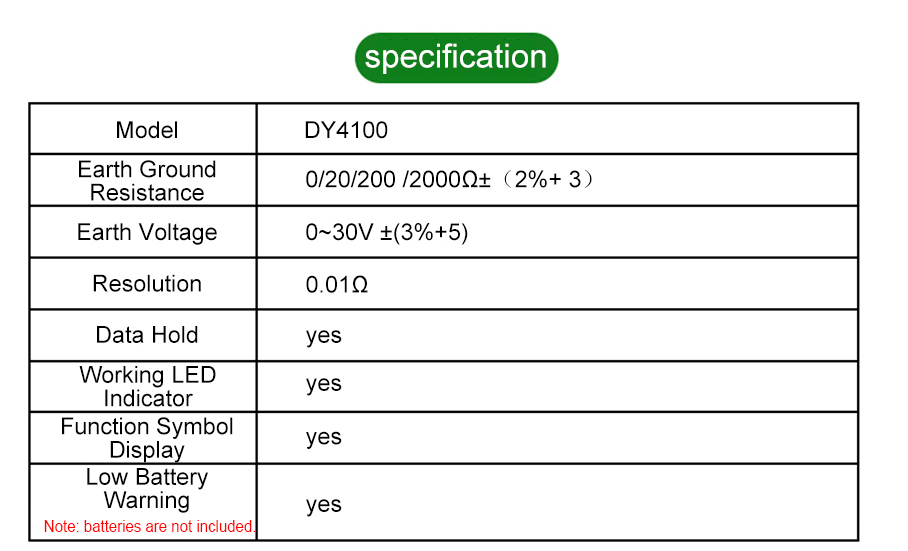

Specifications:
1. Earth Ground Resistance: 0/20/200/2000Ω ±(2%+3)
2. Resolution: 0.01Ω
3. Earth Voltage: 0~30V ±(3%+5)
4. Data Hold: yes
5. Working LED Indicator: yes
6. Function Symbol Display: yes
7. Low Battery Warning: yes

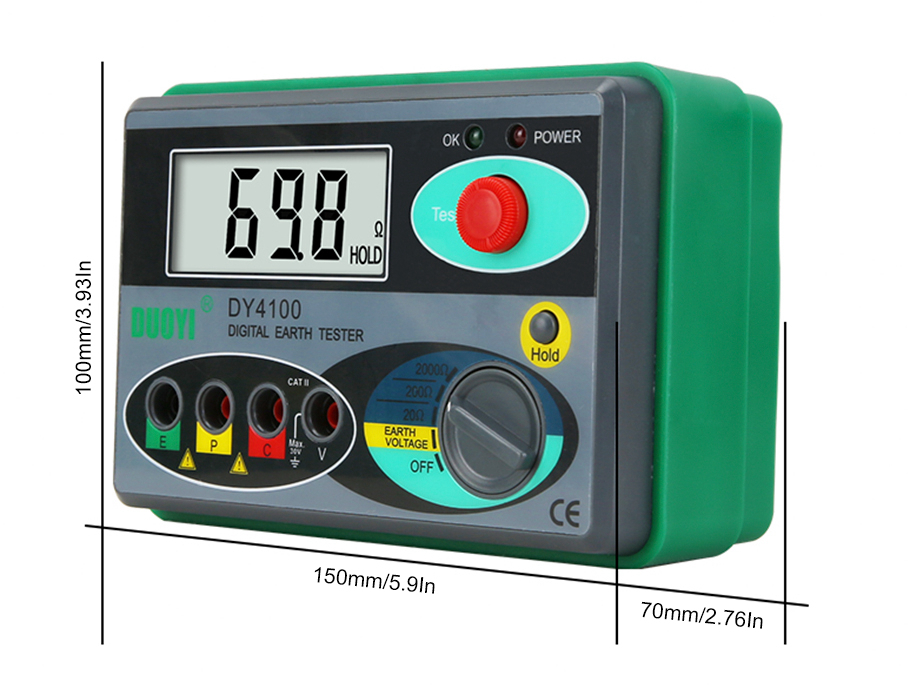

8. Product Size:150 x 100 x 70mm/5.9 x 3.9 x 2.8"
9. Weight: about 680g/1.5lb (NOT including battery)
10. Working environment:
Working temperature: 0°C-40°C. Relative humidity < 80%
Storage temperature: -10°C to 50°C. Relative humidity < 85%
Ensured accurate temperature: 23°C±5°C
Relative humidity: < 80%

Package Included:
- 1 x Main Unit
- 1 x User Manual
- 1 x Product Quality Certificate
- 2 x Simple Testing Wires
- 3 x Testing Wires
- 2 x Ground Nails
- 1 x Tool Bag

Note:

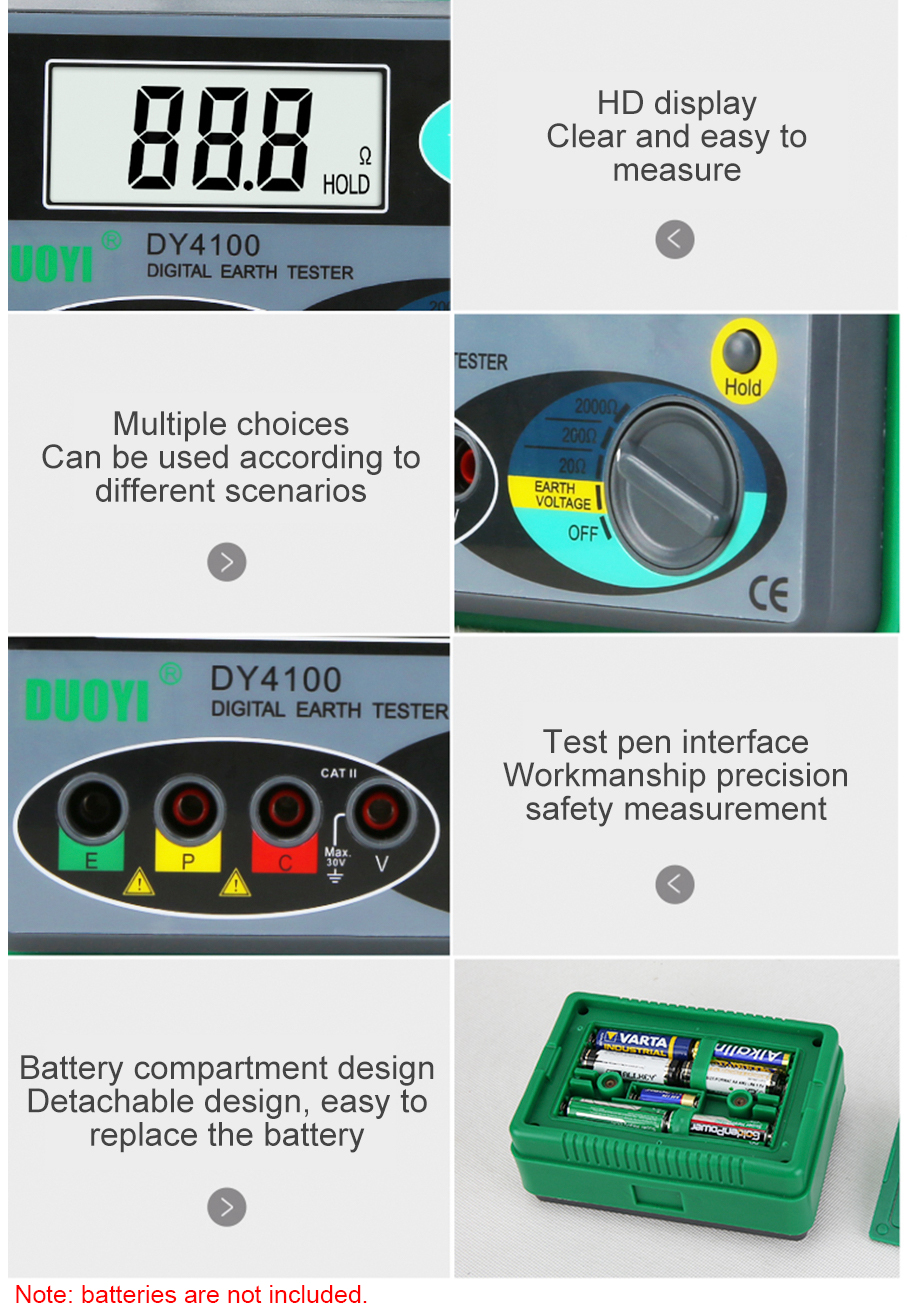

- Multimeter and batteries are not included. Matched battery model: 5V (R6 AA) battery*6 and 12V(23A) battery*1.

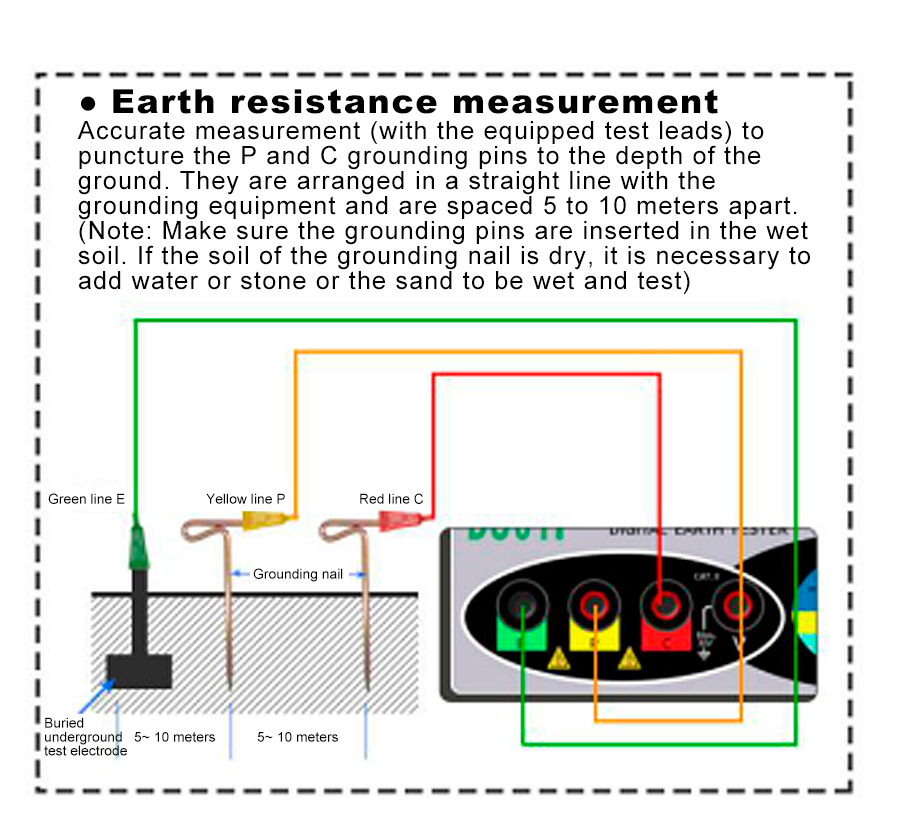

Grounding Resistance Test Requirements:
a. AC working ground, the grounding resistance should not exceed 4Ω;
b. Safe working ground, the grounding resistance should not be greater than 4Ω;
c. DC working grounding, grounding resistance should be determined according to the specific requirements of the computer system;
d. The grounding resistance of the lightning protection ground should not exceed 100Ω;
e. For jointed grounding of shielded systems, the grounding resistance should not be greater than 10 Ω.
