DY518 Freon Pressure Gauge Refrigerant Manifold Gauge Air Conditioner Digital Vacuum HVAC Meter
Description:

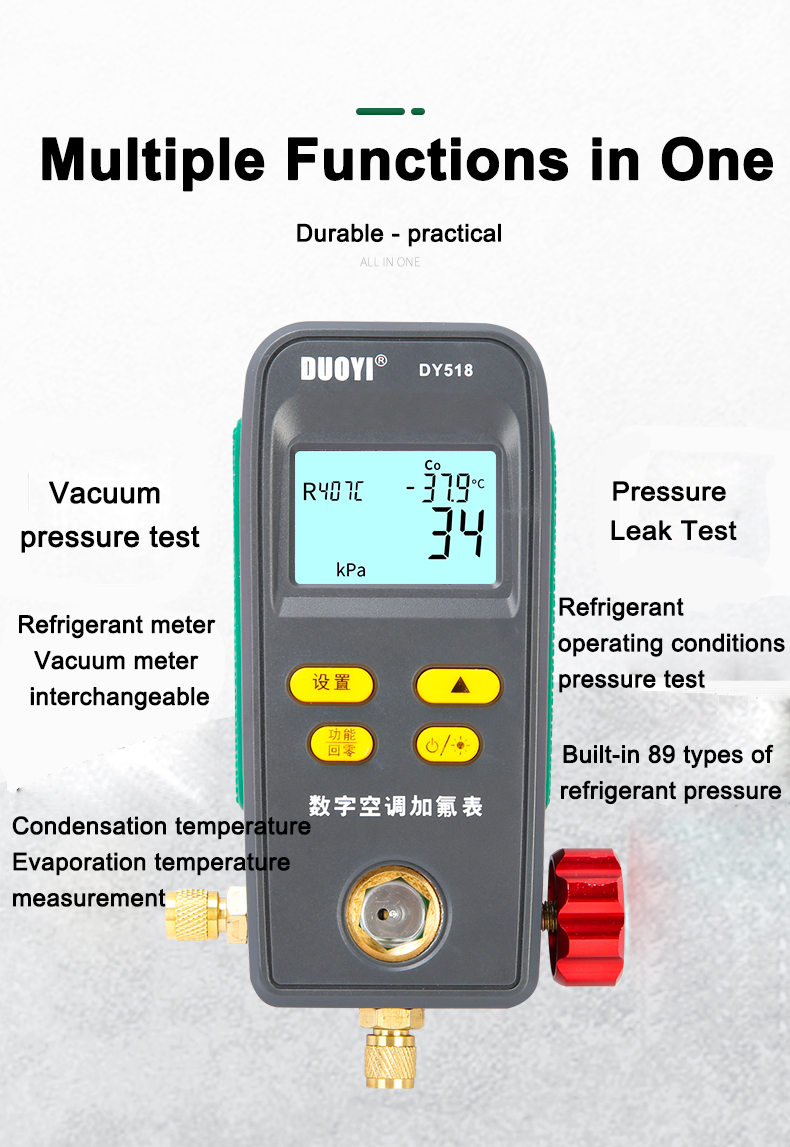

This is an auxiliary instrument for installations, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. It comes with three main functions with digital readings and multi-unit switching. Build in 89 refrigeration database drives it provide much more accurate readings.

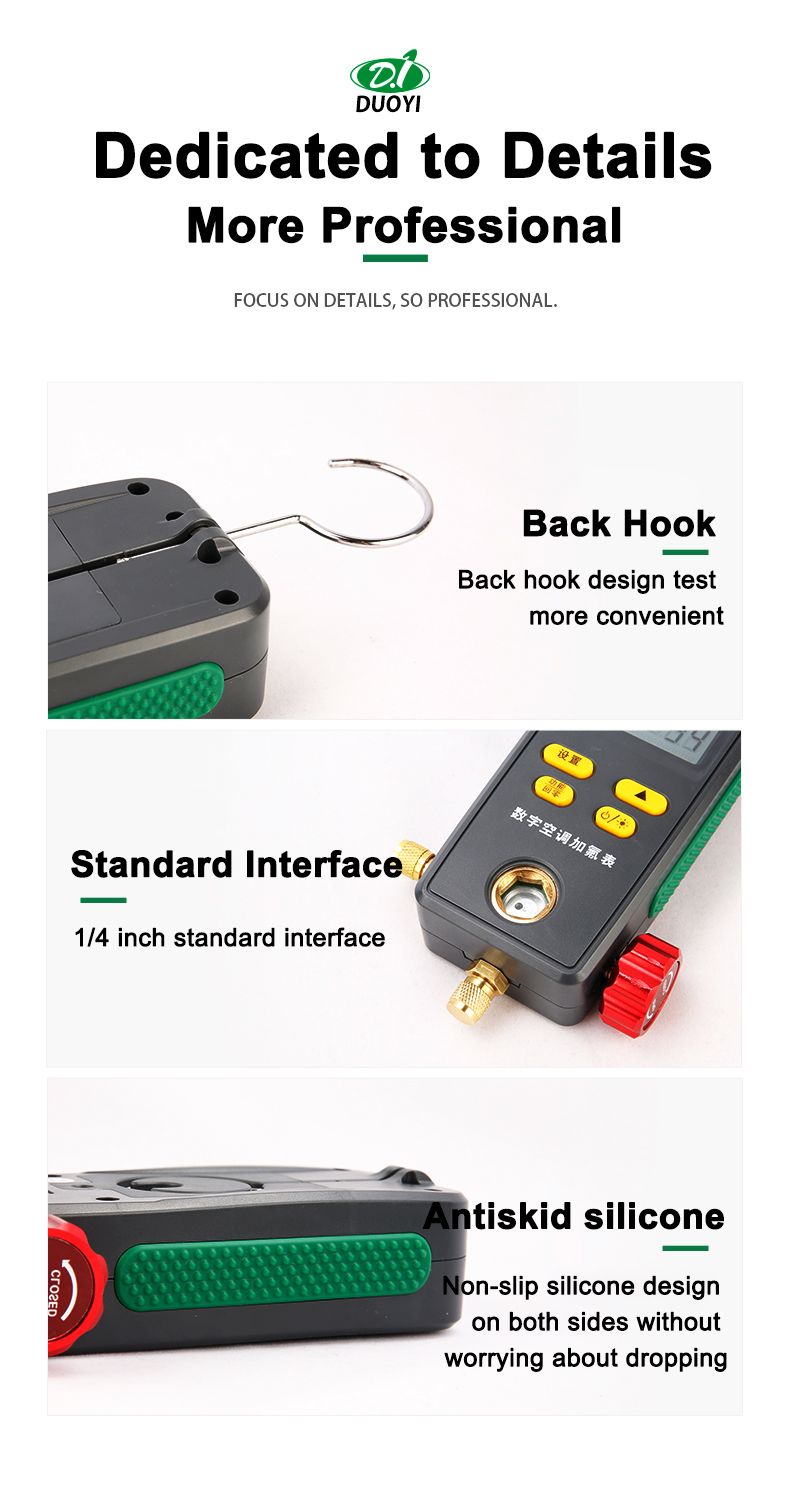

High-strength engineering plastic and flexible non-slip silicone make instrument solid and comfortable to hold.
Build-in 32-bit digital processing unit and high precision data acquisition unit make instrument efficient and stable.

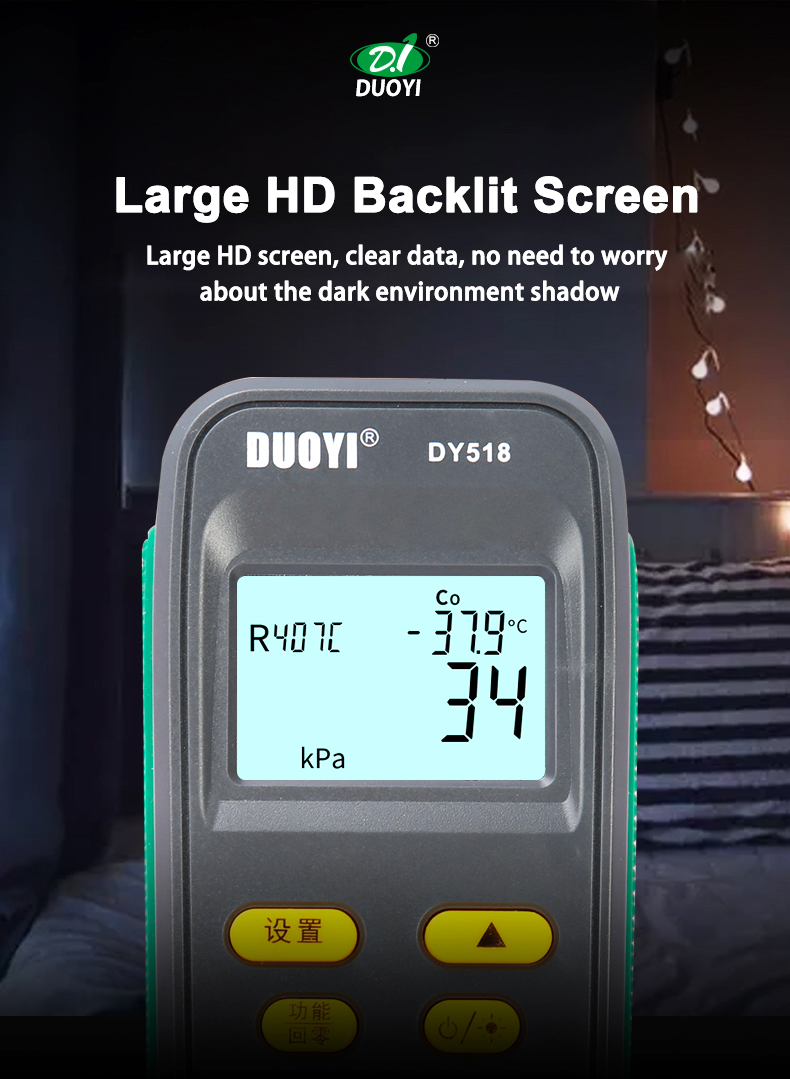

Large size LCD display and backlight support test reading clear and operation in dark condition.

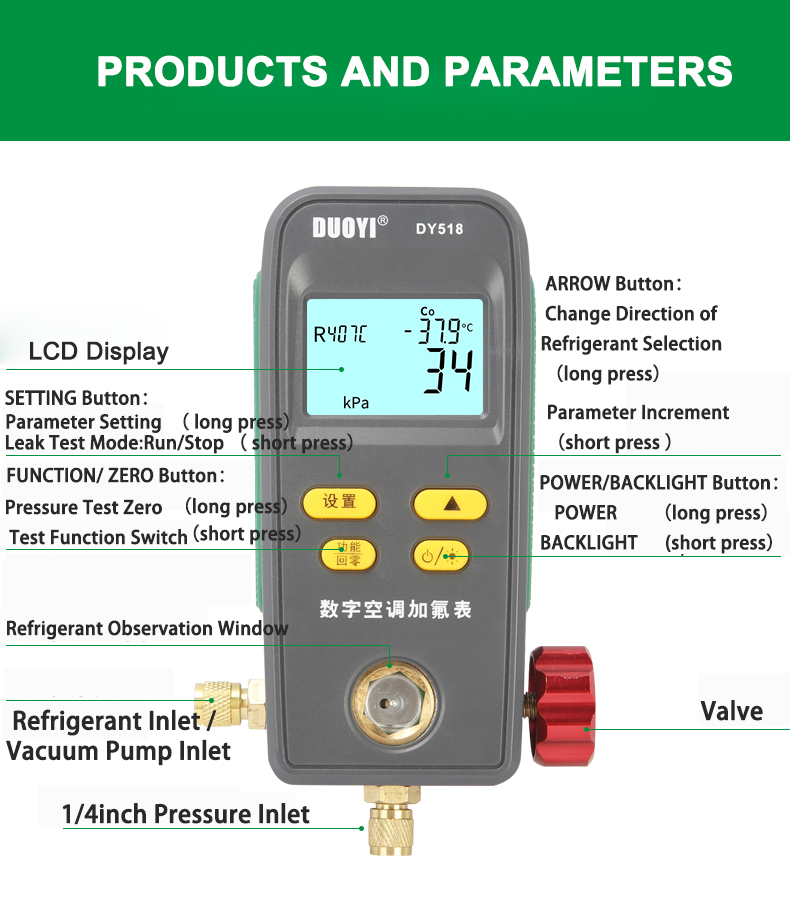

Heavy duty valve switch and 1/4 inch inlets ensure instrument durable and versatile.

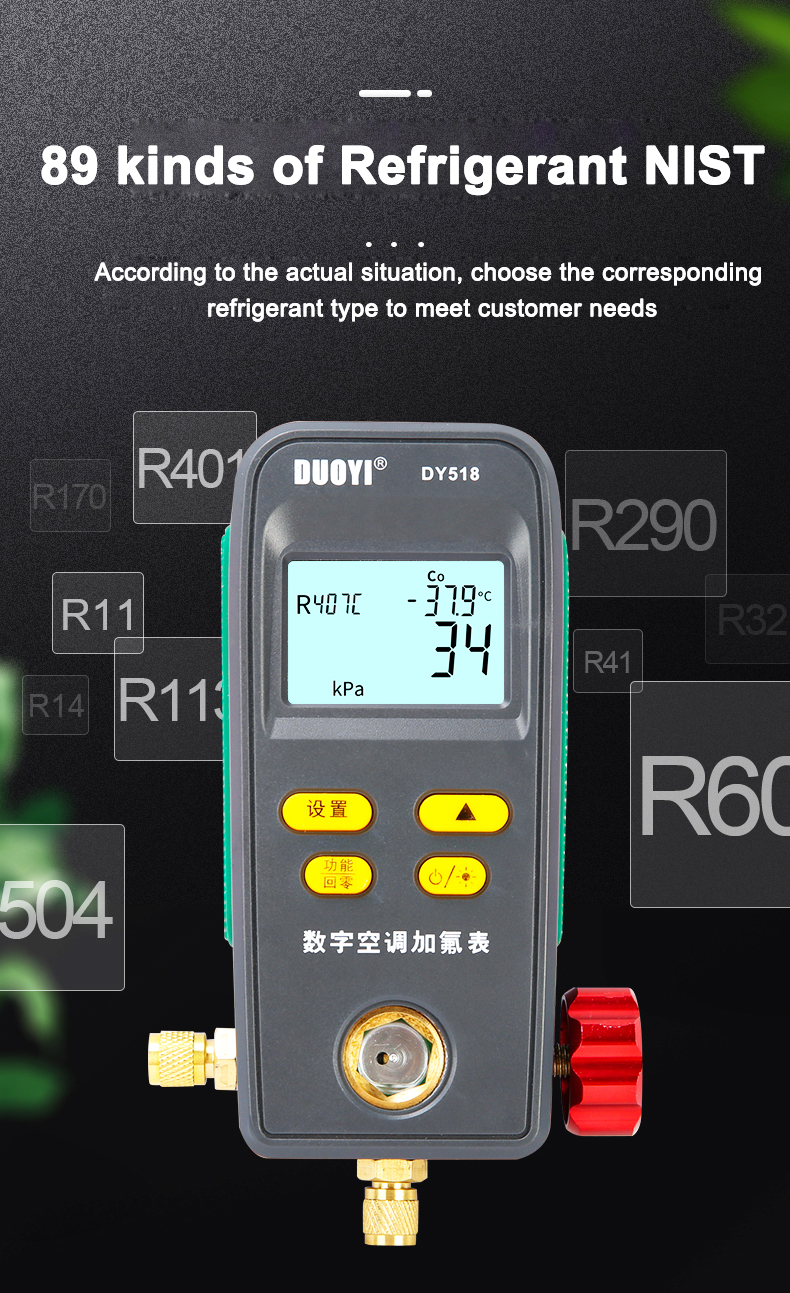

Built-in 89 types of refrigeration database eases user check condensation temperature and evaporation temperature intelligently.

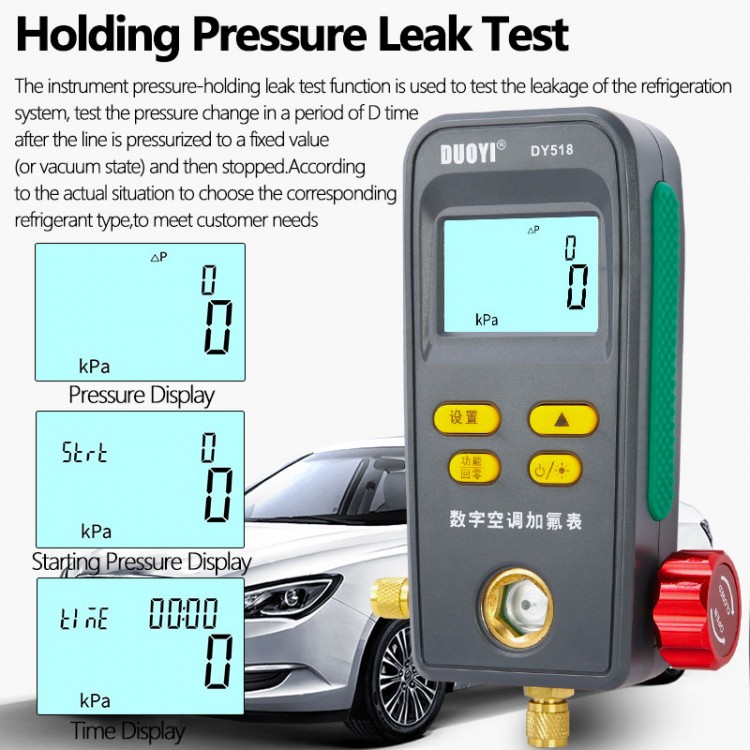

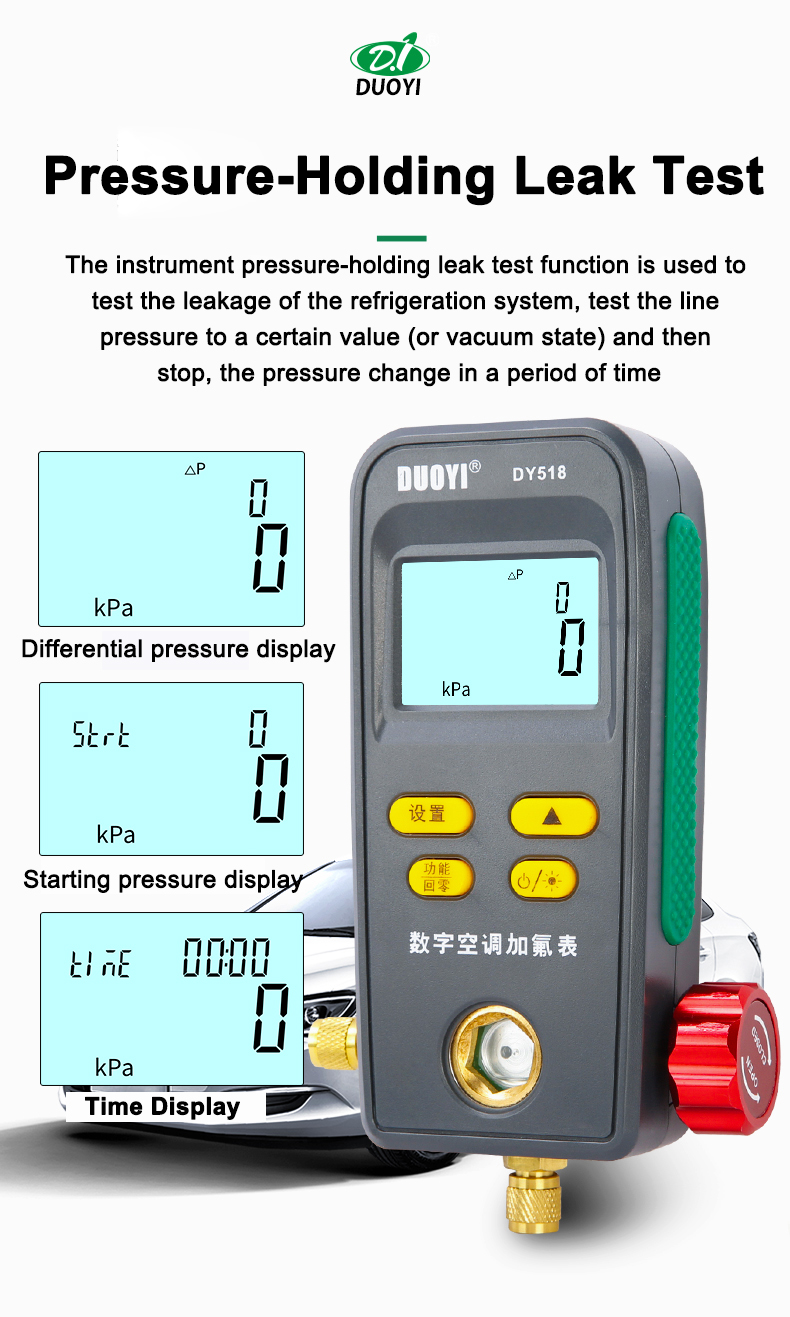

Vacuum Test and Pressure Leak Test with leak time recording perfectly match users' needs of pressure test and measurement in the process of filling refrigerant.
Specifications:
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI
- Pressure test range: 0Kpa-6000Kpa
- Pressure test resolution: 1 Kpa
- Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI
- Vacuum test range: -101Kpa to 0Kpa
- Vacuum test resolution: 1Kpa
- Temperature test unit: °C (Celsius), °F (Fahrenheit)
- Temperature test range: -40°C to 150°C (-40°F to 302°F)
- Temperature test resolution: 0.1°C (-40°C to 99.9°C), 1°C (100°C–150°C), 0.1°F (-40°F to 99.9°F), and 1°F (100°F–302°F)
- Temperature test accuracy: +/- 0.5 °C + 2dgt; +/- 0.9 °F + 2dgt

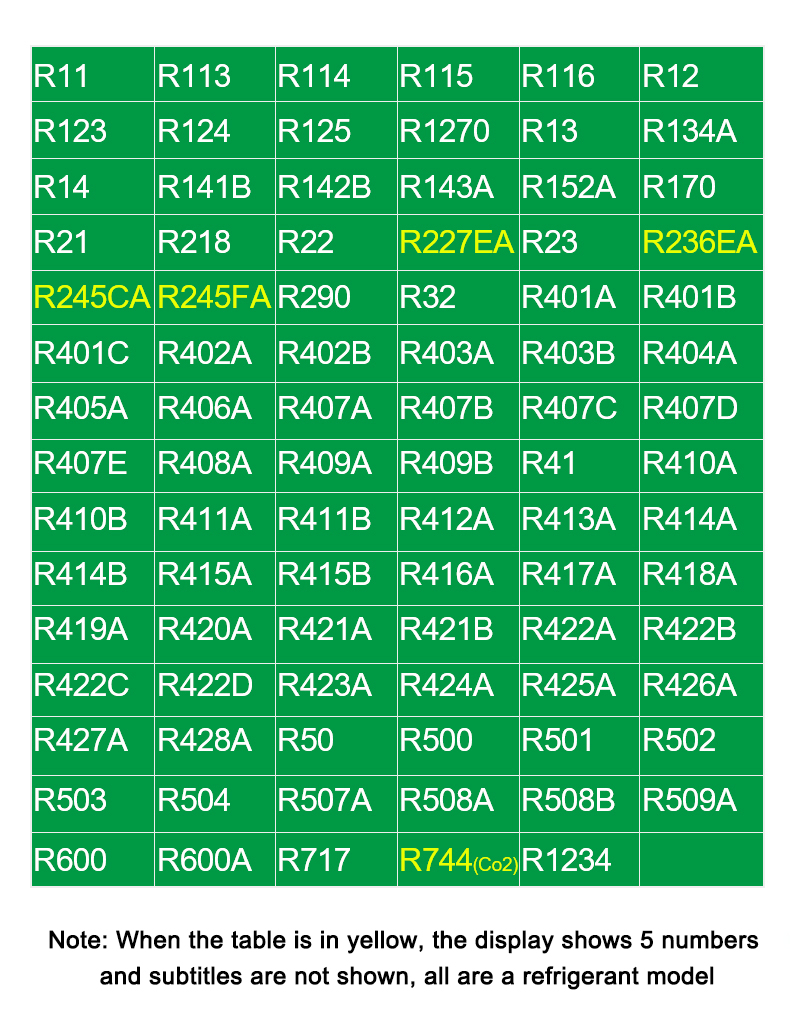

- Built-in 89 kinds of refrigerant NIST: According to American NIST standard
- Refrigerant table, suitable for automotive air conditioning, household air conditioning, refrigerator, freezer, etc., mainly measuring temperature and pressure
Package Included:
- 1 x DY518
- 1 x Carrying bag
- 1 x User manual
Note:
- Batteries are not included. 4pcs 1.5V (AA / LR6) batteries are needed.
