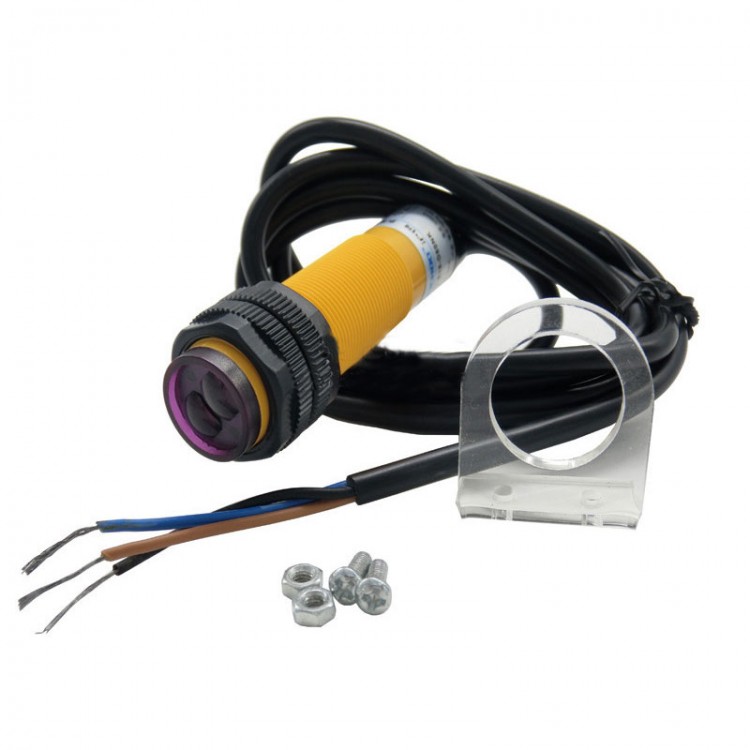

E18-D80NK Infrared Obstacle Avoidance Photoelectric Switch Smart Car Robot Proximity Switch 3-80cm

E18-D80NK Infrared Obstacle Avoidance Photoelectric Switch Smart Car Robot Proximity Switch 3-80cm

Description:
This is a set of transmitter and receiver in one of the photoelectric sensor. Detection distance can be adjusted according to the requirements. The sensor has a detection distance by visible light interference is small, cheap, easy to assemble, easy to use features, can be widely used robot obstacle avoidance, pipeline piecework and many other automation products.

Electrical Characteristics:
U: 5VDC
I: 100mA
SN: 3-80cm

Sizes:
Diameter: 17mm
Sensor length: 45mm
Lead Length: 45cm

Pins:
Brown One: +
Black One: Signal
Blue One: -

Applications:
1. The production line goods automatic counting device
2. Multi-functional reminder
3. Maze Robot

Photoelectric sensor (photoelectric switch) NPN normally open
Model No.: E18-D80NK

Technical Parameters:
1. Output Current: DC/SCR/Relay Control Output: 100mA/5V supply
2. Current Consumption: DC<25mA
3. Response Time: <2ms
4. Point Angle: ≤ 15°, effective adjustable distance: 3-80CM
5. Object Detection: not transparent
6. Working Environment Temperature: -25℃ to +55℃
7. Standard Sensing Object: sunlight below 10000LX, incandescent below 3000LX
8. Case Material: Plastic

Package Included:
1 x E18-D80NK (with bolts & nuts)
