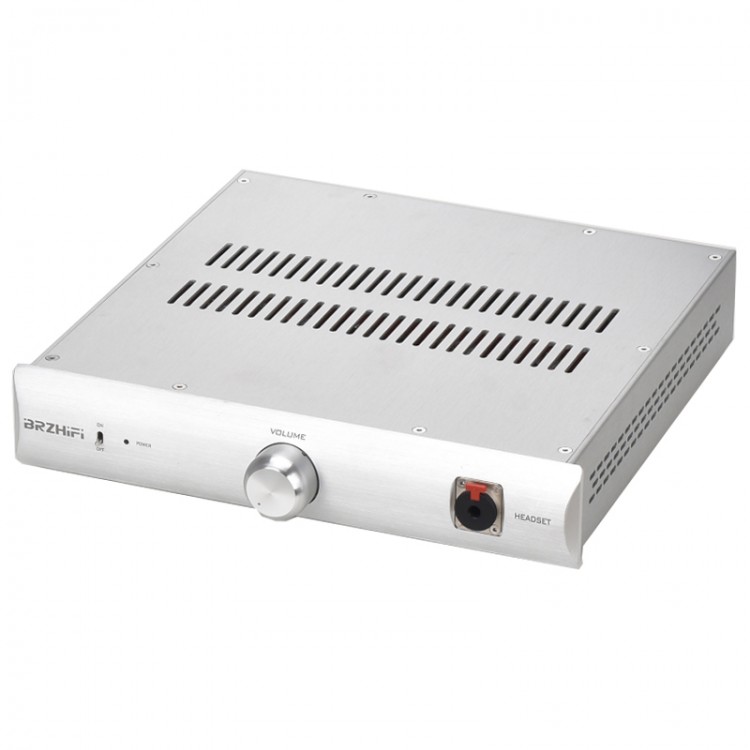

E500 Headphone Amplifier DAC Assembled Field Effect Tube High Transparency Super Pure Sound Quality

E500 Headphone Amplifier DAC Assembled Field Effect Tube High Transparency Super Pure Sound Quality

Features:
- The circuit of this headphone amp based on that for Dynalo.
- Highly transparent and extremely pure sound quality.
- There is ample driving force, the sound quality of this machine is also impressive, pure texture without any impurities. It boasts high-quality sound, high and low gain.
- It can drive various HiFi headphones, showing different timbres. The highly transparent sound is also the highlight.
- Structure: transformer-power supply-amplifying circuit. A thermal bridge is shared between the power supply part and the amplifying circuit, and the thermal bridge also plays a role in isolating interference. Input differential amplifier tube uses a premium field effect tube. The power supply part uses two imported ring-shaped transformers and HiFi capacitors.

Technical Parameters:
- Signal input: 2 x RCA, unbalanced
- Input impedance: RCA: 68kΩ
- Frequency response: 0-50kHz (-0.5dB)
- Dynamic range: >116dB (A weighting)
- Noise level: <-103dBu (A weighting)
- THD+N(1kHz 0.75W at 100Ω): <0.00065%
- THD+N(1kHz 1W at 32Ω): <0.001%
- Channel crosstalk: -107db (1kHz)
- Headphone output: 1 x 6.35mm TRS Jack
- Power supply voltage: 230V AC/ (110V can be customized)
- Power consumption: ≤26VA
- Dimensions: 320 x 62 x 308 mm (WxHxD)
- Output powers: 530mW (600 ohms); 750mW (300 ohms); 1200mW (100 ohms); 1500mW  (50 ohms); 2400mW (32 ohms); 4700mW (8 ohms)
- Whole machine weight: 4.6KG (including a power cord)

Package Included:
- 1 x Set of Headphone Amplifier

Note: It is assembled and ready for use.

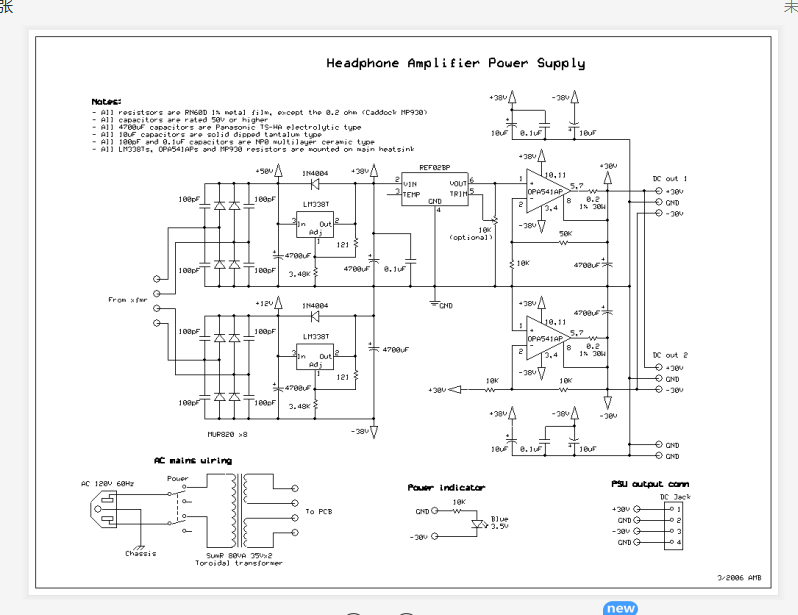

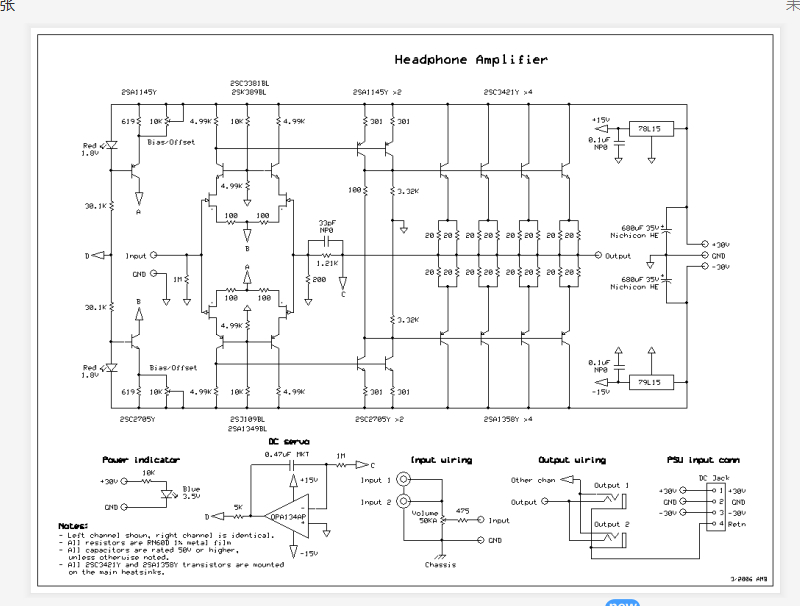

Schematic Diagrams:
