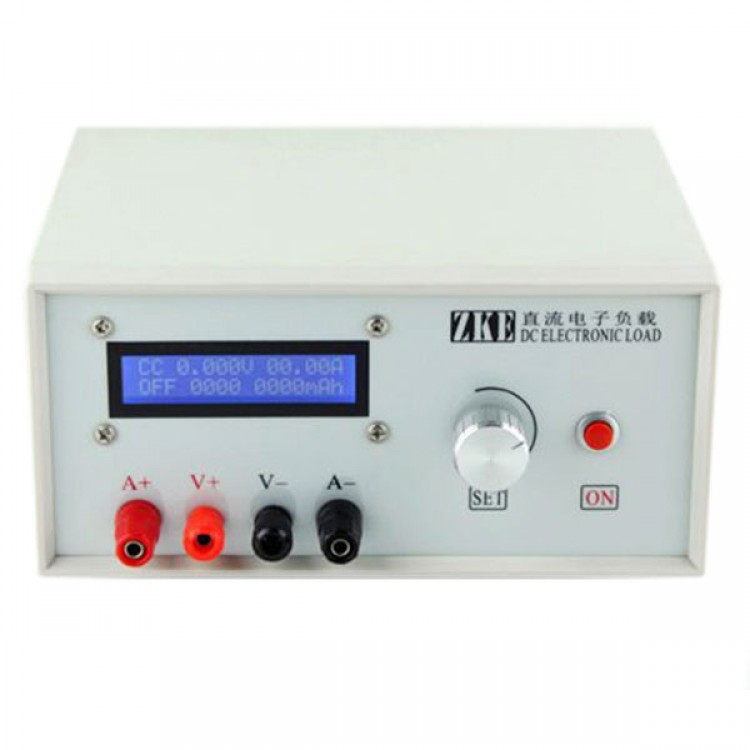

EBD-A10H Multifunction Electronic Load Capacity Tester for Power Battery Discharge Resistance Test 20A

Availability: In stock, usually dispatched in 1 business day

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$89.89	$88.05	$85.30	$81.63	Contact US

EBD-A10H Multifunction Electronic Load Capacity Tester for Power Battery Discharge Resistance Test 20A

PLS Contact us to send you English online software

Specification:

- Input Power (Power Supply): DC 12V 1A

- Voltage range (Volt Range):

1) Low profile: 0.000-4.500V

2) High speed: 4.50-30.00V
- Buy from thanksbuyer to make sure the product is original

- Current Range (Curr Range): 0.10-10.00A (10H) / 0.20 - 20.00A (20H)

- Maximum power (Max Power): 120W / 150W

- Test Mode (Test Mode):

1) constant current (CC): Constant current discharge termination voltage is set to stop after

2) constant power (CP): constant power discharge, to set the termination voltage after stopping

- Suitable for: Batteries and Power

- LCD: voltage, current, power, time, capacity, energy and other test data

- Online Software: connection via a dedicated USB to TTL serial cable
