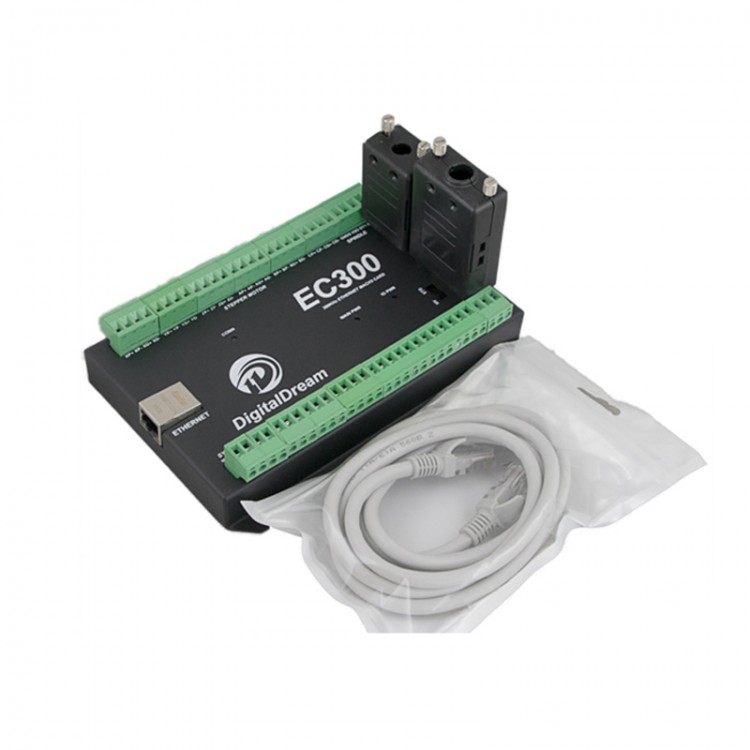

EC300 Ethernet Motion Controller 300KHz 6 Axis CNC Controller for Mach 3 with Ethernet Communication
Description:
The EC300 is a high-performance external motion controller for Mach 3 software, with Ethernet interface, supporting standard MPG and Digital Dream MPG. The device can communicate with a connection to a control computer’s network. The network connection can be built with direct connection or via router/Swith devices.
Specifications:
- Motion control 6Axis, max frequency output 300Khz/Axis;
- Ethernet Connection with Mach 3 Software;
- Main power supply 24VDC, Current should higher than 1A;
- IO Power is 24VDC power supply input, current should higher than 1A(The controller already supply the power for IO port, no need the external power supply for IO port anymore);
- 12 opto-isolated digital input ports, 10 opto-isolated digital output ports;
- 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port);
- ARM motion control chip, Two Relay output;
- Compatible with Standard MPG and also Digital Dream MPG
Package Included:
- 1 x CNC Motion Controller
- 1 x Cable
Note: Please contact us for EC300 User Manual and EC300 DLL File after purchasing. Thank you!
