ECG Simulator LED Display ECG Signal Generator 10-200bpm w/ Built-in Rechargeable Battery

ECG Simulator LED Display ECG Signal Generator 10-200bpm w/ Built-in Rechargeable Battery

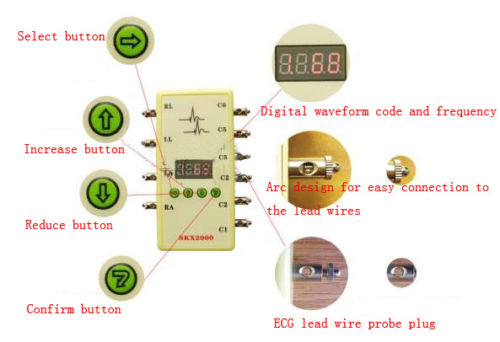

Features:
- Clearly Shows: Normal ECG waveform; “+” “–” triangular waveform
- Built-in Lithium Battery: high capacity battery which can work for long hours and be recharged
- 10 Universal ECG Adapter Connectors: can be connected with a variety of ECG machine and lead wire monitors
- Indicator Shows Status: Charger’s green light indicates charging is completed, the red light indicates low battery
- Protection Function: With lower battery power, the automatic shutdown function will come into use to protect the lithium battery

Waveform Method of Operation:
ECG:
- Heart Rate Setting Range: 10-200 bpm; (Initial Value: 60 bpm)
- Signal amplitude fixed

“+” “–” Triangular Waveform:
- Frequency Range: 10-300 bpm; (Initial Value: 75 bpm)
- Amplitude Range: 0.1-4Mv (10: 0.1mV, 400: 4mV)
- Two modes, Mode 1: Forward waveform, Mode 2: negative waveform; selected by key combinations

Signal Amplitude Setting:
- Amplitude Range: 0.1mV-4mV (10: 0.1mV, 400: 4mV); (Initial Value: 100)
- This amplitude setting will affect all waveforms
- Signal amplitude settings will not affect the ECG waveform amplitude

Package Included:
- 1 x ECG Simulator
- 1 x Charger
- 1 x User Manual
- 1 x Waveform Graph
- 1 x Packing List
- 1 x Quality Certificate

Note:
- Because it is a lithium battery, please not over-discharge.
- For proper use of the charger, the charger voltage must not be higher than 4.2V.
