EDUP EP-AB009 20W High Power Signal Amplifier High Performance WiFi Amplifier 39dBm Wireless Signal Booster

EDUP EP-AB009 20W High Power Signal Amplifier High Performance WiFi Amplifier 39dBm Wireless Signal Booster

Selling Points:
- High power amplifier: Enhance your WIFI signal with a 20W amplifier, ensuring strong connectivity even in remote areas.
- Long distance capability: Use this long-distance repeater to expand your WIFI range, suitable for drones and other devices.
- 2.4GHZ WIFI signal enhancer: Use this 2.4GHZ WIFI signal enhancer to enhance your WIFI signal and ensure connection stability.
- 20W wireless network extender: By using a 20W wireless network extender, maximize your network efficiency and provide reliable coverage.
- Plug and play installation: With plug and play installation, it is easy to set up and use immediately without the need for drivers.

Features:
- Brand new and high quality.
- Low-noise receive gain 2.5dB .
- Led status: Green (transmit) / Red(receive) / Change TX with RX (mix red with green)
- High gain, high value, high performance.
- Wide working voltage 30 - 54V.
- Plug-and-play, easy installation, no driver needed.
- Ideal for increase the 2400-2500MHz frequency devices. Adopt time division duplex (TDD)
- Increase the effective range and coverage area of your WiFi network.
- Maximum output power of 20000mW by the booster.
- The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
- Ideal for use with 2.4GHz wireless LANs, support 802.11b, 802.11g, 802.11n (2.4Ghz mode only).

Specification:
- Frequency: 2400-2500MHz.
- Operation mode: Bi-directional, half-duplex, auto-switching via carrier sensing.
- Ultra low power consumption: 620mA at Pout 36dBm 48V
- Input power: 8dBm (min.); -26dBm (max.)
- Output power: 9 ~ 43dBm
- EVM: 4% at 36dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
- Output power: 20000mW/43dBm nominal for 802.11b/11Mbps
- Connector: SMA, 50ohm
- Transmit gain: 17dB±1 nominal
- Receiver gain: 20dB±1
- Receive noise figure: 2.5dBm nominal
- Operating temperature: -40 to 70℃
- Operating humidity: up to 95% relative humidity
- Material: cast aluminum
- Size: 225mm x 12mm x 24mm
- Product weight: 190g

Precaution:
- Make sure all power supply to the booster and the AP/Router unit be disconnected before removing or changing antenna.
- When finishing connecting the booster and the AP/Router, restore power supply first to the booster and then to AP/Router subsequently.
- Waterproof, lightning protection equipment should be attached to outdoor antenna.
- Keep away from heat and keep ventilated.
- Please comply with local regulations of electromagnetic radiation.

Note:
- Power supply (not included) requires 12V/5A.
- If the output power is greater than 5W or above, it is recommended to enhance heat dissipation, such as increasing heat sinks or adding fans.
- When connecting, you must screw the antenna first, then connect the upper and front -end faithful equipment, and finally supply power.

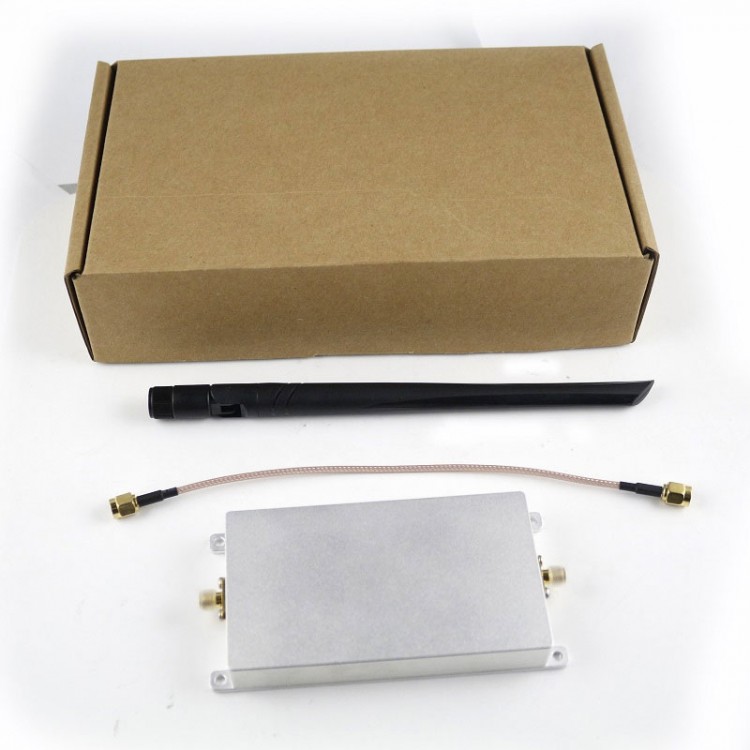

Package Included:
- 1 x WiFi Amplifier
- 1 x Antenna
- 1 x Connection Cable
