| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $317.57 | $311.09 | $301.37 | $288.40 | Contact US |
EFX12 12-channel Mixing Console Live Sound Audio Mixer with Built-in 24bit Effects for Stage
Specifications:
- Frequency response: microphone/line input to any output, ± 1.5dB, 20Hz-20kHz
- Total harmonic distortion + noise: microphone sensitivity -30dB, mix output +14dBu, <0.02% at 1kHz
- Noise: microphone EIN (greater gain), -127dB (primary impedance 150Ω)
- Crosstalk between channels (1kHz): channel mute: >90dB; Slider off (reference sign +10): >90dB; AUX transmit port is closed: >83dB
- EQ (Mono Input): HF: 12kHz ±15dB; MF (Sweep): 150Hz-3.5kHz, ±15dB; LF: 80Hz ±15dB; Q (MF): 0.8
- Power consumption: AC power supply: less than 35W
- Working temperature: 5°C to +40°C
- Input/output Level: Microphone Input: +15dBu; Line input: +30dBu; Stereo input: +30dBu; Mix output: 20dBu; Headphone output (150Ω): 300mW
- Input/output impedance: microphone input: 2kΩ; Line input: 10kΩ; Stereo input: 65kΩ and 35kΩ; Output impedance: 150Ω and 75Ω
- Dimensions: 432 x 91 x 362mm/17 x 3.6 x 14.3"
- Weight: 5.8kg/12.8lb

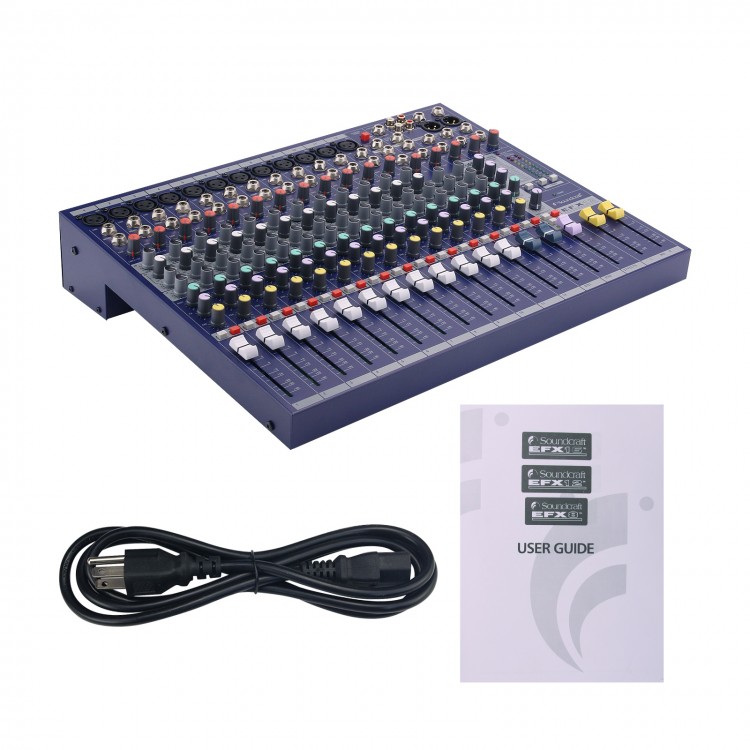

Package Included:
- 1 x Audio Mixer
