Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $102.85 | $100.75 | $97.60 | $93.41 | Contact US |

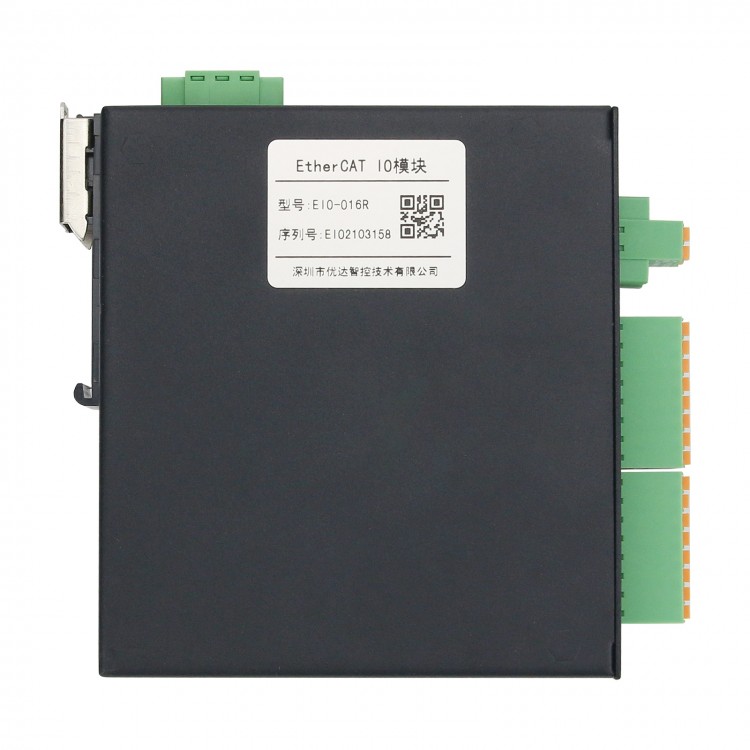

EIO-016R PLC Digital Output Module 16-Channel Relay Output Supports For EtherCAT Without Digital Input
Technical Parameters:
Digital Output:
- Number of channels: 16
- Output type: Relay
- Rated level: 30VDC/250VAC
- "1" signal level: the relay dry contact is closed
- "0" signal level: the relay dry contact is disconnected
- Maximum output current (single channel): 1.0A
- Maximum impulse current (single channel): 2.0A
- Maximum total output current: 16.0A
- Port protection: None
- Isolation withstand voltage: 3750Vrms (MIN)
Physical Characteristics:
- Power supply voltage: 24VDC (-15%/+20%)
- Communication protocol: For EtherCAT
- Communication rate: 100Mbps
- Address configuration: automatic scanning
- Product size: 35 x 105 x 116mm/1.4 x 4.1 x 4.6" (WxDxH)
- Installation method: DIN rail installation
Package Included:
- 1 x PLC Digital Output Module
