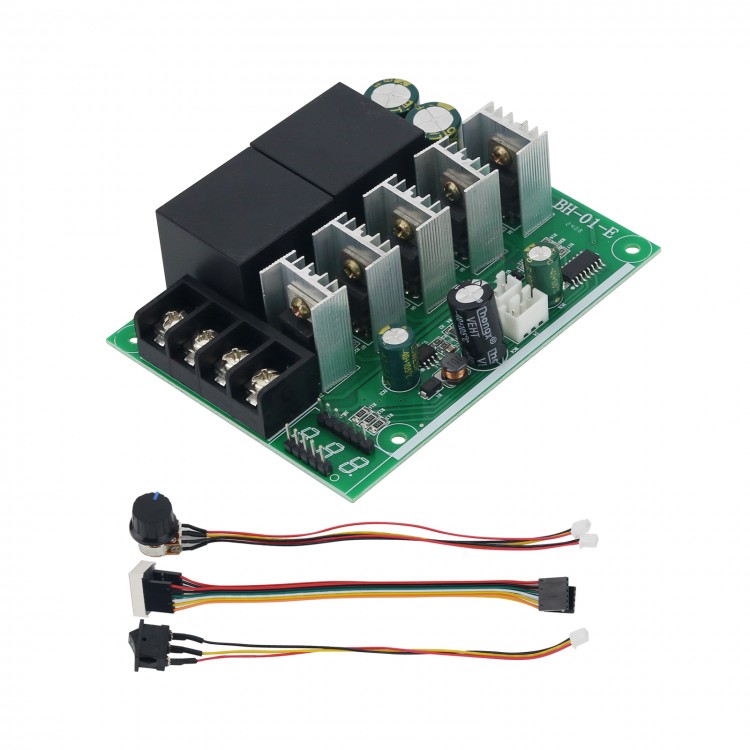

EQ839 40A DC Motor Speed Controller Forward & Reverse Rotation With Digital Display 12V 24V 36V
Advantages:
- 40A high-power speed controller
- Positioning with 0-100 percent digital display
Parameters:
- Product name: EQ839
- Input voltage: DC10-55V (equal to the rated voltage of motor)
- Output voltage: linear under load
- Maximum current: 60A
- Continuous current: 40A
- Speed regulation type: current regulation
- Speed regulation method: potentiometer (linear)
- Support motor: DC brushed motor
- Forward & Reverse: Support
- Speed adjustment range: 0-100%
- Control frequency: 15KHZ
- Connection type: terminal
- Knob specification: 100K (with switch)
- Wiring type: Barrier terminal block
- Product net weight: 170g

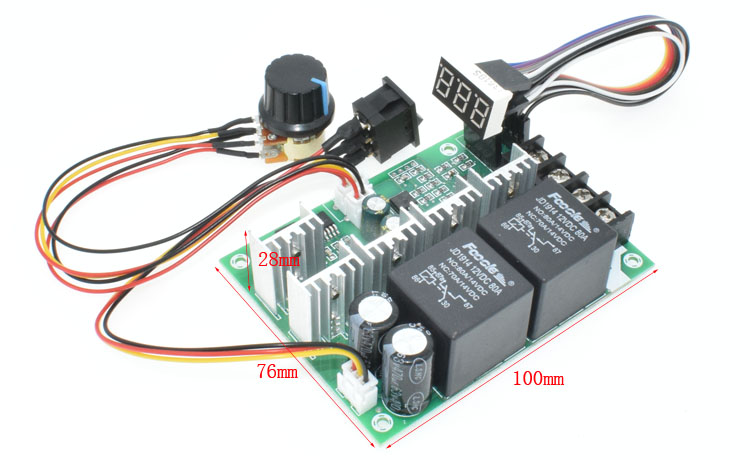

- Motherboard size: 100MM*76MM*28MM
Attention:
- Digital display is for the percentage 0-100 of motor full speed, not the actual speed of the motor.

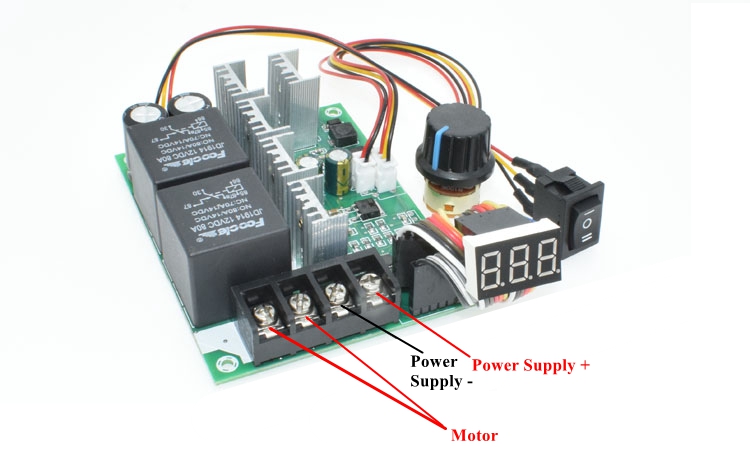

- The input voltage must be divided into positive and negative poles.
- The input voltage is DC 10-55V, which must be equal to the rated voltage of the motor.
Package Included:
- 1 x DC Motor Speed Controller
