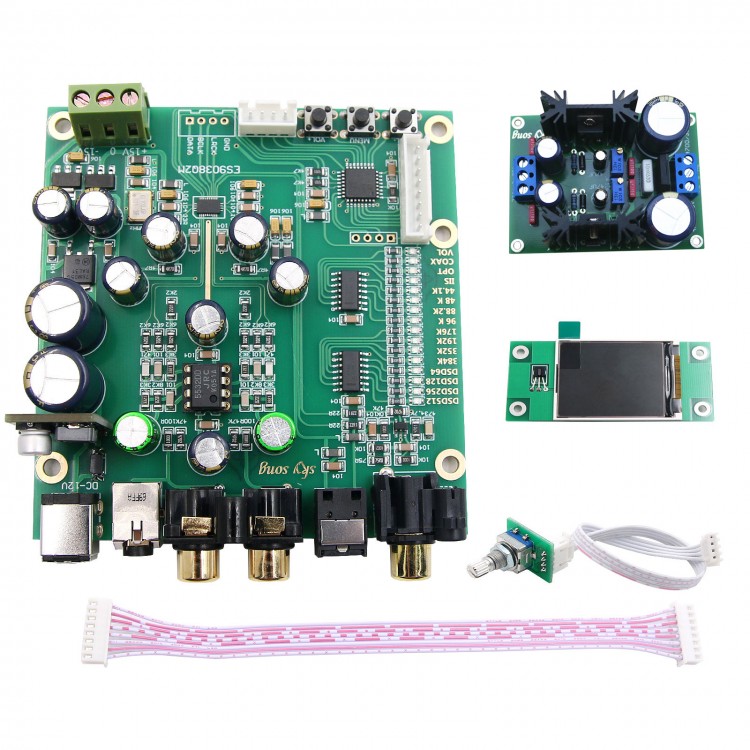

ES9038Q2M DAC Board Decoder + TFT Screen + Power Supply For IIS DSD Optic Fiber Coaxial 384K DOP128

Availability: In stock, usually dispatched in 1 business day

  • Price:$52.93
  • Price in reward points: 529 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.87 $50.81 $49.22 $47.11 Contact US
Quantity:

ES9038Q2M DAC Board Decoder + TFT Screen + Power Supply For IIS DSD Optic Fiber Coaxial 384K DOP128

Precautions:

- Certain electronic knowledge is required for product installation and use.
- The ES9038Q2M decoder board needs positive and negative dual power supply. AC power supply cannot be input. It can be changed to be powered by single power supply, and the pad j1024 should be short-circuited.
- Upgrade to immersion gold PCB.
- ES9038Q2M has been debugged.

Features:
- Support coaxial and optical fiber input, and support PCM44.1Khz-384Khz/DSD64, DSD128 hard solution (Optical fiber cannot support 384khz)
- Supports USB interface I2S input PCM44.1KHZ-384KHZ/DSD64, DSD128, DSD256, DSD512
- All-in-one PCB can display frequency, volume, channel and digital filter through LED when used without display
- All-in-one PCB with buttons to adjust volume and encoder to adjust volume interface
- Default 5532DD op amp, using the original gold-plated op amp seat, durable
- High-quality gold-plated RCA seat, headphone output interface
- Double-layer immersion gold PCB, high-grade oxidation resistance
- Support for Apple remote control to adjust volume, input channel and digital filter
- This version uses capacitors for Panasonic FC series, non-polar output capacitors for Nichicon
- 120-level volume control

Power Supply Board:

- Use semiconductor lm317 for voltage adjustment
- The power supply board supports 5-25V dual AC input.
- Voltage positive and negative 1.5-30V adjustable

Package Included:
- 1 x Set of DAC Board

Note:
- An encoder is included in the package.
