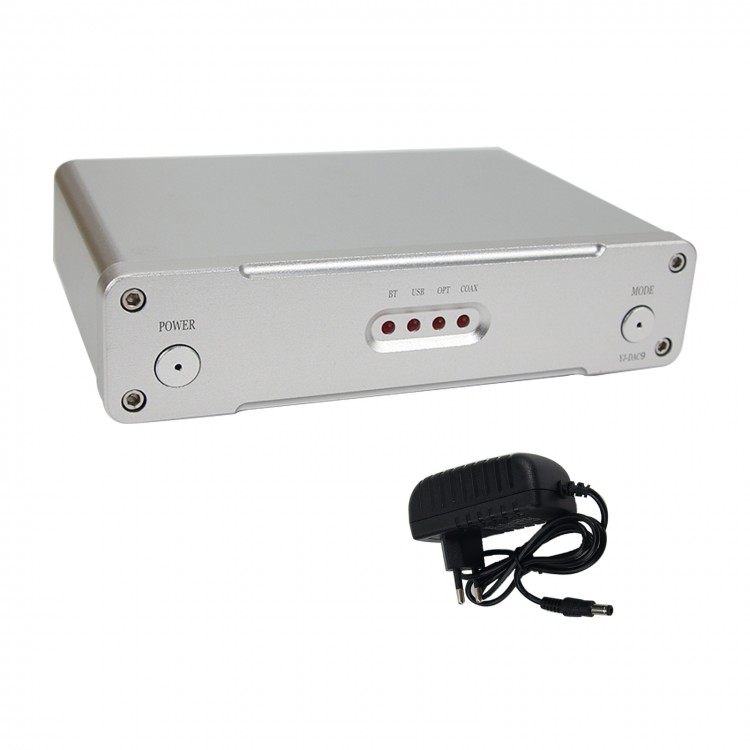

ES9038Q2M HiFi Bluetooth 5.0 DAC Bluetooth Decoder Assembled For Optic Coaxial USB Inputs YJ-DAC9
Features:
- Main circuit of electrolytic capacitor signal made in Taiwan, and main filter capacitors use imported special capacitors to ensure a strong source of continuous power support.
- Resistors are five-ring metal resistors, and main circuit uses high-precision chip resistors to ensure a good signal-to-noise ratio.
- PCB uses 1.6mm thick RF4 sheet, 2.0oz copper, spraying full process, to ensure good passing performance of large and small current. First-class PCB quality.
- Adopt Taiwan pure copper (brass) plated with 24K gold; Plug-in RCA seat.
- OPA1611 and OPA1612 used as op amp.
- USB adopts imported chip for XMOS208.
- Chassis is made of aviation-grade aluminum alloy.
Basic Parameters:
- Voltage: DC 9V (with adapter 100V-240VAC to 9VDC)
- Product Size: 103 x 150 x 40 mm (LxWxH)
- Net Weight: 0.6kg
Supported Inputs:
- Coaxial: PCM44.1k-192k, 24bit/DOP, DSD64
- Optical fiber: PCM44.1k-192k, 24bit/DOP, DSD64
- USB: PCM44.1k-384k, 32bit/DSD64, DSD128, DSD256
- Bluetooth module adopts QCC3008 supporting for APTX
Package Included:
- 1 x Set of Bluetooth DAC
Note: It is assembled and ready to use.
