Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $134.26 | $131.52 | $127.41 | $121.93 | Contact US |

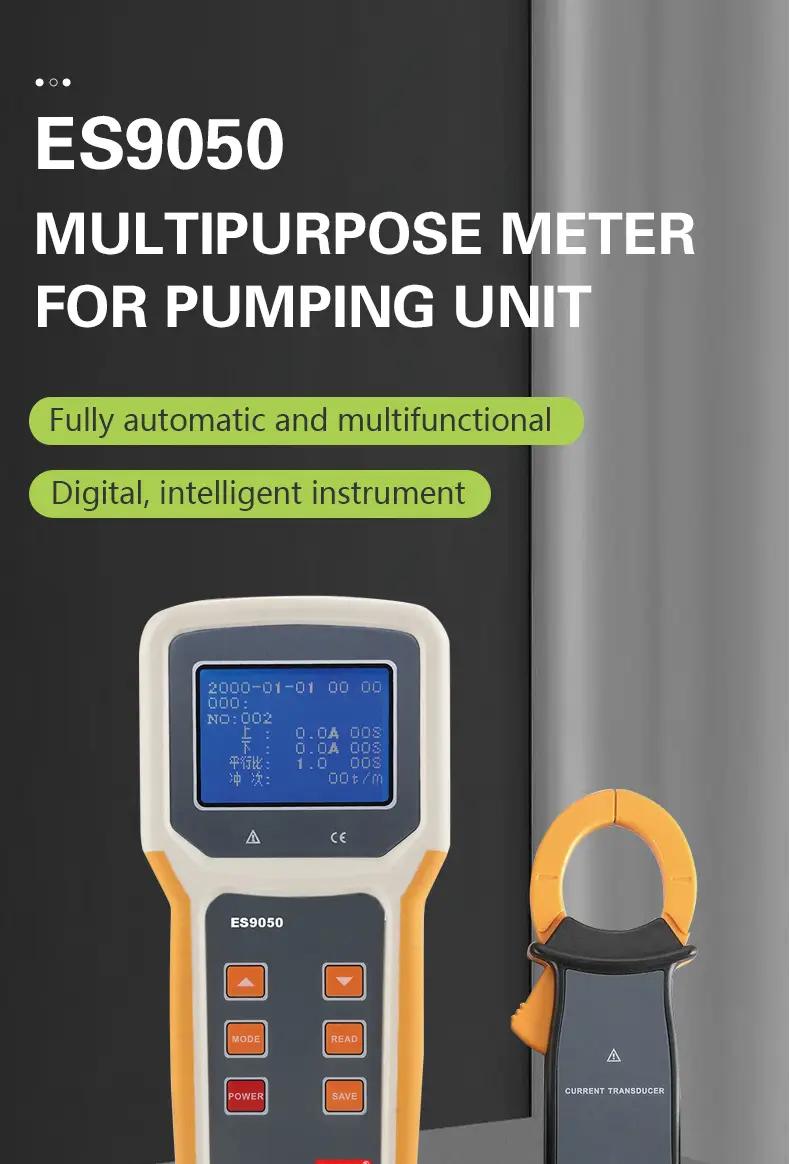

ES9050 AC0-700V 0-300A Pumping Unit Multimeter Digital Smart High Precision Patrol Tester for Oil Field On-site Testing
Description:

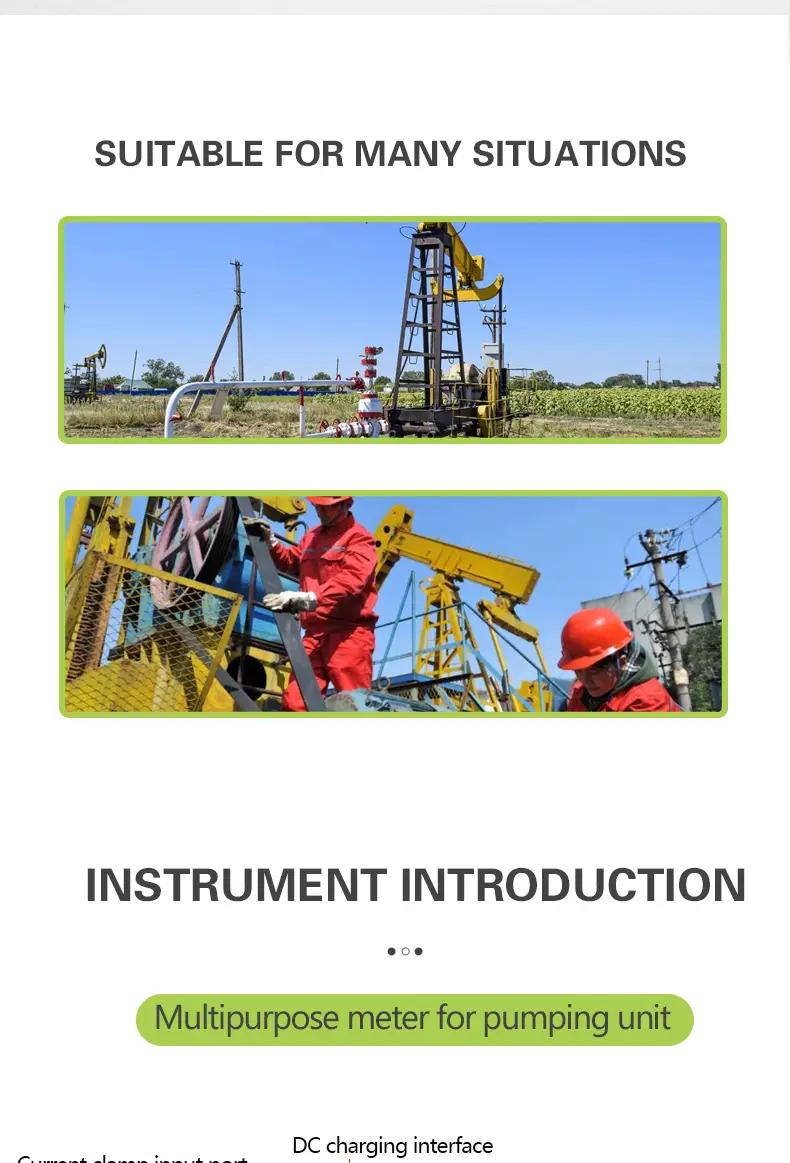

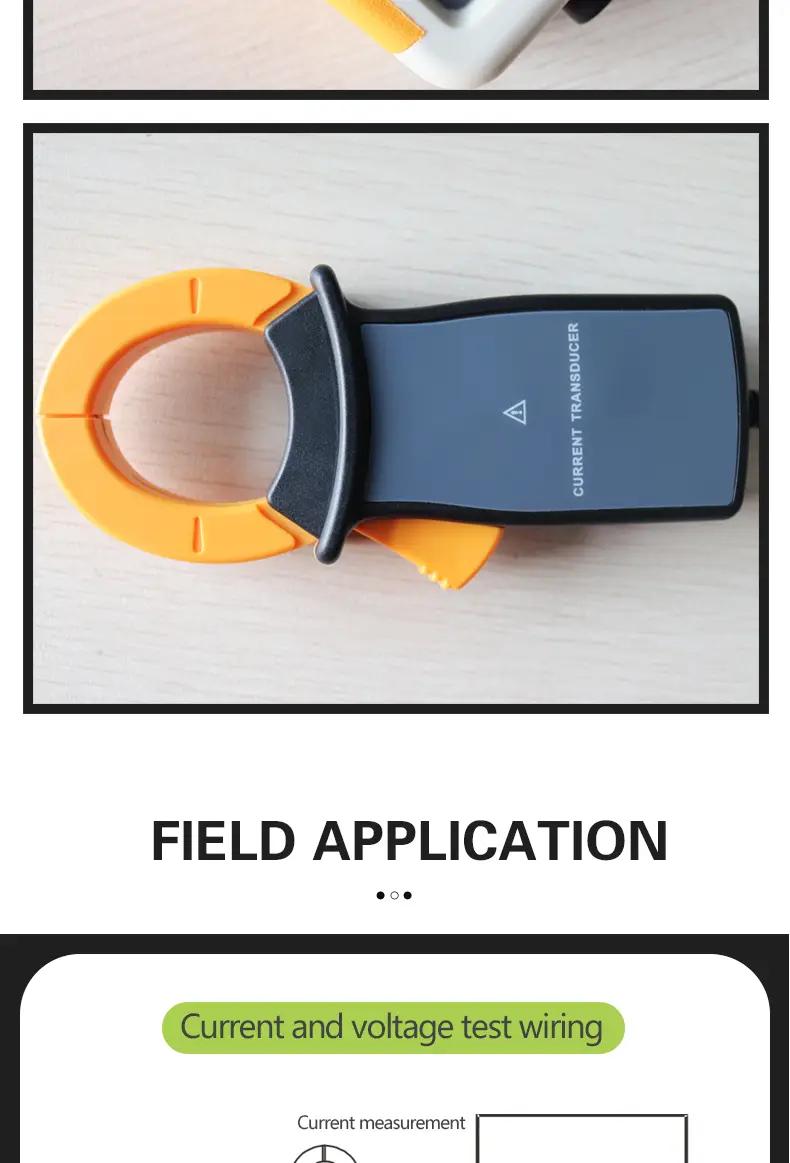

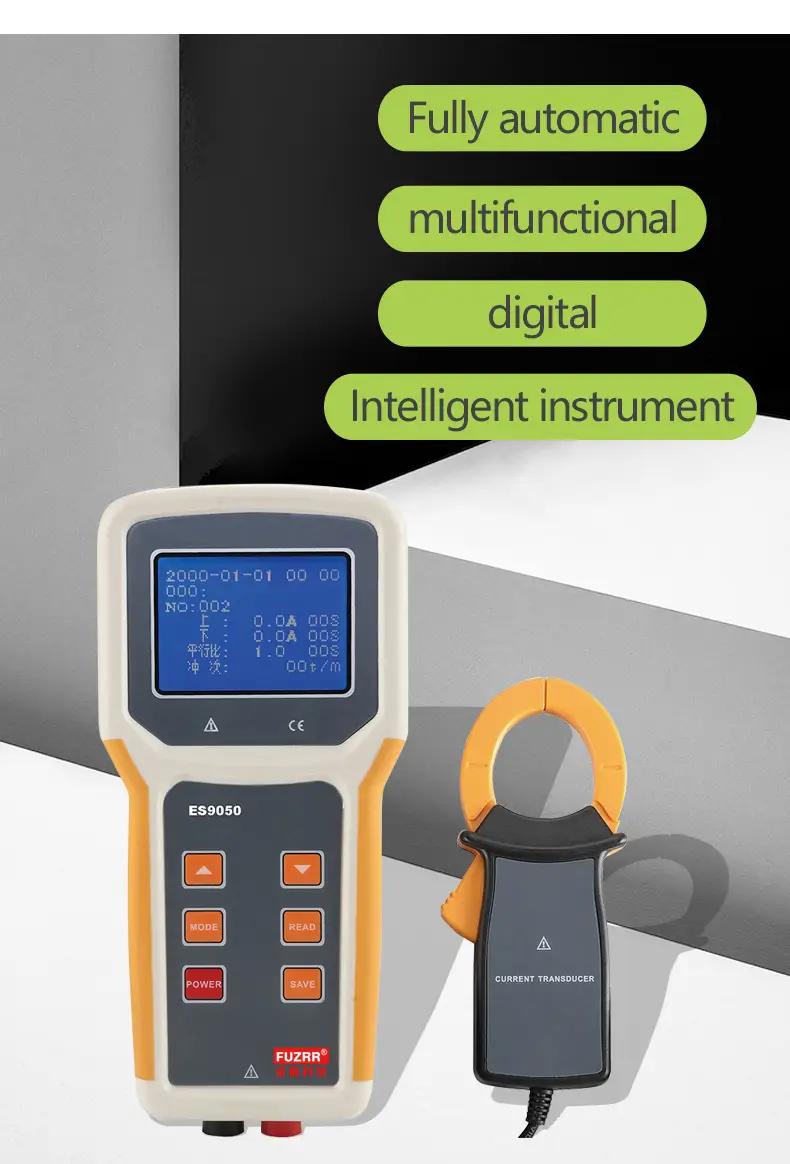

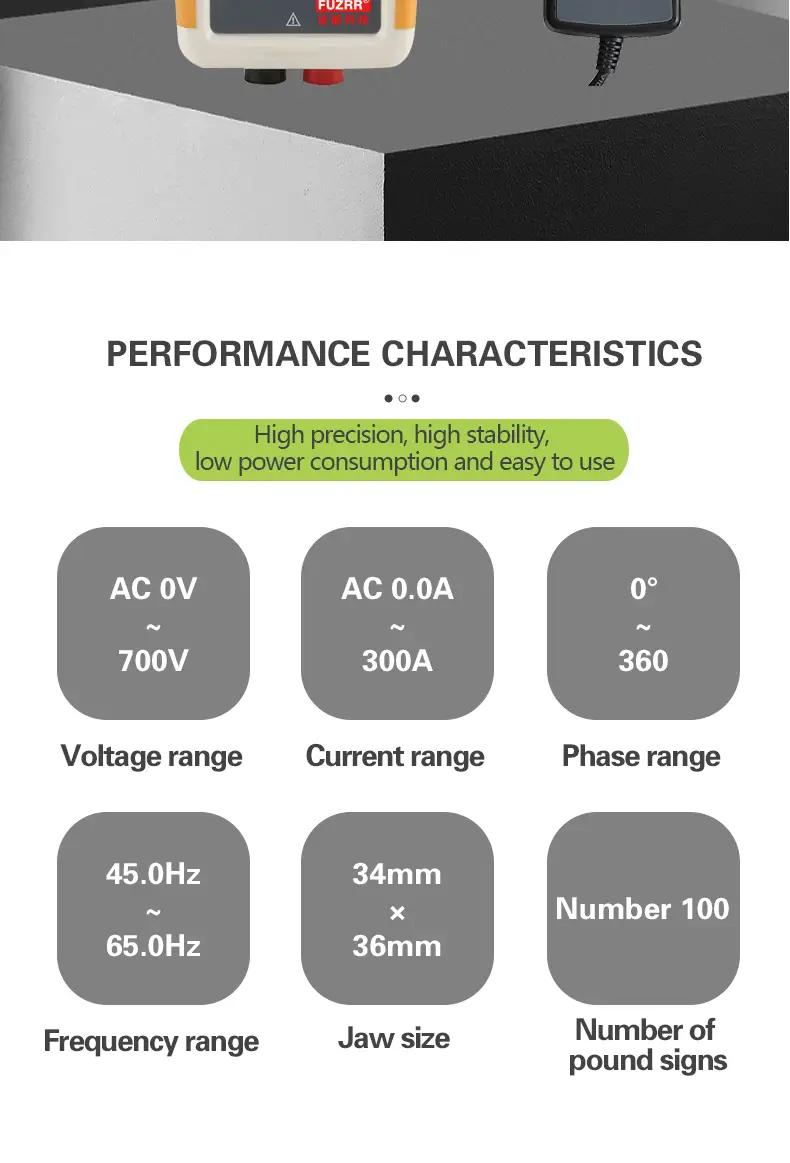

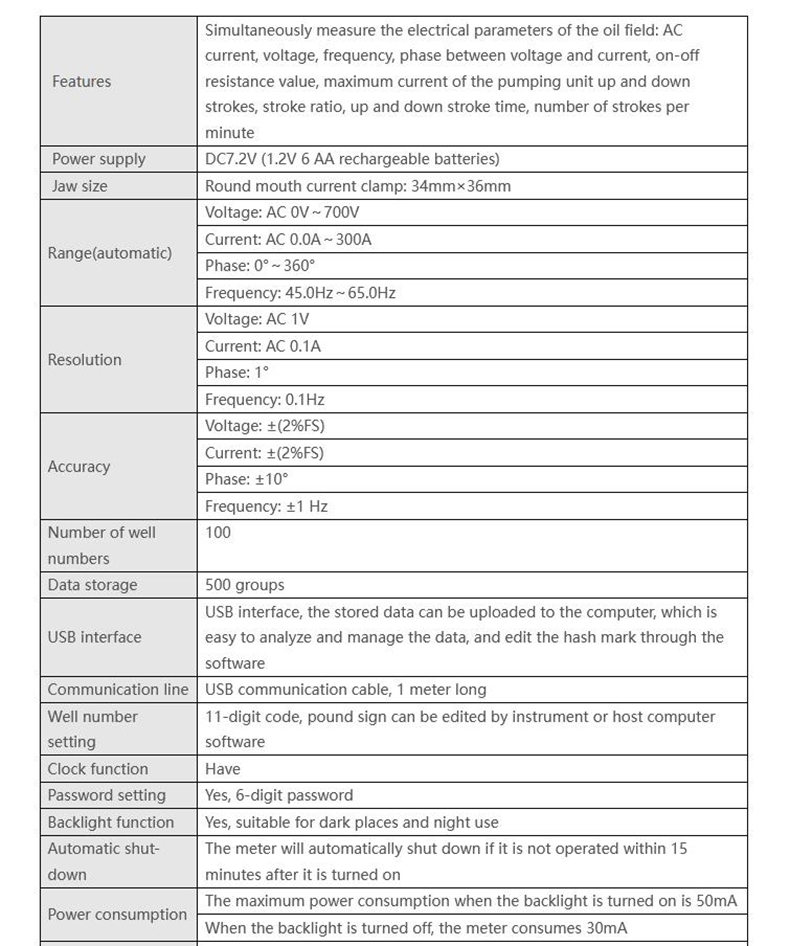

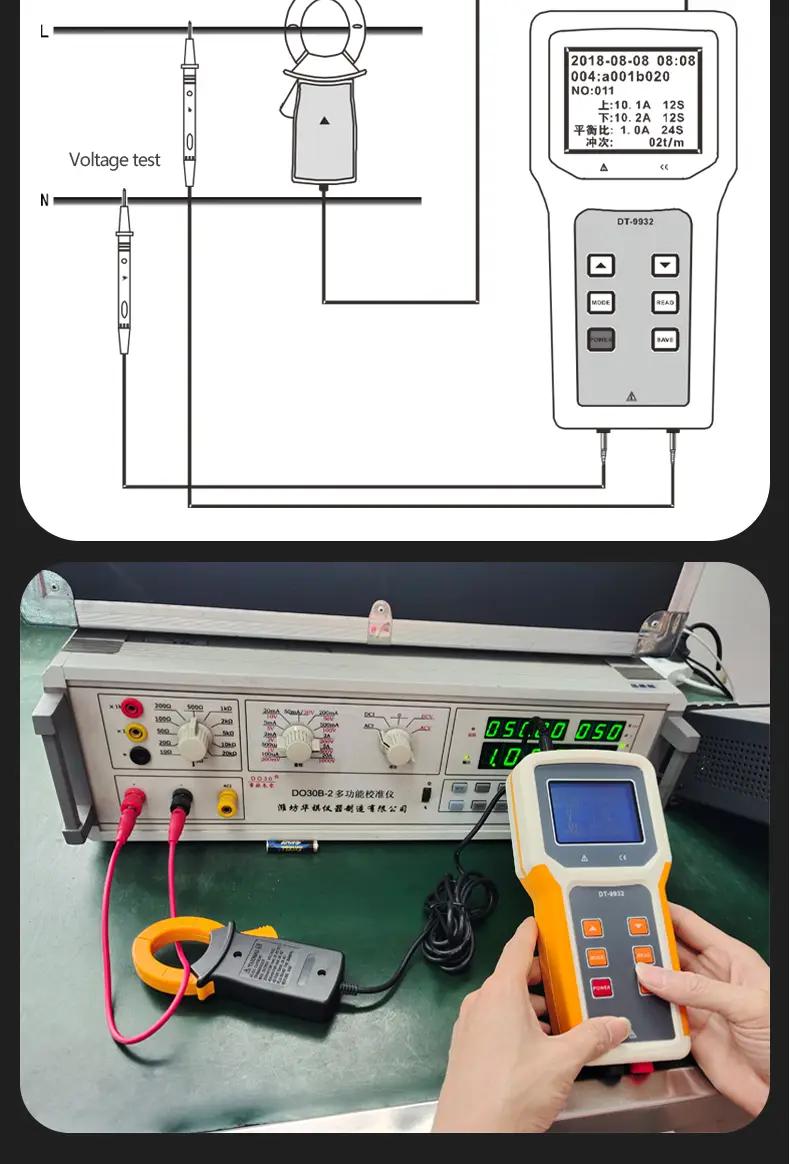

- ES9050 pumping unit multimeter is a fully automatic, multi-function, digital and intelligent instrument specially developed by our company for field testing in oil fields. It has the characteristics of high precision, high stability, low power consumption, and easy use. It can measure the power consumption parameters of the oil field at the same time: AC current, voltage, frequency, phase between voltage and current, maximum current of the pumping unit up and down stroke, stroke ratio, up and down stroke time, and the number of strokes per minute, thereby judging the work of the pumping unit It provides a safe, accurate and convenient way for electricity inspectors, oil field pumping unit commissioning personnel, engineering technicians, electricians, oil production engineers, and metering personnel to monitor the electrical parameters and electrical balance of pumping unit wells at any time on site. New oilfield instrumentation.

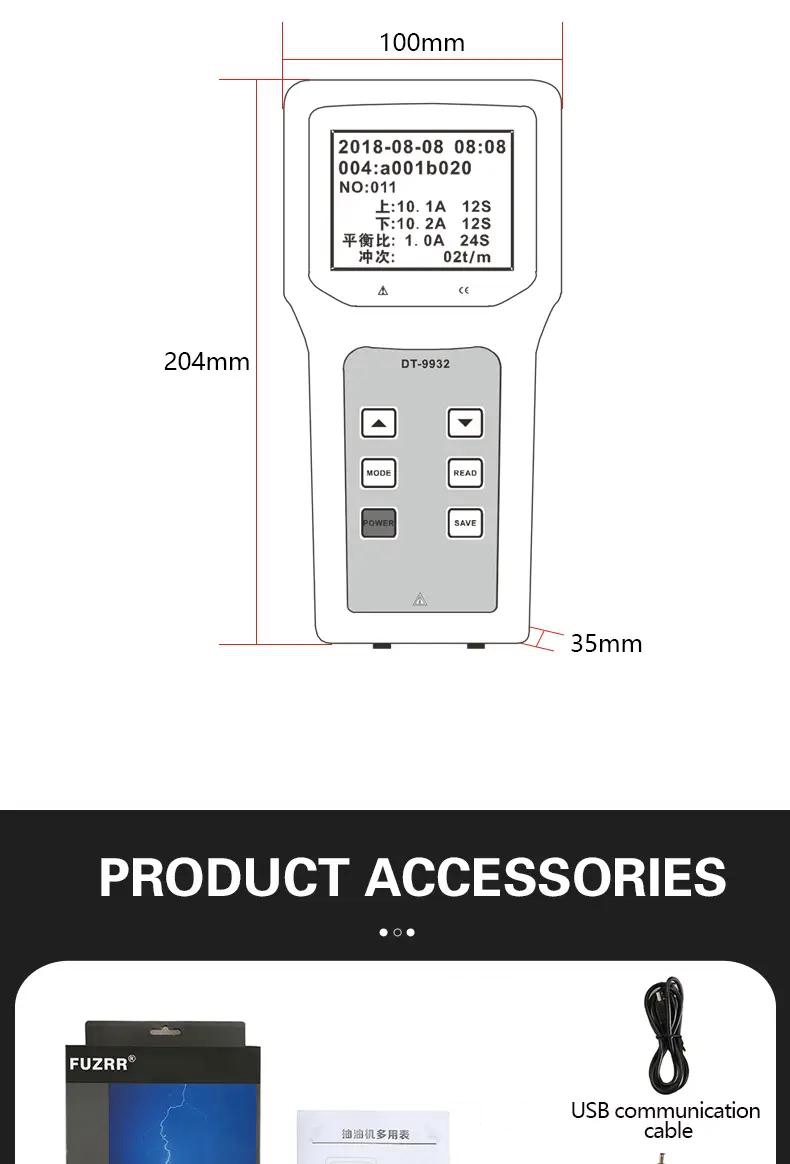

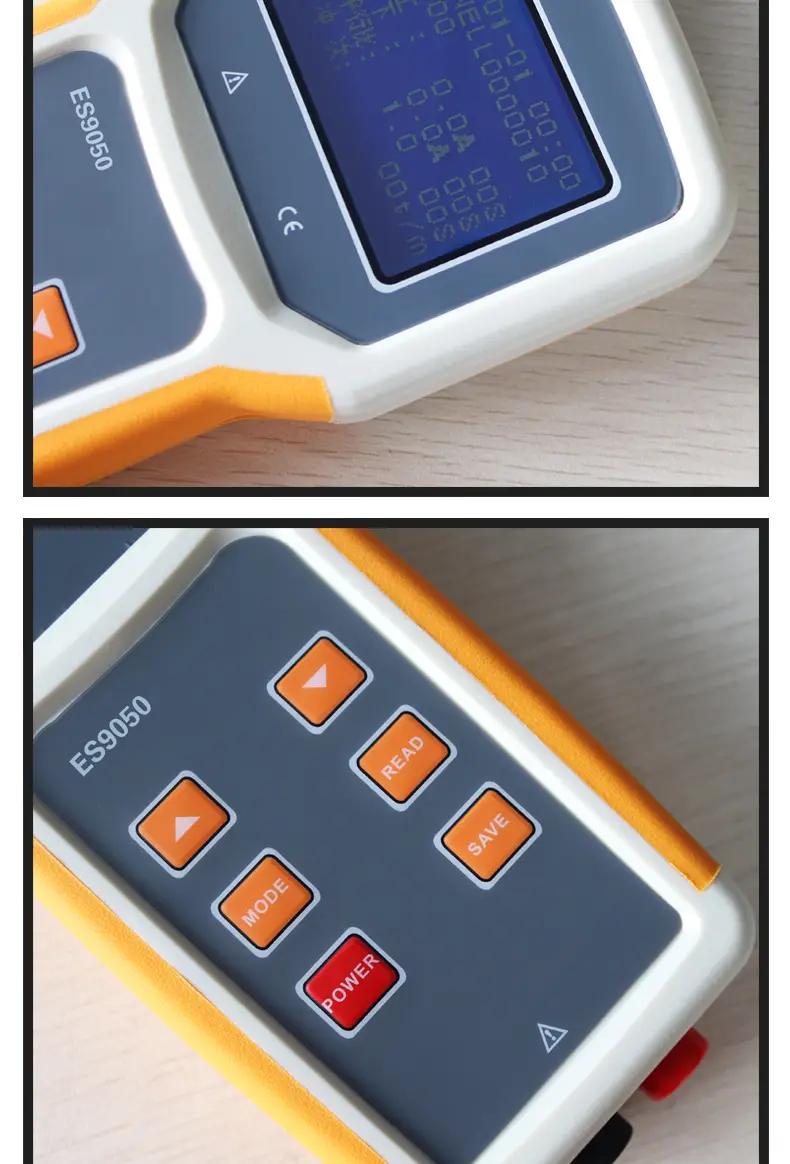

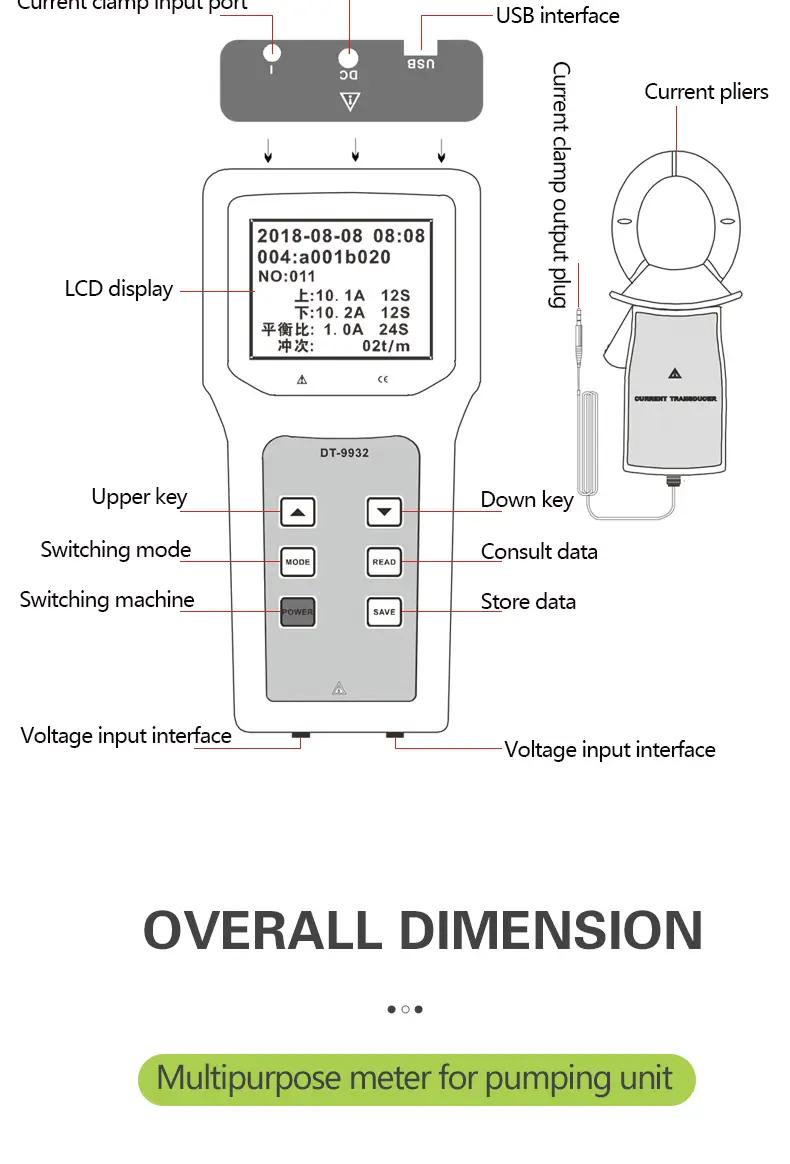

- ES9050 pumping unit multimeter uses the latest materials to design and manufacture shell molds, equipped with shock-proof, anti-skid, high-insulation sheaths, and adopts LCD display. The meter is equipped with a DC charging interface and a USB interface, which can store 500 sets of data. The stored data can be uploaded to the computer through the system software, which is convenient for leaders to query, and realize historical data query, reading, analysis, saving, reporting, printing, etc. At the same time, the instrument also has the function of administrator setting, password entry, including clock setting, pound sign setting, and password setting.

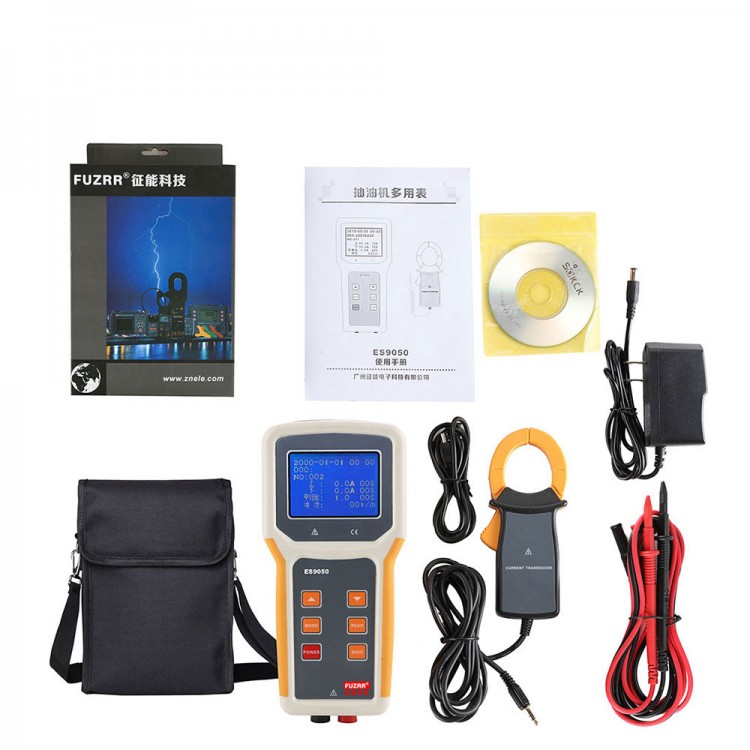

Package Included:

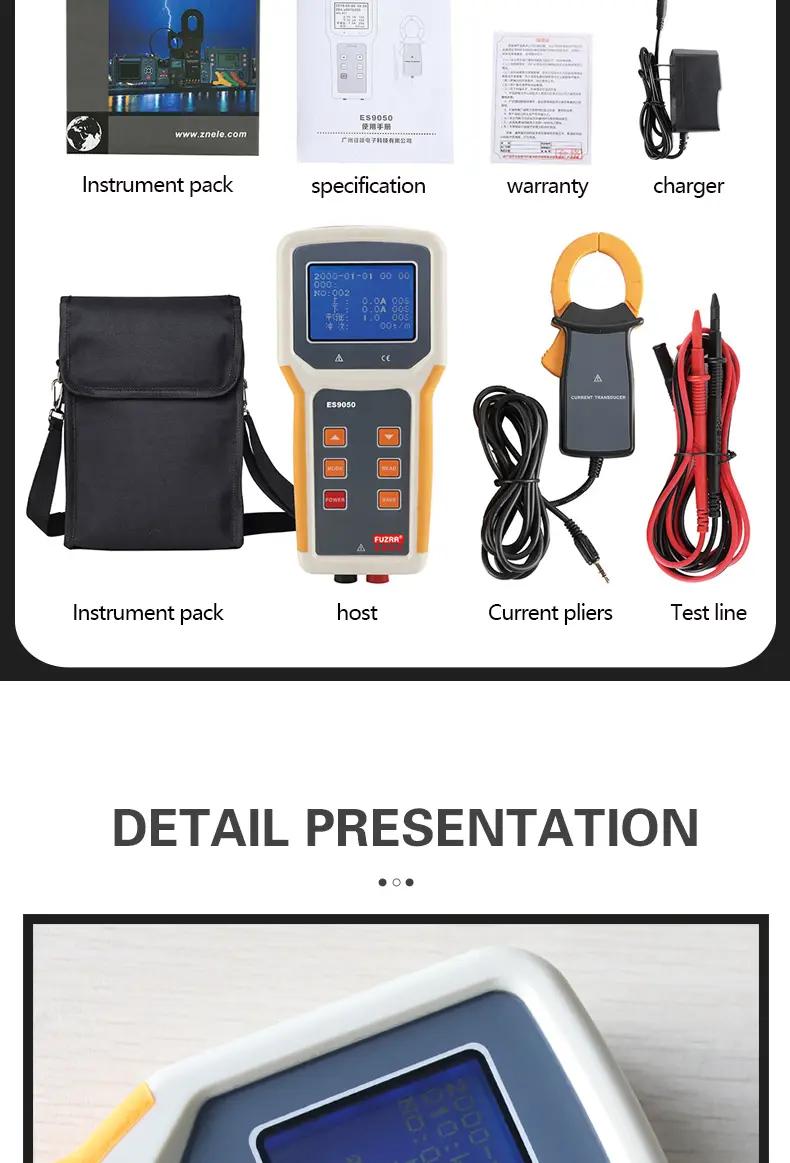

- 1 x Set of ES9050 Pumping Unit Multimeter
