ESP32-C6-DevKitC-1 Development Board with 8MB SPI Flash Wifi Bluetooth LE Zigbee Thread Functions
Attention:
- At present, it has not been calibrated by ADC and the ADC function is not recommended.
Version Introduction:
- Product name: ESP32-C6-DevKitC-1
- Order number: ESP32-C6-DevKitC-1-N8
- Equipped with module model: ESP32-C6-WROOM-1-N8
- Flash: 8MB
- PSRAM: NA
- Antenna type: PCB built-in antenna
Description:

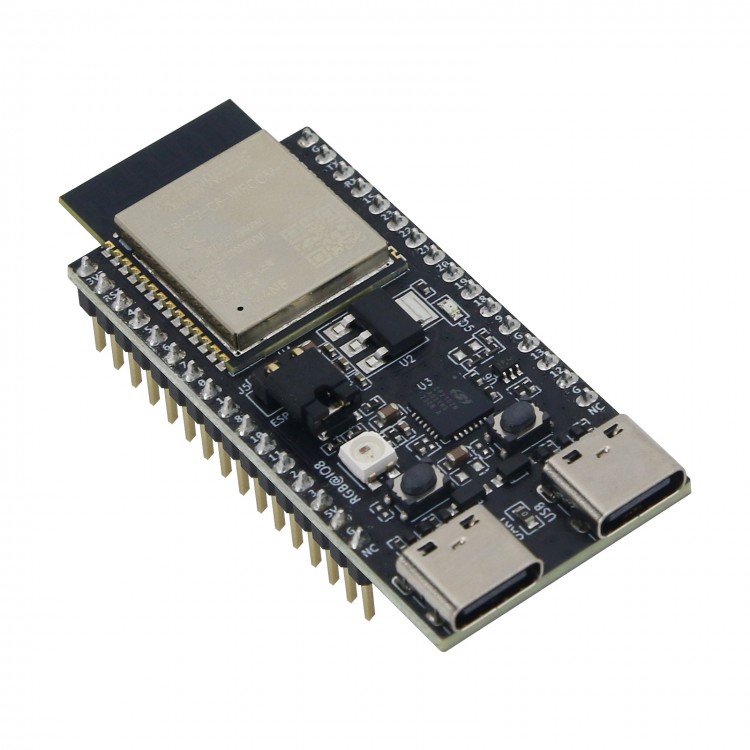

ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1(U), a general-purpose module with a 8 MB SPI flash. This board integrates complete Wi-Fi, Bluetooth LE, Zigbee, and Thread functions.

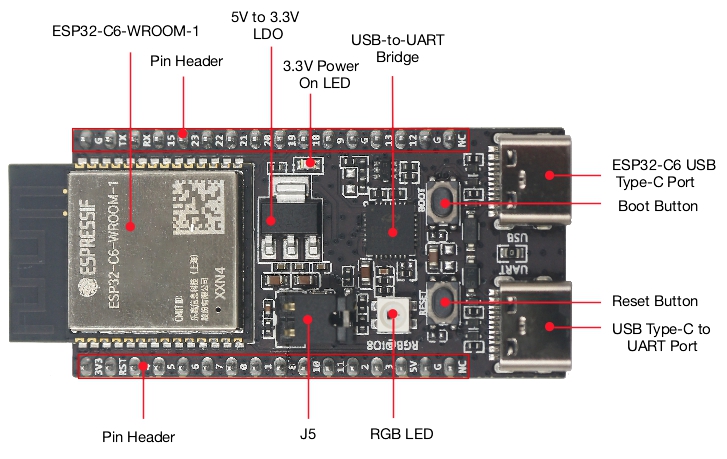

Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard.
Package Included:
- 1 x Development Board
User Guide:
https://docs.espressif.com/projects/espressif-esp-dev-kits/en/latest/esp32c6/esp32-c6-devkitc-1/user_guide.html
