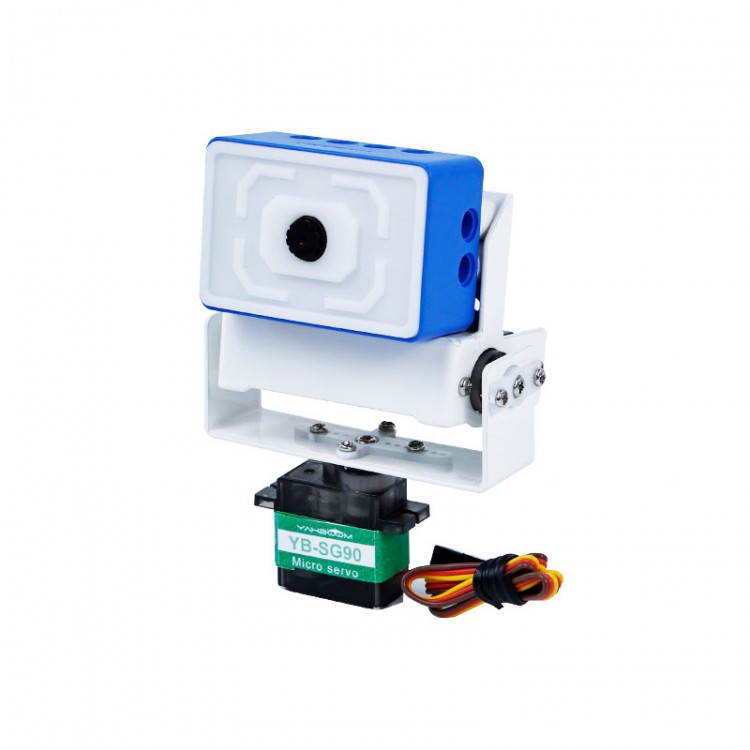

ESP32-S3 2MP WiFi Camera Module AI Vision Module Video Transmission Module + 2DOF Motorized Gimbal

ESP32-S3 2MP WiFi Camera Module AI Vision Module Video Transmission Module + 2DOF Motorized Gimbal

Description:
The ESP32-WiFi video transmission module is equipped with an ESP32-S3 chip and a 2MP camera. Once powered on, it automatically broadcasts a WiFi hotspot (AP mode). It also supports client mode (STA mode), allowing it to connect to an existing WiFi network. By connecting a smartphone, users can view real-time video streams.

The module communicates with microcontrollers such as STM32 and Ar-duino via a serial interface. A remote control app for smart cars is provided, enabling users to control the vehicle and an optional 2-DOF gimbal, while displaying the live video feed captured by the module.

It also comes with built-in AI vision recognition examples, including color recognition, face detection, and QR code detection, providing developers with a complete solution for remote AI visual applications.

Features:

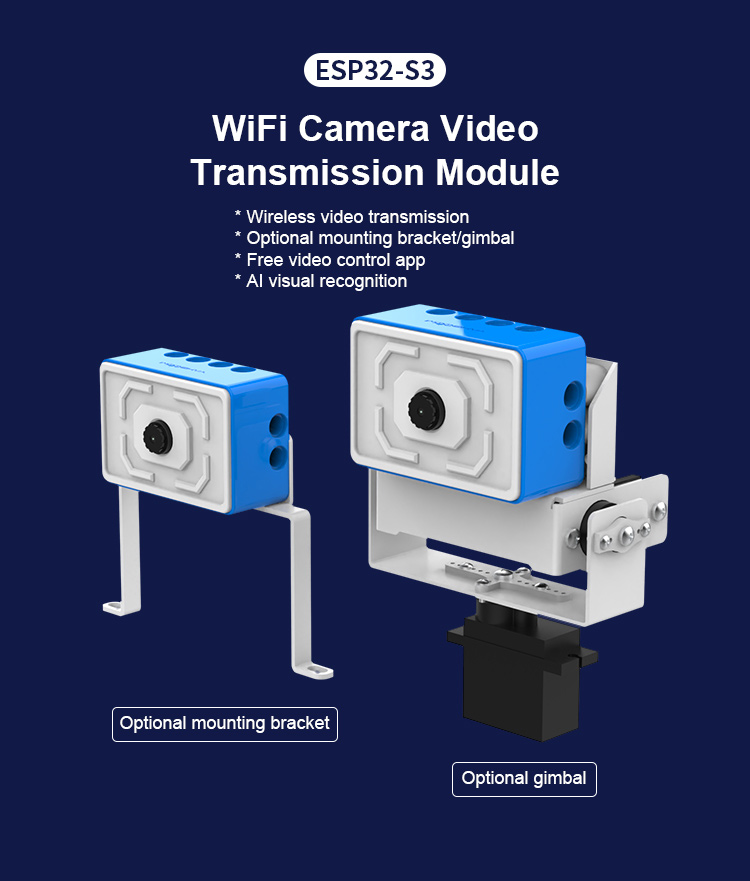

WiFi Camera Video Transmission Module
* Wireless video transmission
* Optional mounting bracket/gimbal
* Free video control app
* AI visual recognition

WiFi Real-Time Video Transmission
* The ESP32-WiFi video transmission module supports dual-mode network communication. By connecting to its WiFi hotspot, users can access a specific webpage or use a mobile app to monitor the high-definition camera feed in real time.

AI Intelligent Visual Recognition
* The ESP32-WiFi video transmission module is equipped with a built-in color threshold segmentation algorithm and a lightweight convolutional neural network. These two algorithms enable the vision module to accurately recognize various colors, faces, QR codes, and other objects within its field of view. Additionally, developers can switch the visual recognition target via serial commands.
* This product supports a wide range of AI vision tasks, including pet detection (cats and dogs), human recognition, color detection, face detection, QR code recognition, and visual line tracking.

Powerful Compatibility
* It can be connected to microcontroller platforms such as STM32, micro:bit, Ar-duino, and Raspberry Pi Pico. We provide source code and debugging software for multiple platforms to support learning and development.
* In addition to microcontroller platforms, the module is also compatible with single-board computers such as Raspberry Pi 5, NVIDIA Jetson series, and Horizon RDK.

Built-in ESP32 Chip
* The ESP32-WiFi video transmission module is based on the ESP32-S3 platform and supports 2.4GHz WiFi wireless transmission. It enables real-time video streaming and remote control commands.

High-Quality SMD Antenna
* With enhanced signal stability, excellent anti-interference capability, and strong penetration, the video transmission range can reach up to 20 meters.

Remote Control App
* The app is for iOS and Android platforms.
* For iOS users, search for "Yahboom Cam" in the App Store.
* It also supports camera monitoring via web browser.

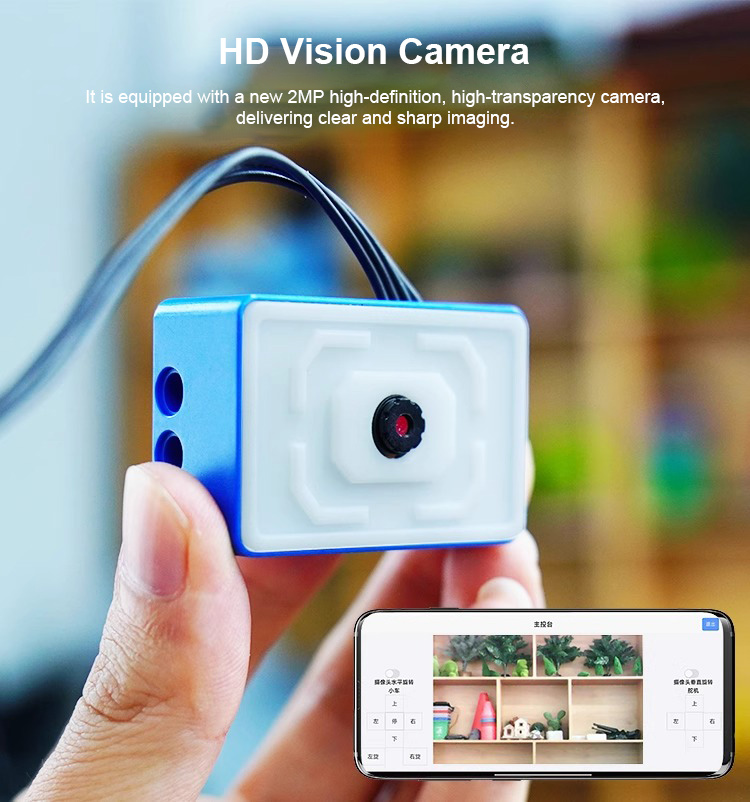

HD Vision Camera
* It is equipped with a new 2MP high-definition, high-transparency camera, delivering clear and sharp imaging.

Dual Working Modes
* The ESP32-WiFi video transmission module supports AP mode and STA mode. It can flexibly switch between the two modes or enable both simultaneously based on application needs.

Smart Transmission for Easy Use
* Connect the module to a 5V power supply, then use your smartphone to connect to the module's hotspot and view the video feed.

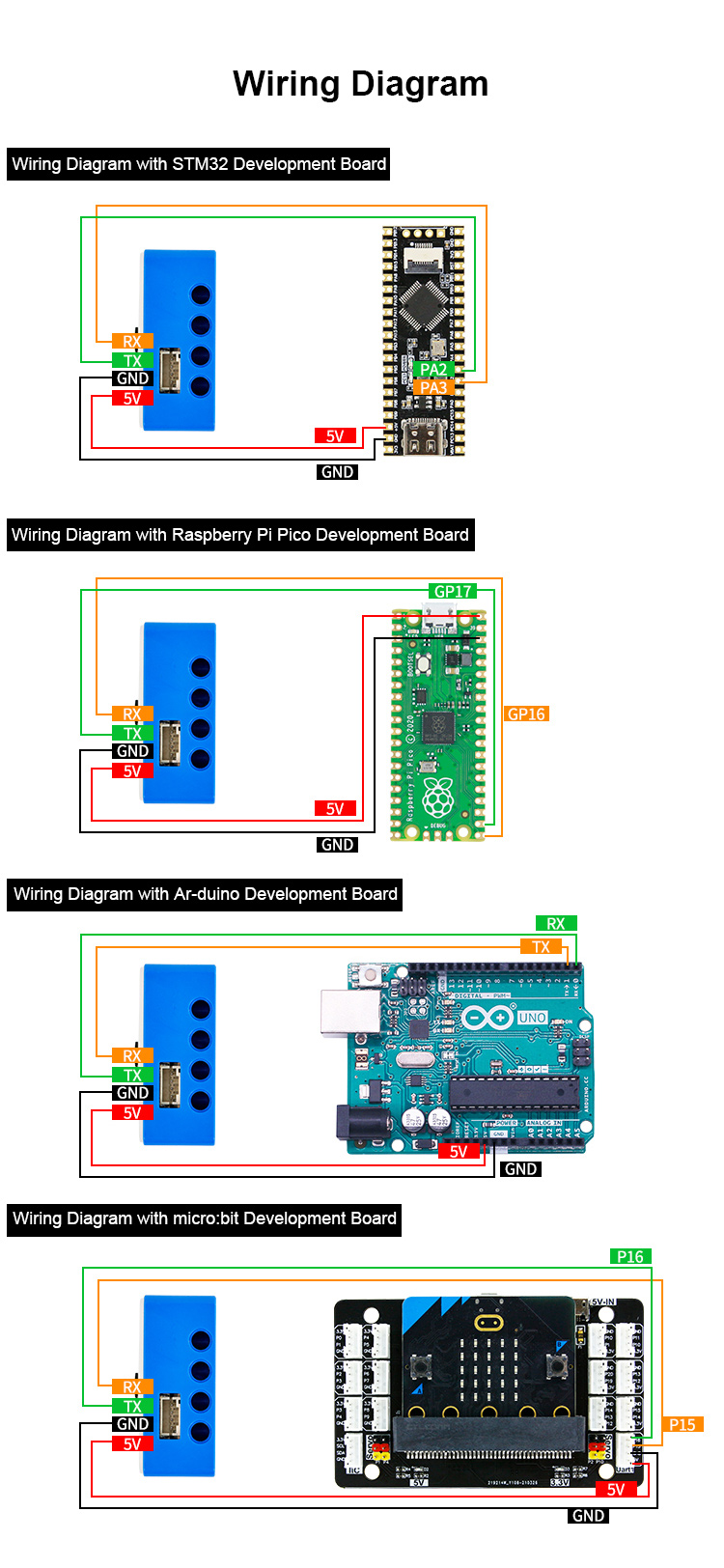

* Connect the module's TXD port to the RXD port of a microcontroller or smart car. After uploading the control program to the microcontroller or car, users can send protocol commands via the mobile app to control the car's movement.

Integrated ABS Enclosure
* The housing is made of imported ABS material, which is flame-retardant, non-toxic, wear-resistant, and highly durable.
* Multiple mounting holes are pre-designed on the sides and back for flexible installation.

Compact and Easy to Mount
* The module mounting holes conform to the aperture specifications of standard building blocks.

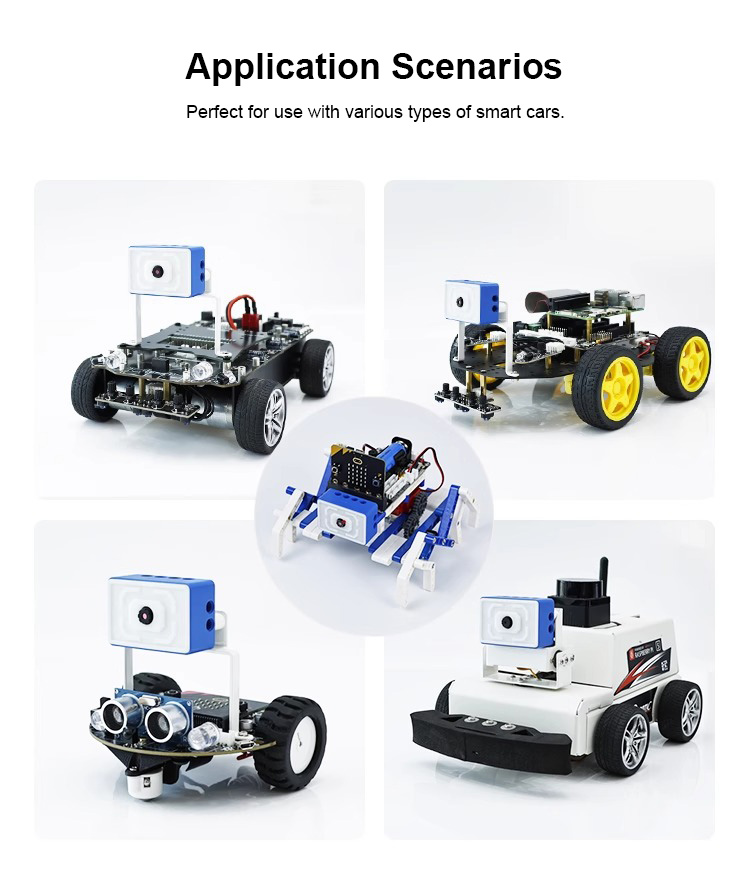

Application Scenarios
* Perfect for use with various types of smart cars.

Specifications of the ESP32-WiFi Video Transmission Module:
* Antenna Model: 2.4GHz FPC Antenna
* Antenna Gain: 3dB Gain
* Transmission Distance: ≤ 20 meters
* Supply Voltage: 5V
* Supply Current: 250mA
* Operating Mode: Default AP Mode + STA Mode
* Interface Type: Serial Port
* Interface Definition: 5V (Power Positive Pole), TXD (Serial Port TX Terminal), GND (Power Negative Pole), and RXD (Serial Port RX Terminal)
* Casing Material: ABS

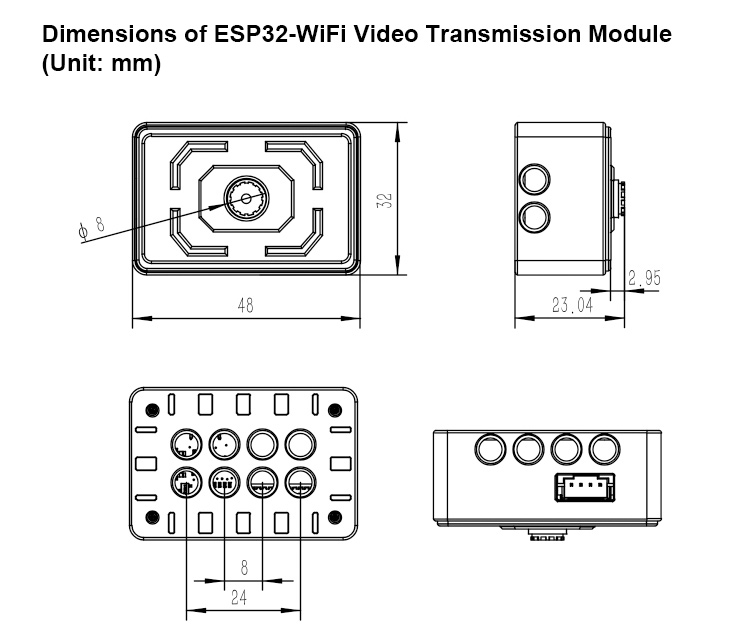

* Dimensions: 48 × 32 × 23.04mm
* Weight: 21g

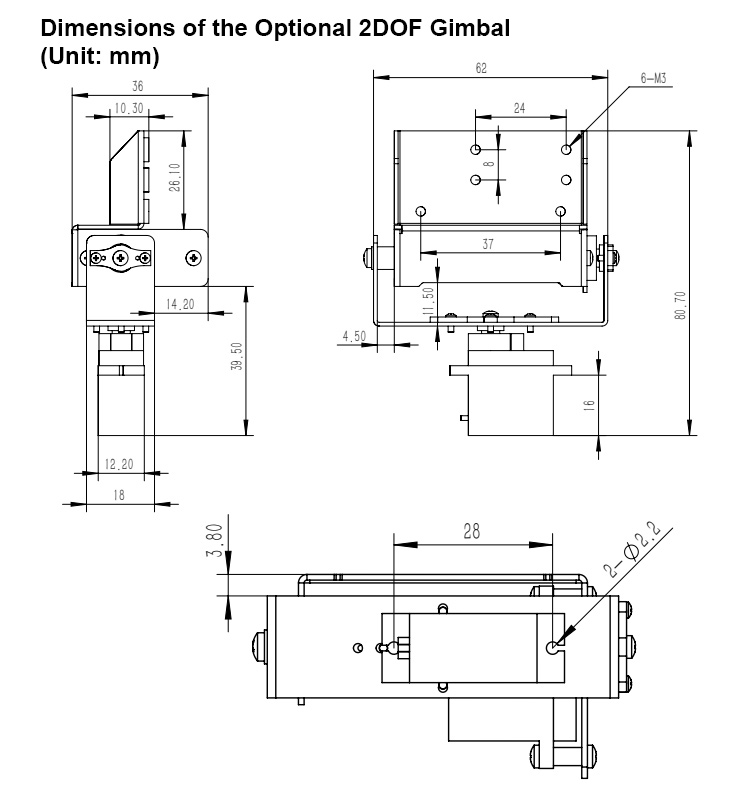

Specifications of the 2DOF Gimbal:
* Degrees of Freedom: 2
* Features: It can be paired with the ESP32-WiFi video transmission module and mounted on a smart car platform, supporting two degrees of freedom movement in horizontal and vertical directions.
* Servo Model: High-quality 9g plastic servo
* Operating Current: 80mA
* No-load Speed: 0.14sec/60°
* Stall Current: 650mA
* Stall Torque: 1.3kgf·cm
* PWM Pulse Width Range: 500-2500µs corresponding to 0-180°
* Angle Accuracy: 180°±1°
* Servo Wire Length: 245mm±5mm
* Dimensions: 62 × 36 × 80.7mm
* Weight: 70g

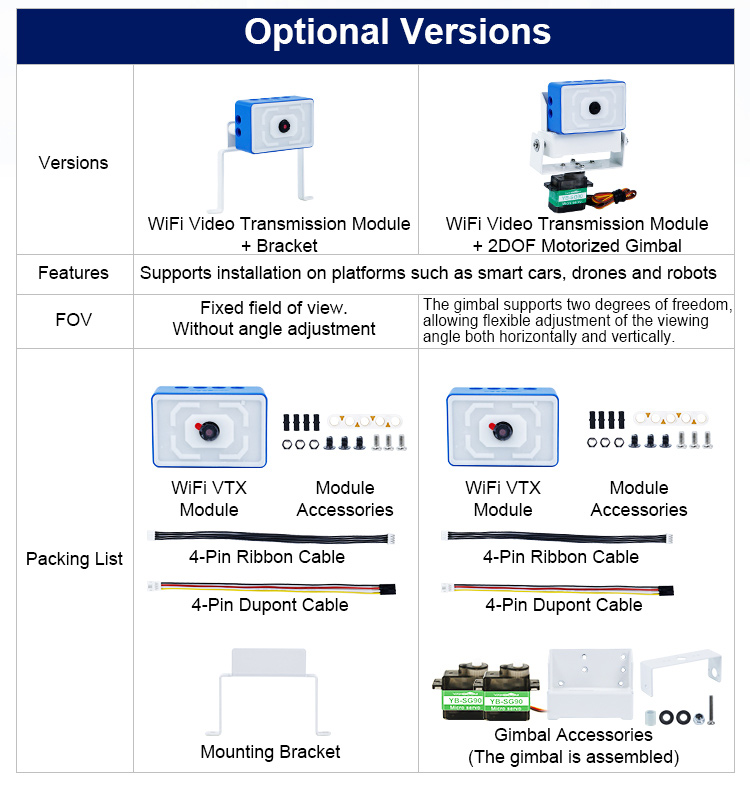

Packing List:
* 1 x WiFi Video Transmission Module
* 1 x Set of Module Accessories
* 1 x 4-Pin Ribbon Cable
* 1 x 4-Pin Dupont Cable
* 1 x Set of Gimbal Accessories (Gimbal Assembled)

Packaging Details:
* Weight: 0.2kg
