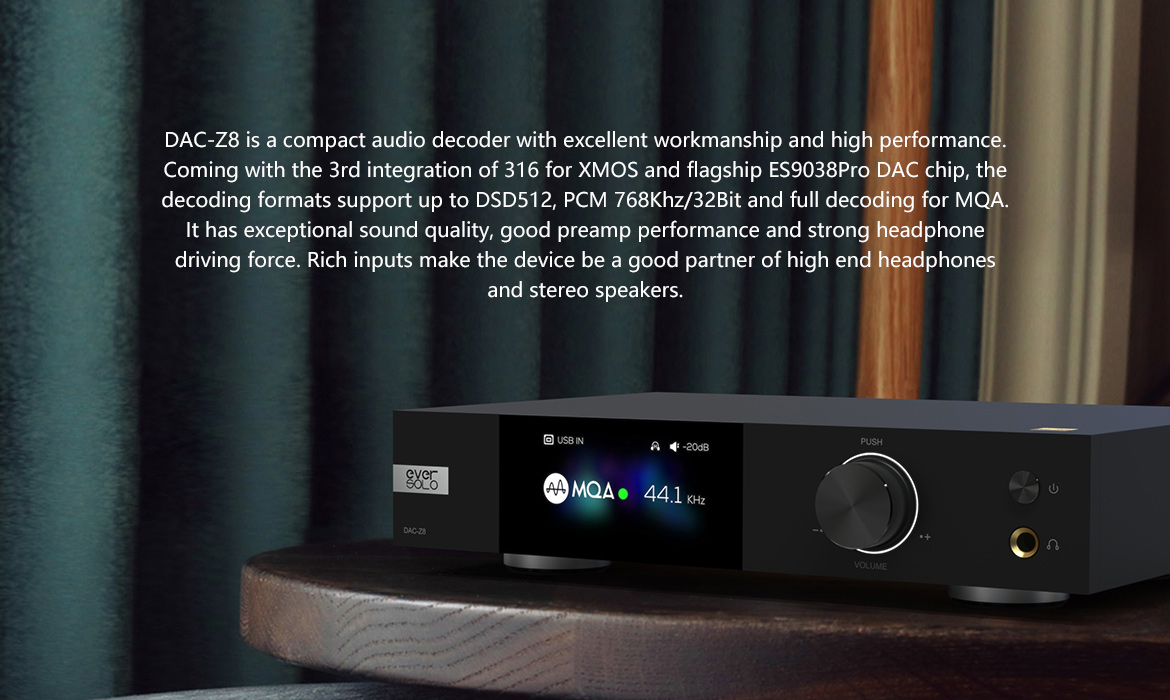

Eversolo DAC-Z8 ES9038Pro USB DAC Audio Decoder Headphone Amplifier DSD512 Native PCM 768KHz/32Bit

Eversolo DAC-Z8 ES9038Pro USB DAC Audio Decoder Headphone Amplifier DSD512 Native PCM 768KHz/32Bit

Features:

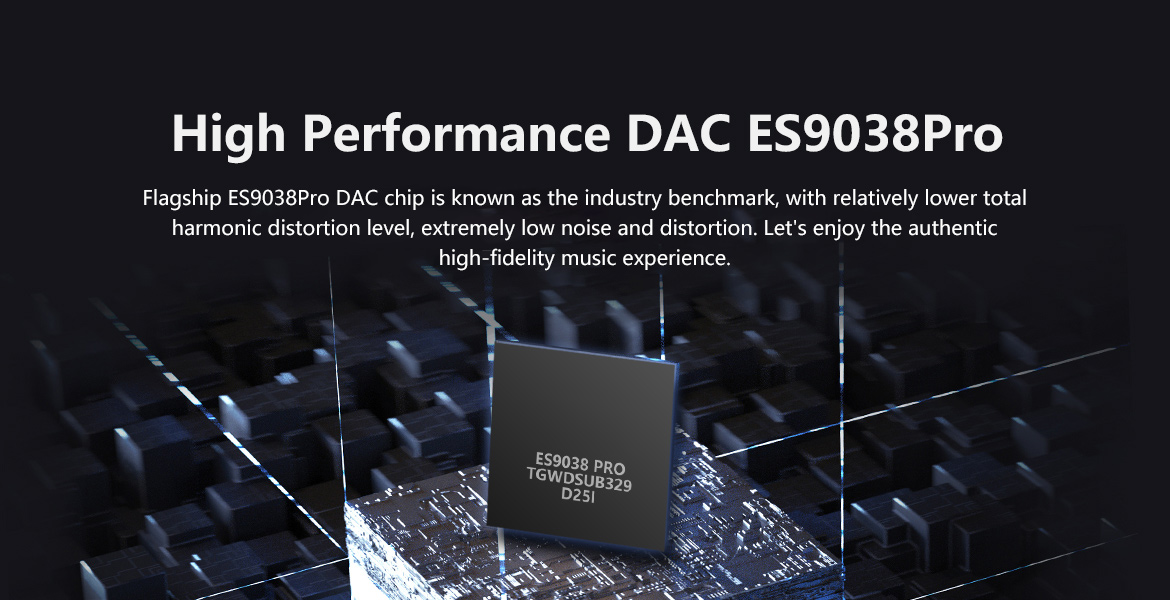

- Flagship ES9038Pro 32bit DAC chip
- The 3rd generation XU316 for XMOS with higher performance and faster speed

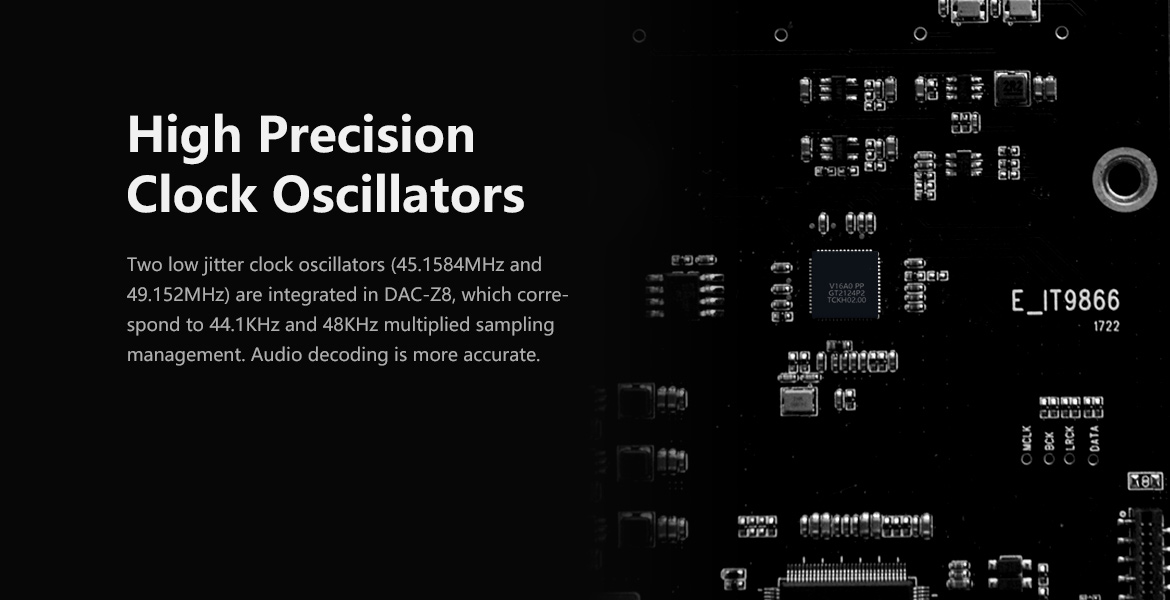

- High precision, low jitter dual clock oscillators synchronous processing

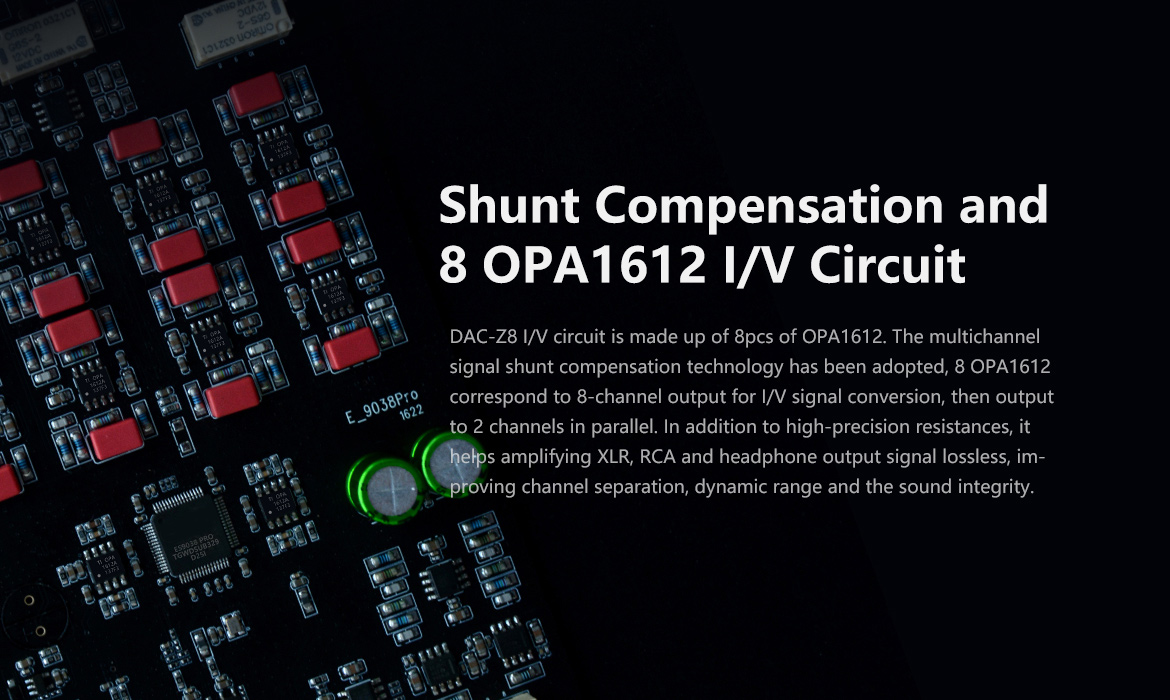

- OPA1612*8 I/V operational amplifier circuit, 8-channel shunt compensation technology
- Up to DSD512 Native and PCM 768KHz at 32Bit decoding
- Optical, coaxial and USB support for MQA full decoding and rendering
- QCC5125 Bluetooth 5.0 module supports for APTX HD/LDAC protocol

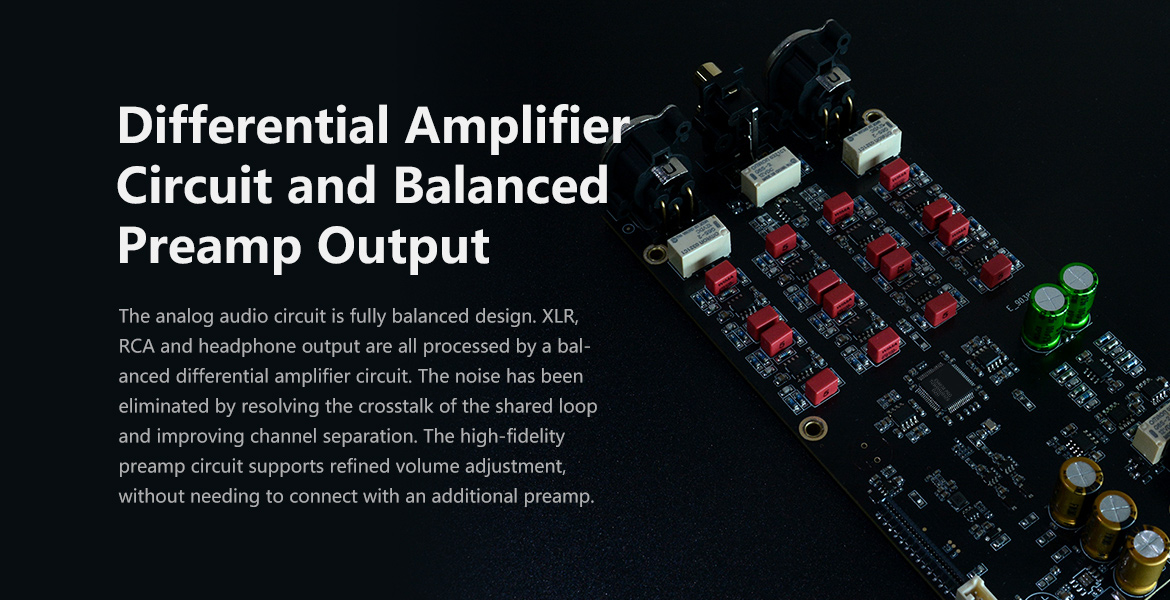

- Fully balanced audio architecture, differential amplifier circuit and professional calibration

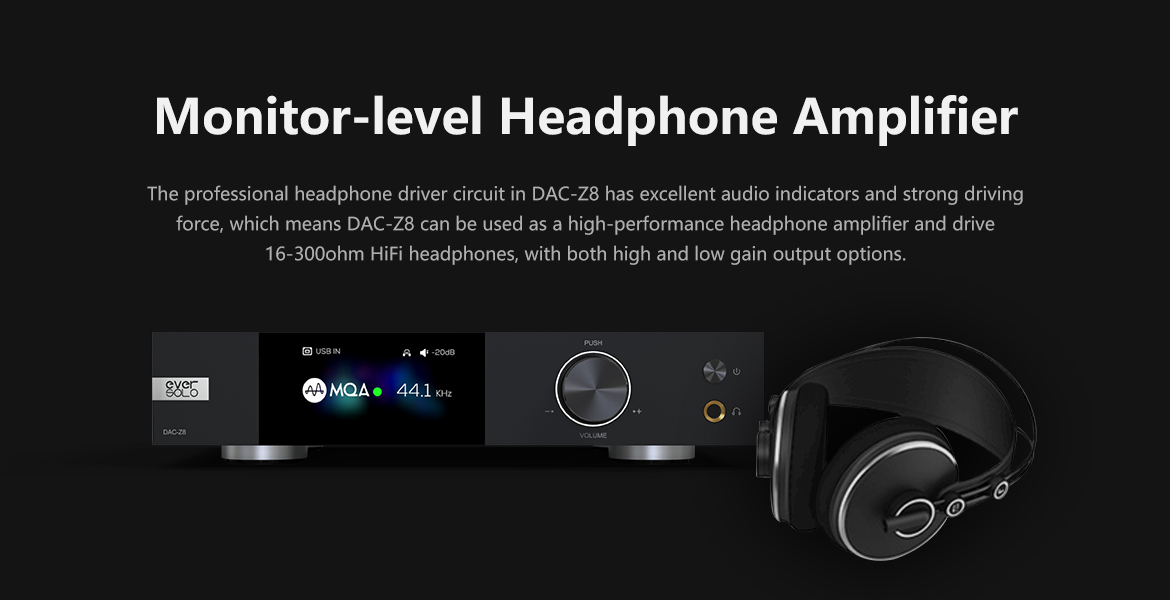

- High-performance headphone amp output, with 16-300 ohm headphone driver

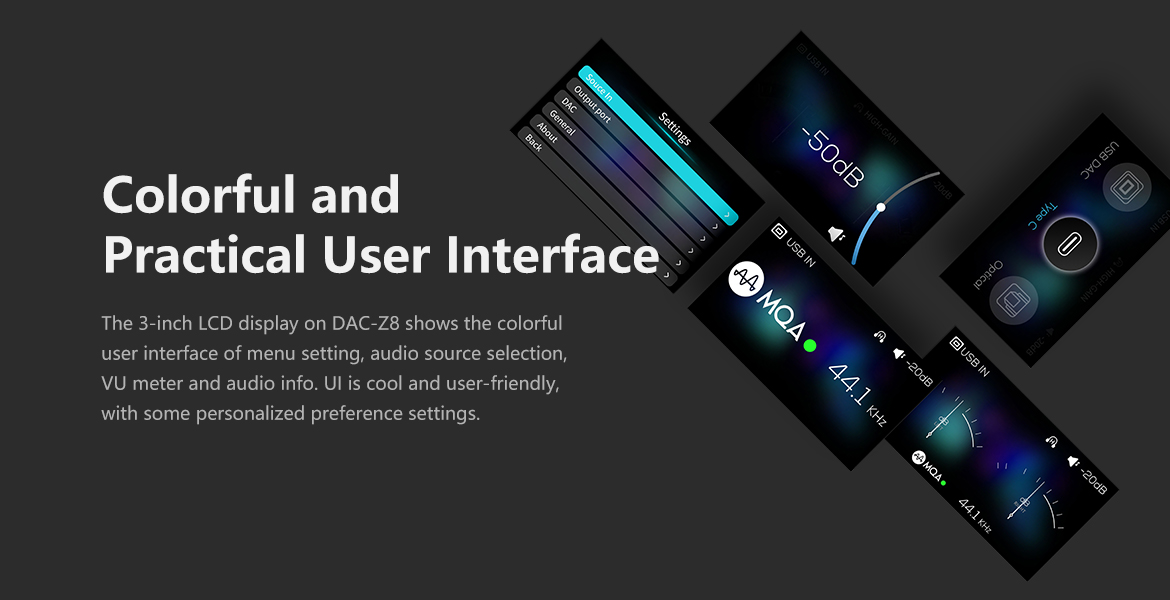

- 3" LCD screen with diverse VU meter modes

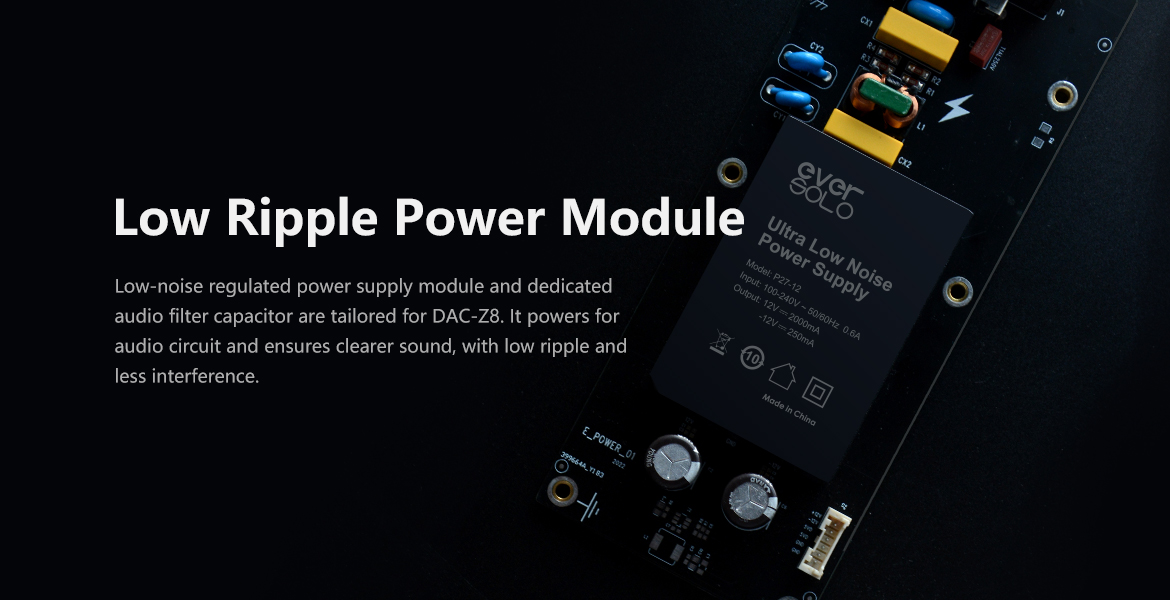

- Low ripple power supply to ensure a purer power source

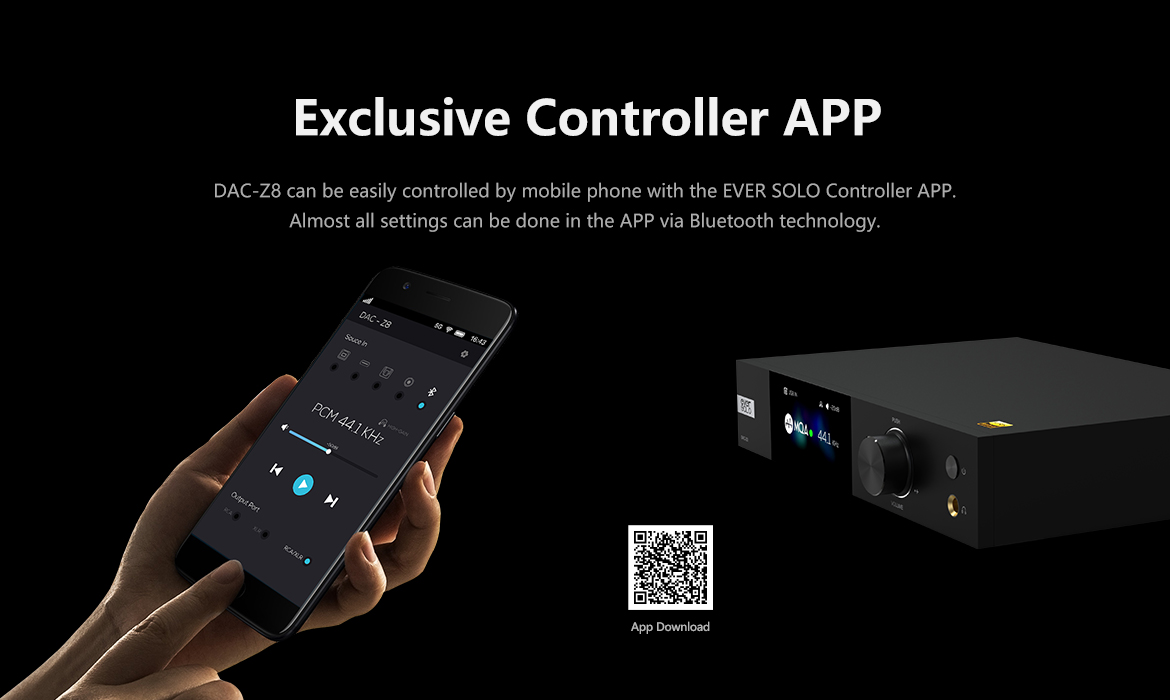

- Exclusive mobile phone controller APP for global control
- DAC-Z8 includes the technology for MQA (Master Quality Authenticated), which enables you to play audio files for MQA and streams, delivering the sound of the original master recording

Specifications:
- Model: Eversolo DAC-Z8
- Display Screen: 3-inch LCD Screen

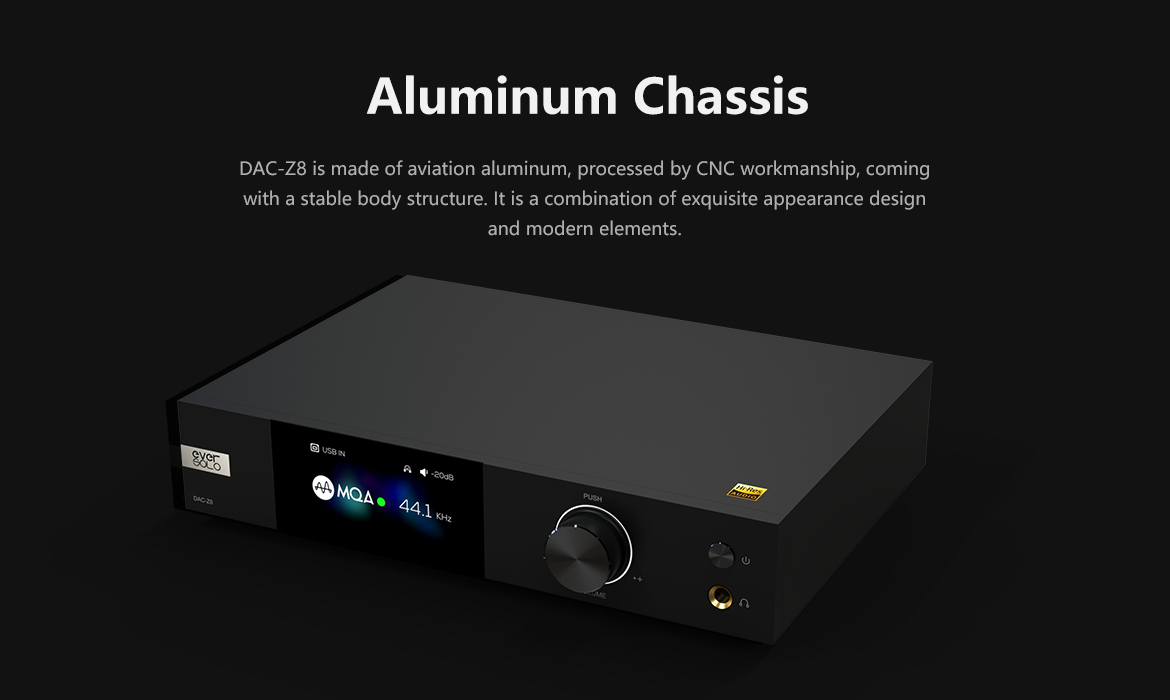

- Chassis: Aviation aluminum alloy
- DAC: ES9038Pro
- Audio Processor: For XMOS XU316
- OPA Chip: OPA1612*10
- Power Supply: Low noise switching power supply
- Bluetooth Audio Input: QCC5125 Bluetooth module, BT5.0. Support for SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
- USB-B DAC Input: For Windows (7, 10), Mac, Android and IOS. Up to stereo DSD512, PCM 768KHz 32Bit and for MQA
- USB-C DAC Input: For Windows (7, 10), Mac, Android and IOS. Up to stereo DSD512, PCM 768KHz 32Bit, for MQA
- Optical Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and for MQA
- Coaxial Audio Input: Up to stereo PCM 192KHz 24Bit, DSD64 Dop and for MQA

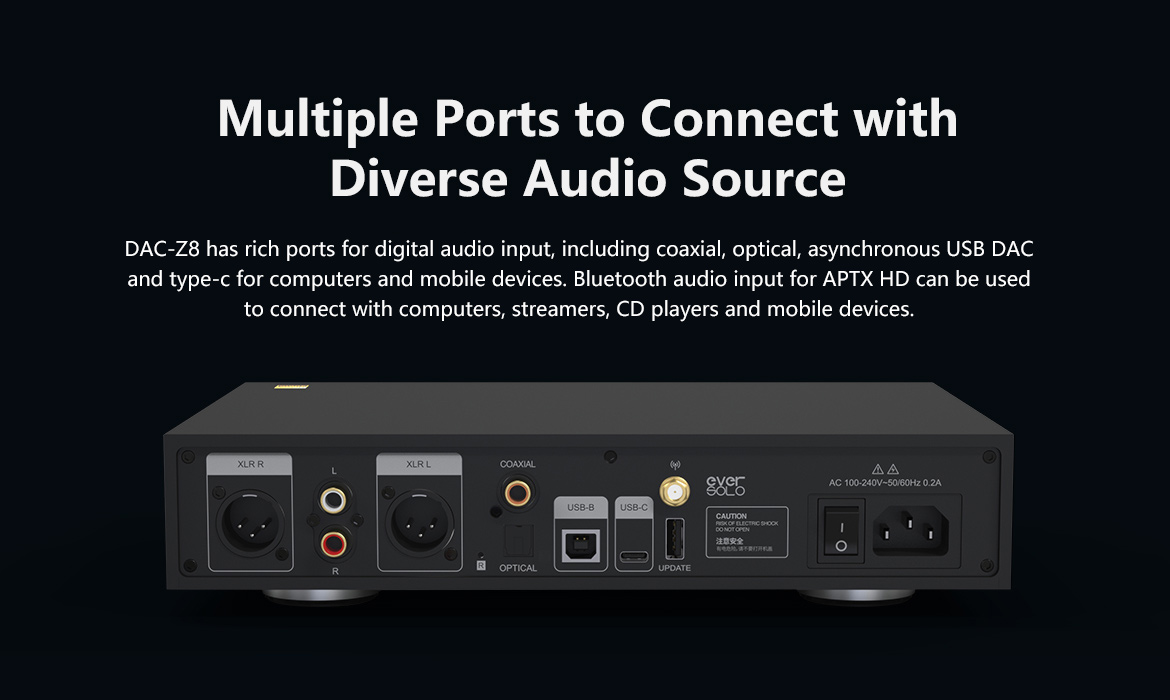

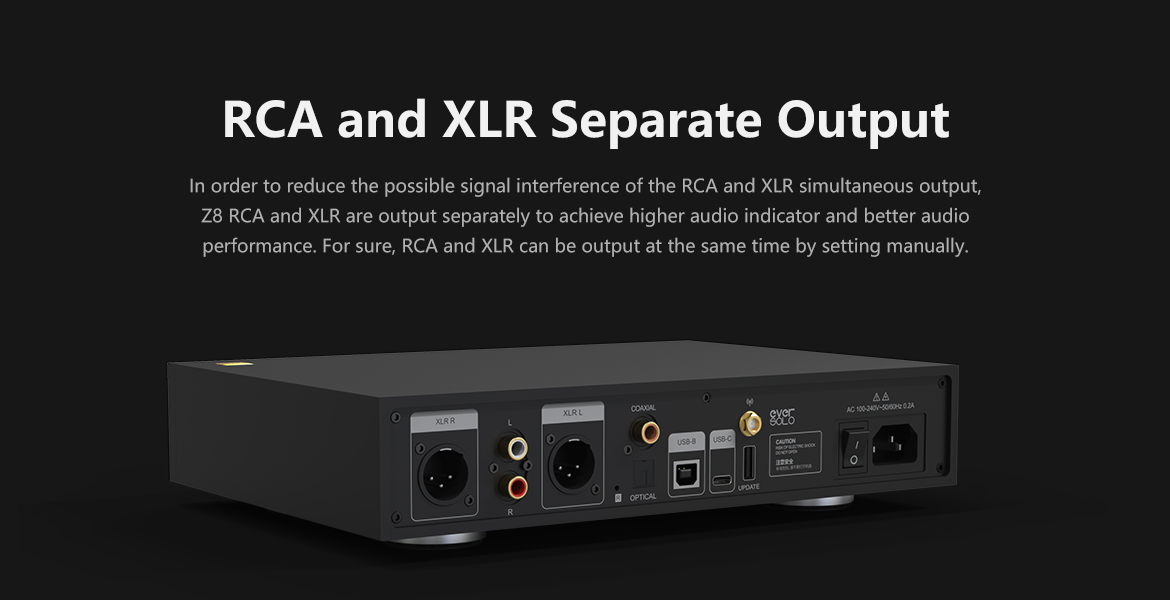

- Analog Audio Output: Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended
- USB Port: USB2.0*1（only for firmware upgrade）

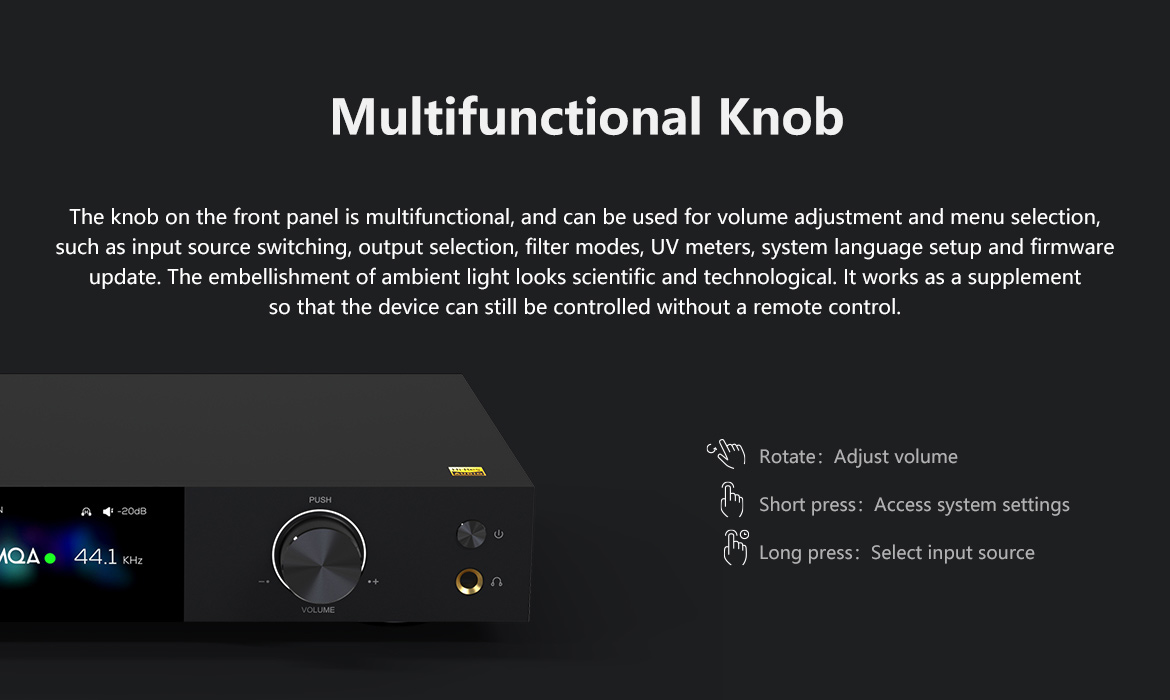

- Control Methods: Remote control, mobile APP control and knob control
- Headphone Impedance: 16-300Ω（low gain mode: 16-32Ω/high gain mode: 32-300Ω)
- XLR Audio Characteristics:
  * Output level (Vrms): 4.1Vrms at 0dBFS
  * THD+N at A-wt: 0.000062% at 1kHz (-124dB at 1kHz)
  * THD+Nat No-wt：0.000069% at 1kHz (-123dB at 1kHz)
  * Noise at No-wt: <1.2uVrms
  * SNR at No-wt: 133dB at 1kHz
  * Frequency response: 20Hz-20kHz (±0.1dB)
  * Crosstalk: -130dB at 1kHz
  * DNR at No-wt: 133dB at 1kHz
- RCA Audio Characteristics:
  * Output level (Vrms): 2.3Vrms at 0dBFS
  * THD+N at A-wt: 0.000086% at 1kHz (-121dB at 1kHz)
  * THD+ at No-wt: 0.000097% at 1kHz (-120dBat 1kHz)
  * Noise at No-wt: <1.5uVrms
  * SNR at No-wt: 126dB at 1kHz
  * Frequency response: 20Hz-20kHz(±0.1dB)
  * Crosstalk: -123dB at 1kHz
  * DNR at No-wt: 126dB at 1kHz
- Headphone (low gain mode):
  * Output level (Vrms): 1.2Vrms at 0dBFS
  * Maximum undistorted power: 45 mW at 32Ω
  * THD+N at A-wt: 0.00015% at 1kHz (-116dB at 1kHz)
  * THD+N at No-wt: 0.00018% at 1kHz (-115dB at 1kHz)
  * Noise at No-wt: <2uVrms
  * SNR at No-wt: 124dB at 1kHz
  * Frequency response: 20Hz-20kHz (±0.1dB)
  * DNR at No-wt: 119dB at 1kHz
- Headphone (high gain mode):
  * Output level (Vrms): 2.8Vrms at 0dBFS
  * Maximum undistorted power: 26 mW at 300Ω
  * THD+N at A-wt: 0.00016% at 1kHz(-116dB at 1kHz)
  * THD+N at No-wt: 0.00016% at 1kHz(-116dB at 1kHz)
  * Noise at No-wt: <2uVrms
  * SNR at No-wt: 124dB at 1kHz
  * Frequency response: 20Hz-20kHz (±0.1dB)
  * DNR at No-wt: 124dB at 1kHz
- Power Input: AC 110~240V 50/60Hz
- Rated Power: 9W
- Dimensions: 270 x 187 x 50mm/10.6 x 7.4 x 2" (WxDxH)

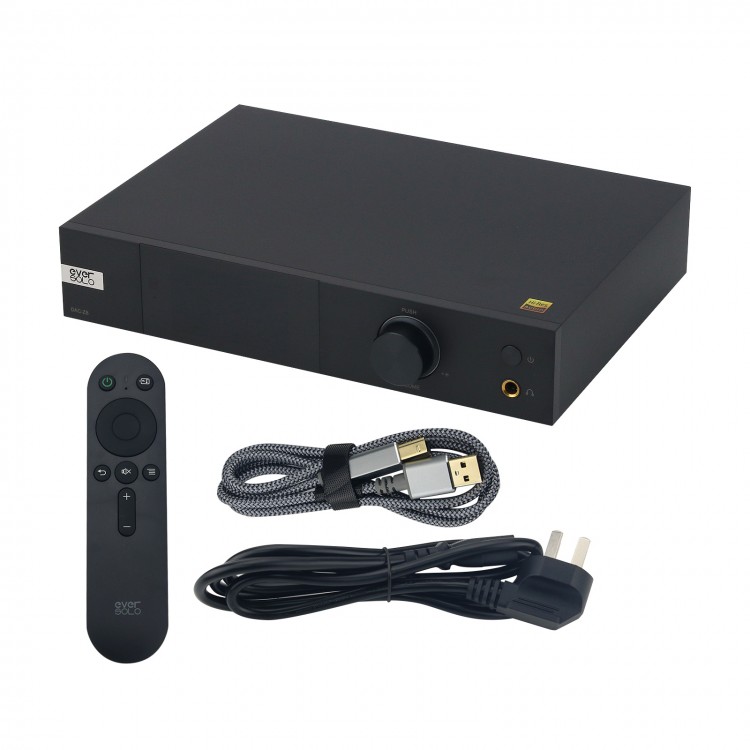

Package Included:
- 1 x DAC
- 1 x Remote control
- 1 x Power cable
- 1 x USB data cable
- 1 x User manual

Packaging Details:
- G.W.: 3kg
