Description:
- The Eversolo DMP-A6 Gen 2 is a HiFi streamer that seamlessly blends exceptional sound quality with cutting-edge technology. It is more than just an audio device; it is a new way to connect with the world of music. From hardware design to audio processing, every detail of the DMP-A6 Gen 2 has been meticulously crafted for audiophiles who seek the ultimate listening experience. It not only meets your listening needs but also transforms each musical journey into a marvelous artistic exploration.

Basic Parameters:
- Model: EVERSOLO DMP-A6 Gen 2

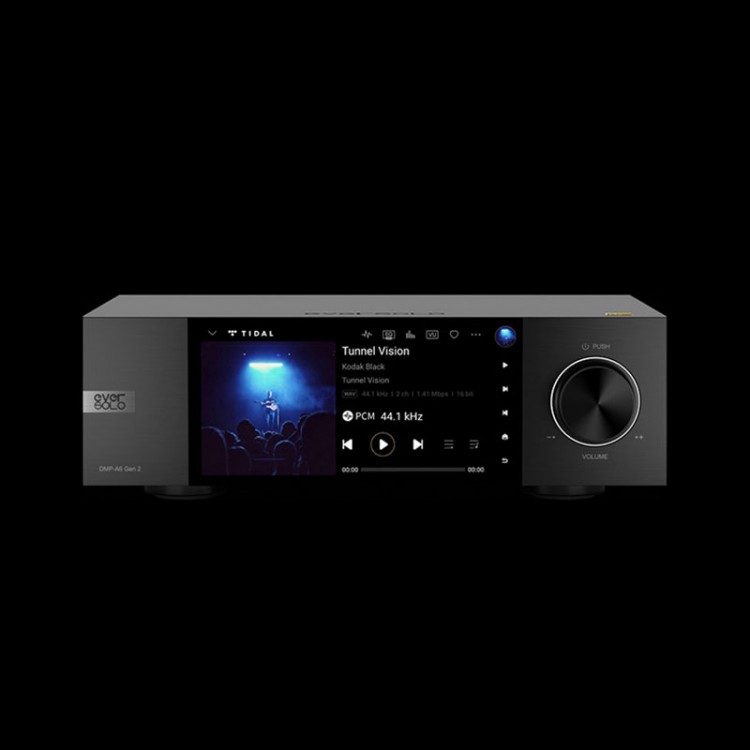

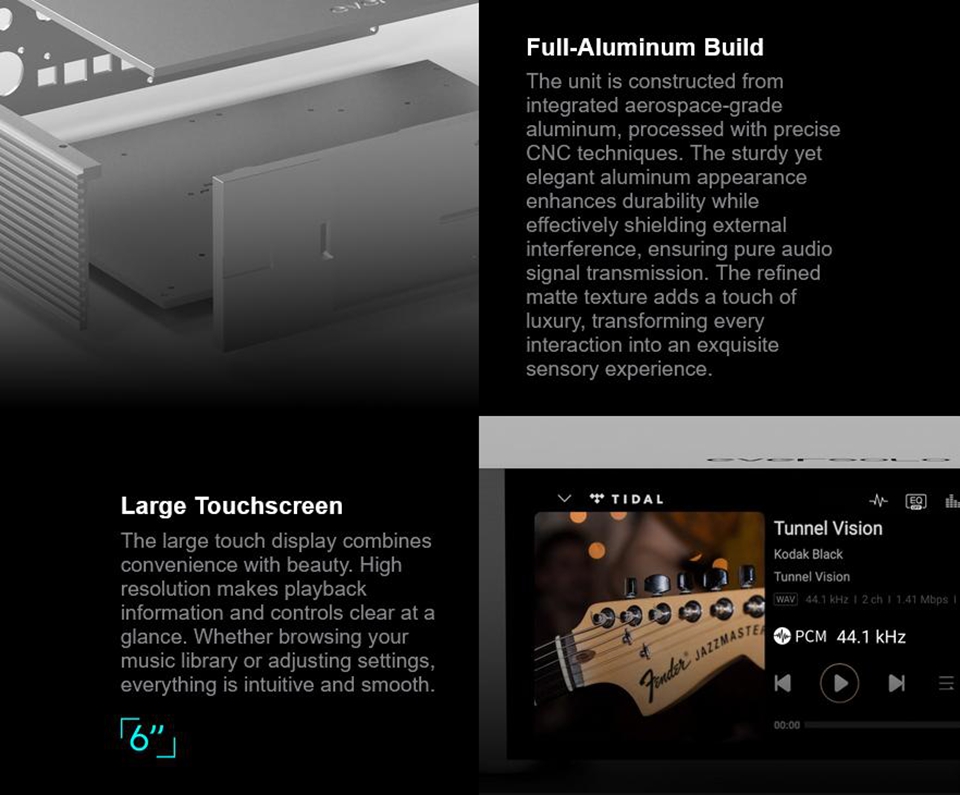

- Display: 6-inch LCD Touchscreen
- Internal memory: 4GDDR4 + 32G eMMC

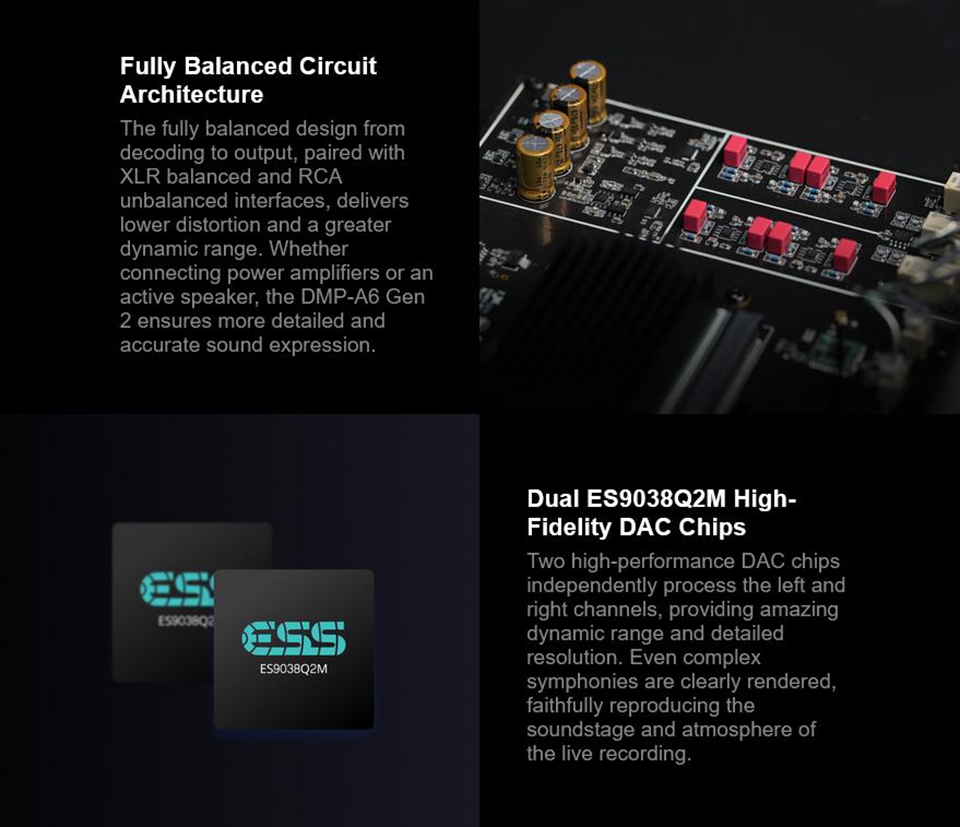

- DAC: ES9038Q2Mx2
- Audio processor: XMOS XU316
- Op-amp chip: OPA1612

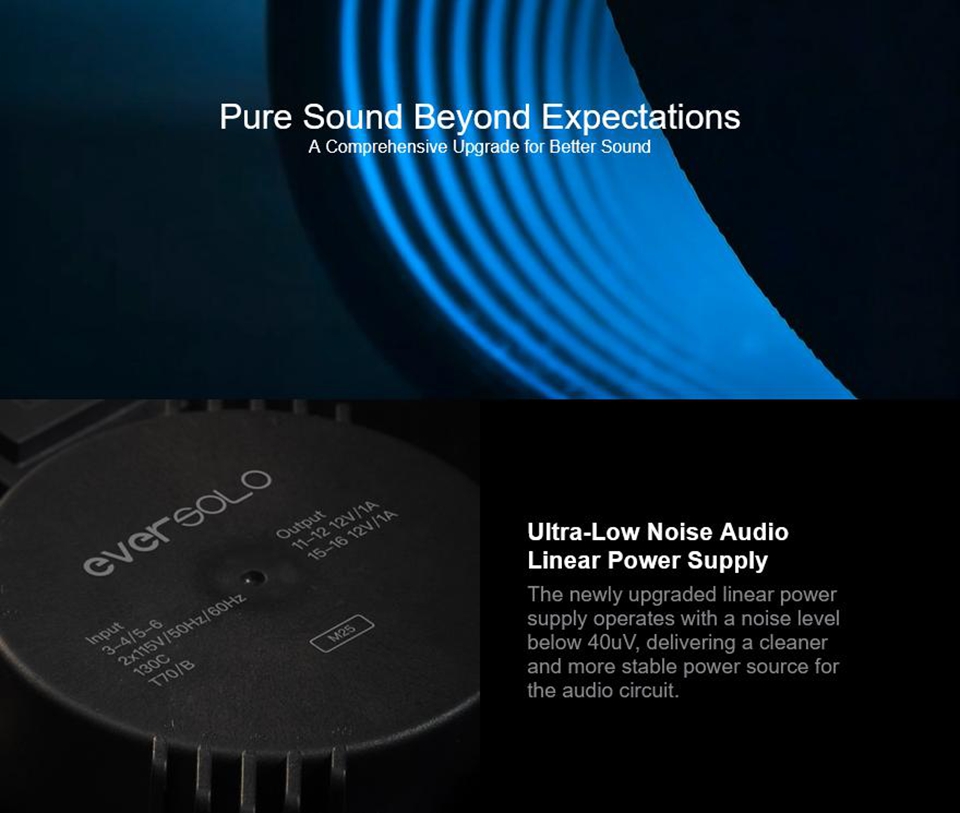

- Power supply: low noise, high-quality linear power supply

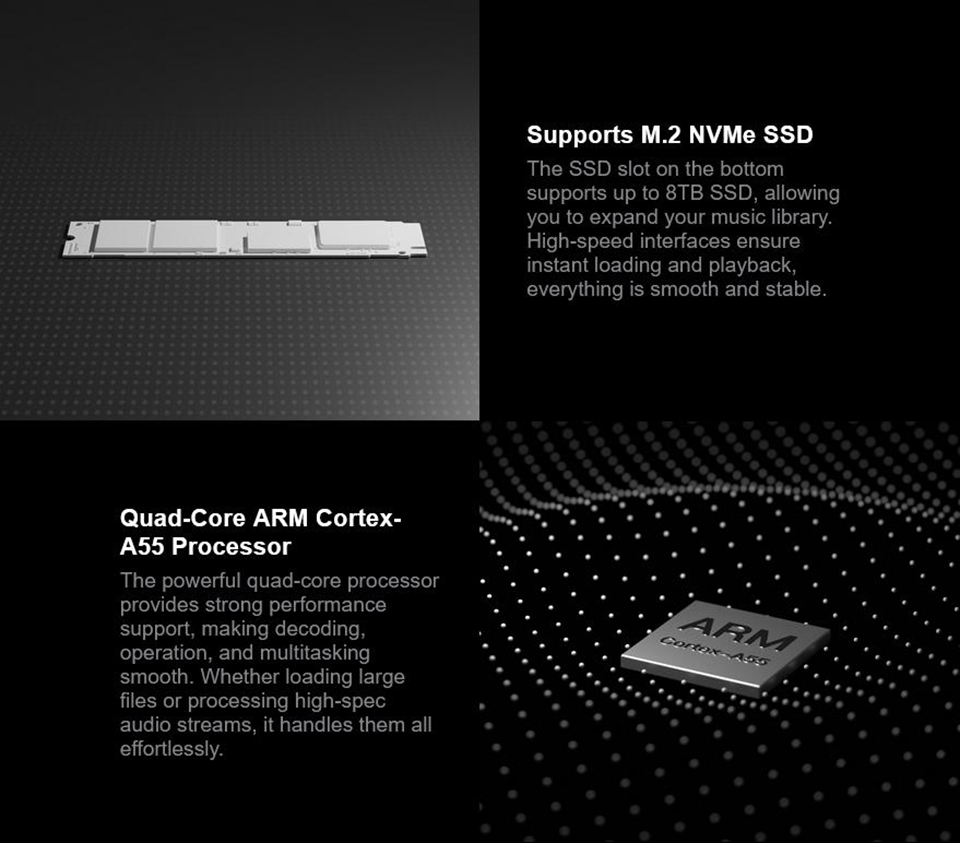

- Built-in SSD slot: M.2 NVME 3.0 2280 interface protocol, supports up to 8TB
- USB-A ports: USB3.0 x 2
- Ethernet: RJ-45 (10/100/1000Mbps)
- Wireless network: WiFi 2.4G + 5G dual-band

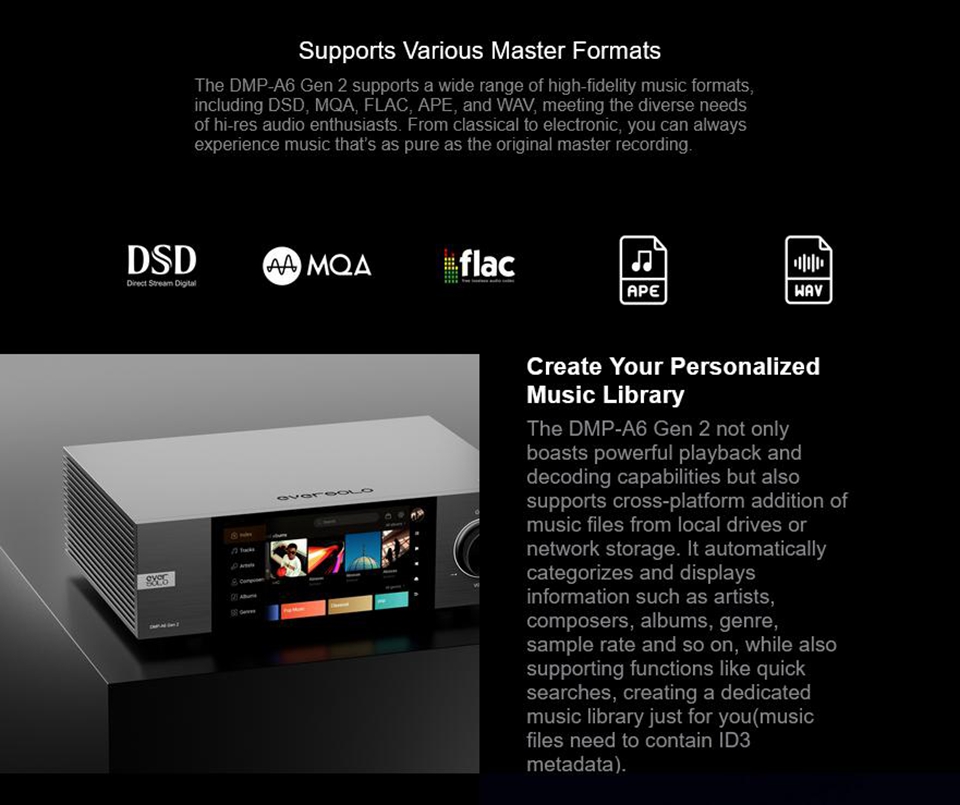

- Music playback and DAC decoding: supports up to Stereo DSD512, PCM 768kHz 32Bit, MQA format

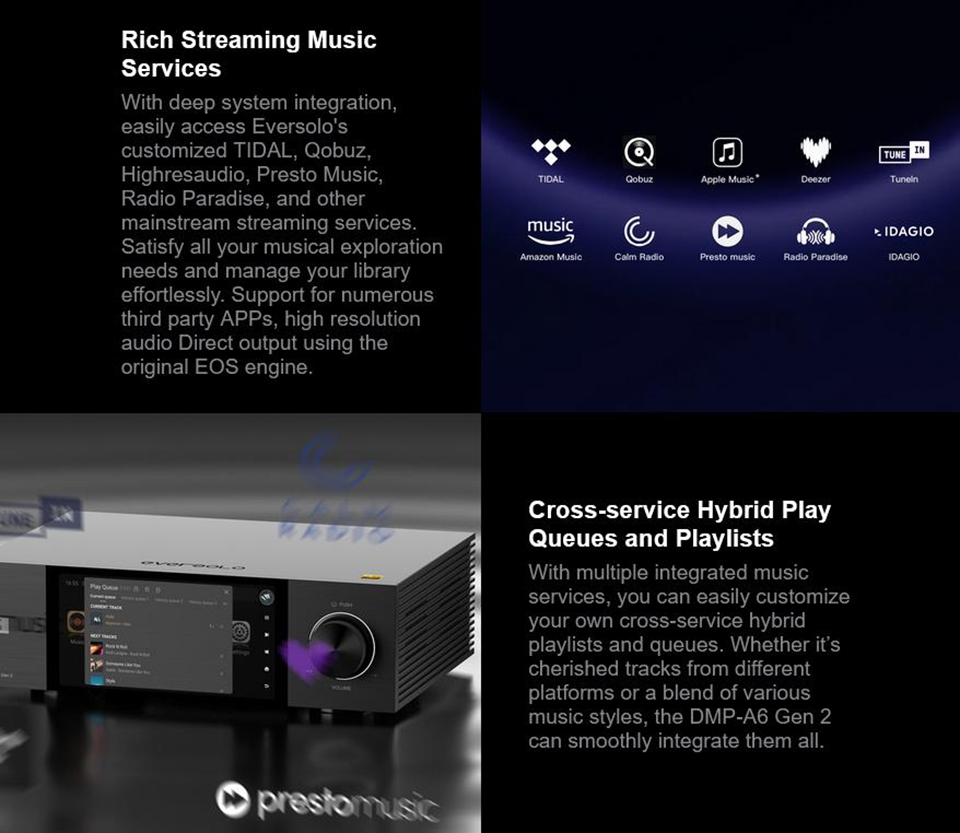

- Music services: for TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music*...
- Network protocol: for WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex...

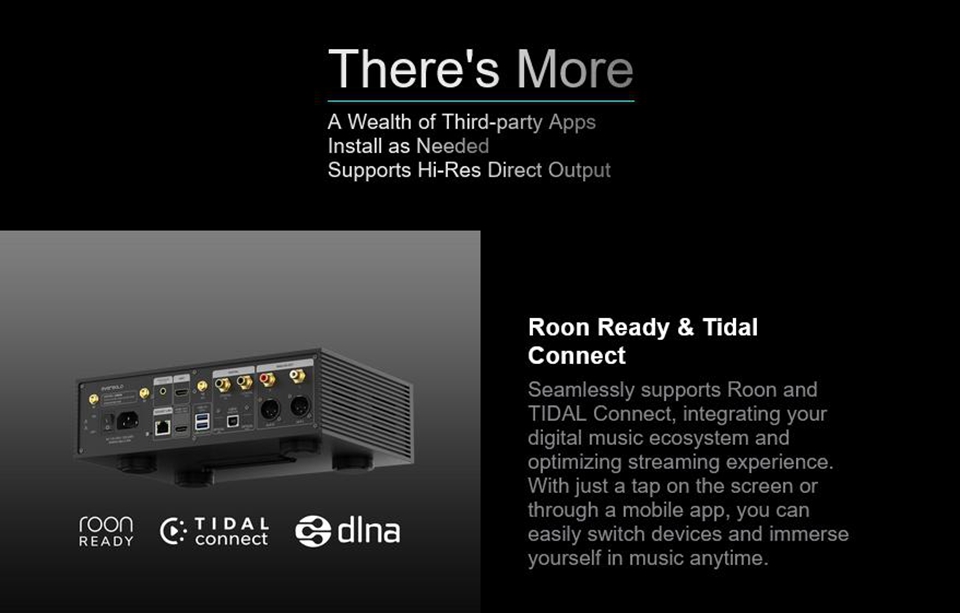

- Streaming: for Roon Ready, DLNA, TIDAL Connect...

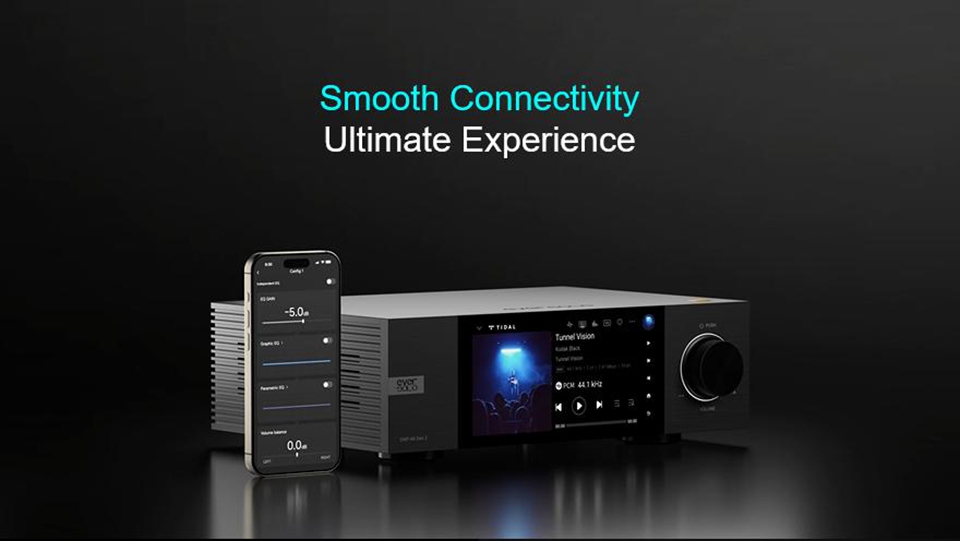

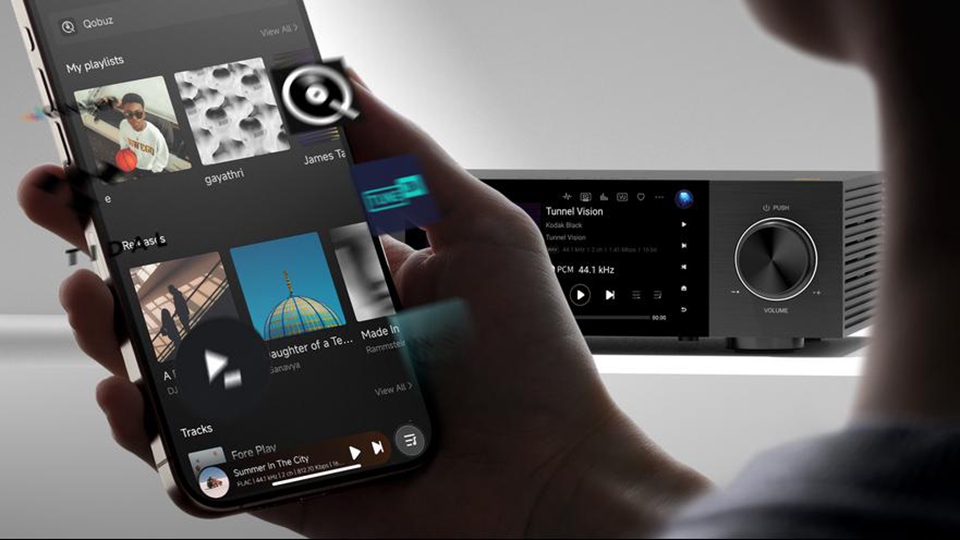

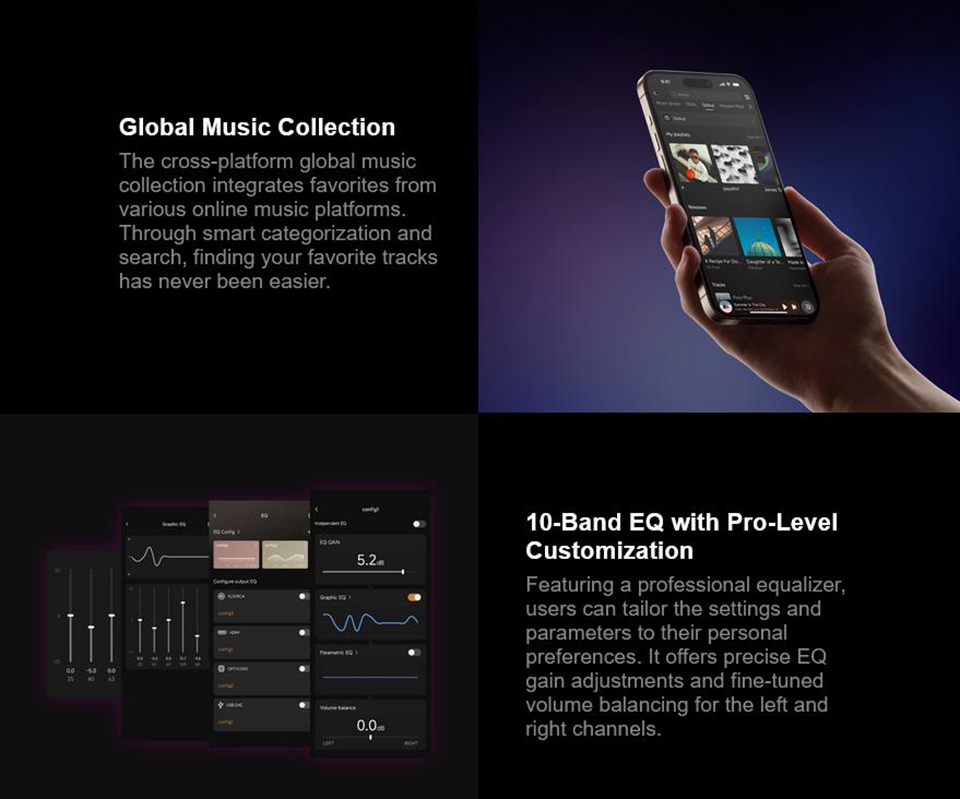

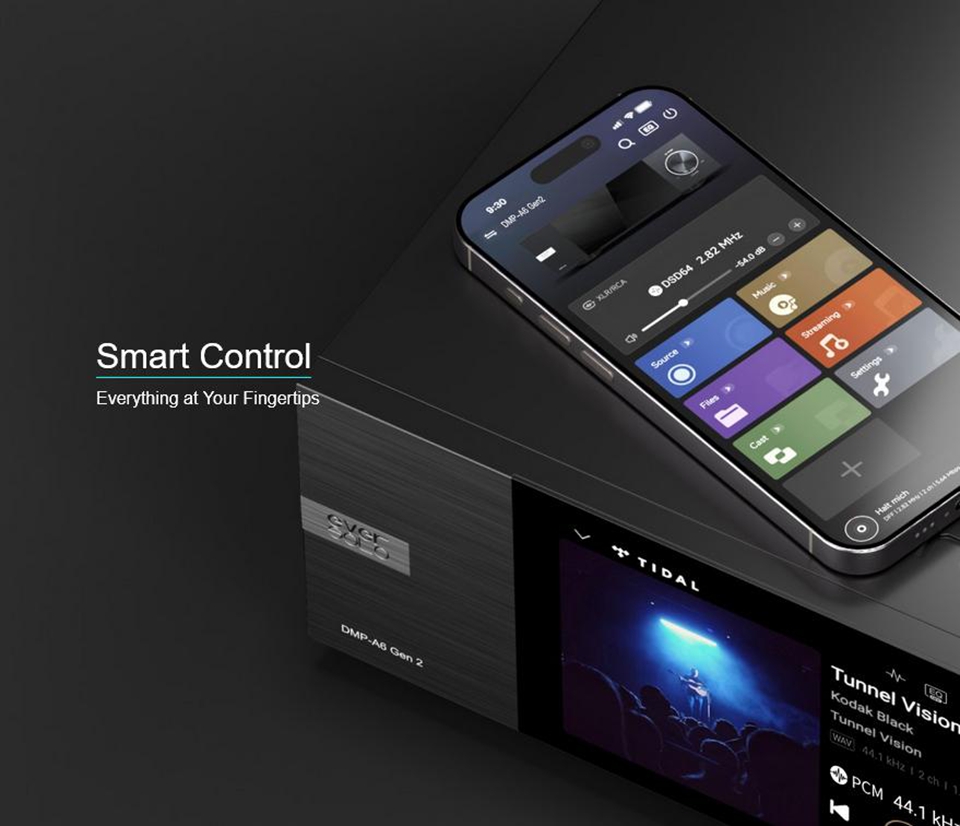

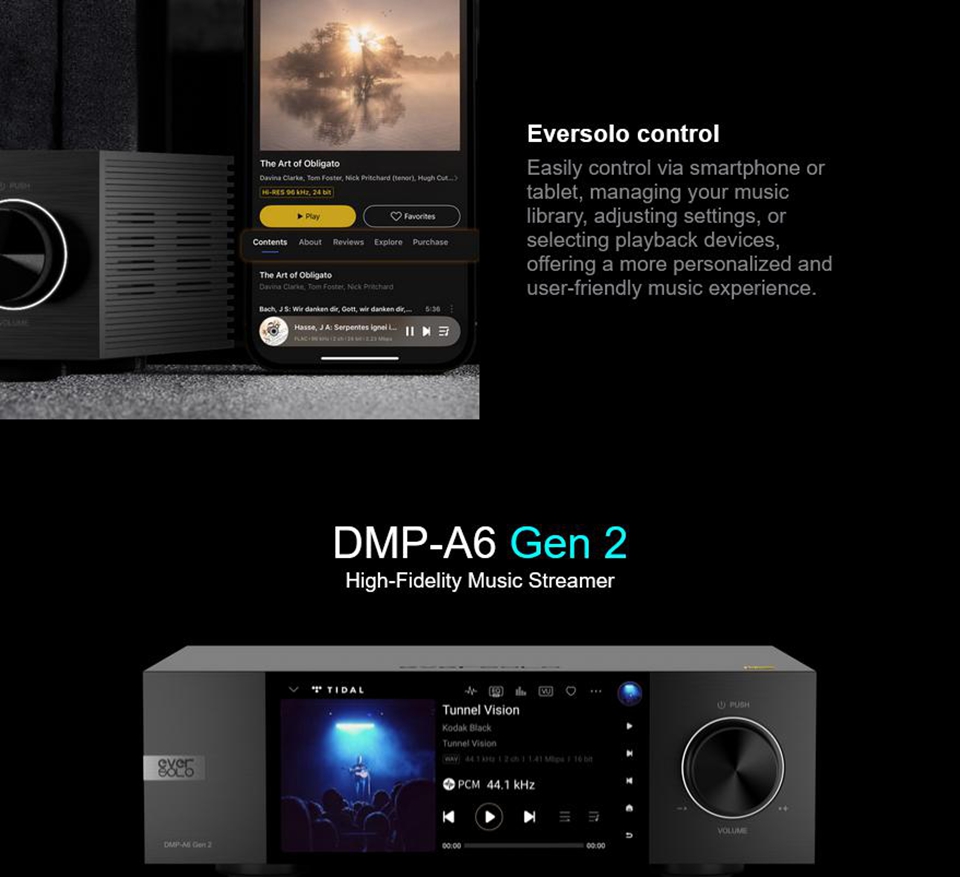

- Control methods: mobile app control, touchscreen control, tablet app control, TRIGGER OUT, WOL
- PSU: AC 110 ~ 240V 50/60Hz Max 0.35A
- Rated power: 13W
- Dimensions: 187mm x 270mm x 90mm

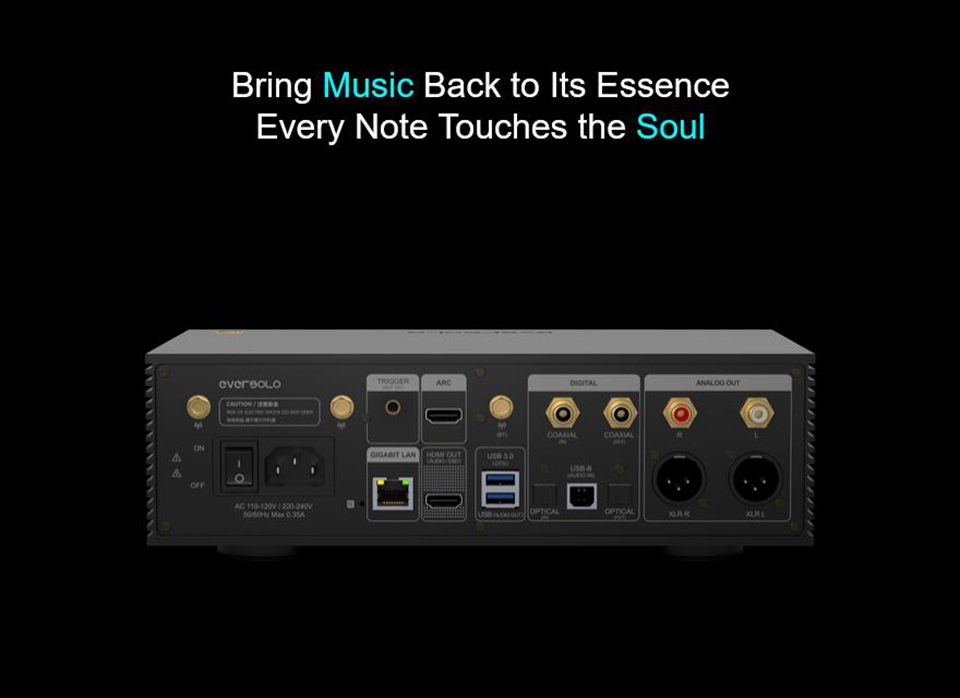

Audio Input and Output:
- Bluetooth audio input: Bluetooth BT5.0, supports SBC/AAC
- USB-B audio input: USB audio compatibility: for Windows (10, 11), Mac, Android, iOS; supports up to stereo DSD512, PCM 768kHz 32bit, MQA format
- Optical/Coaxial audio input: supports up to stereo PCM 192kHz 24Bit, Dop64, MQA format

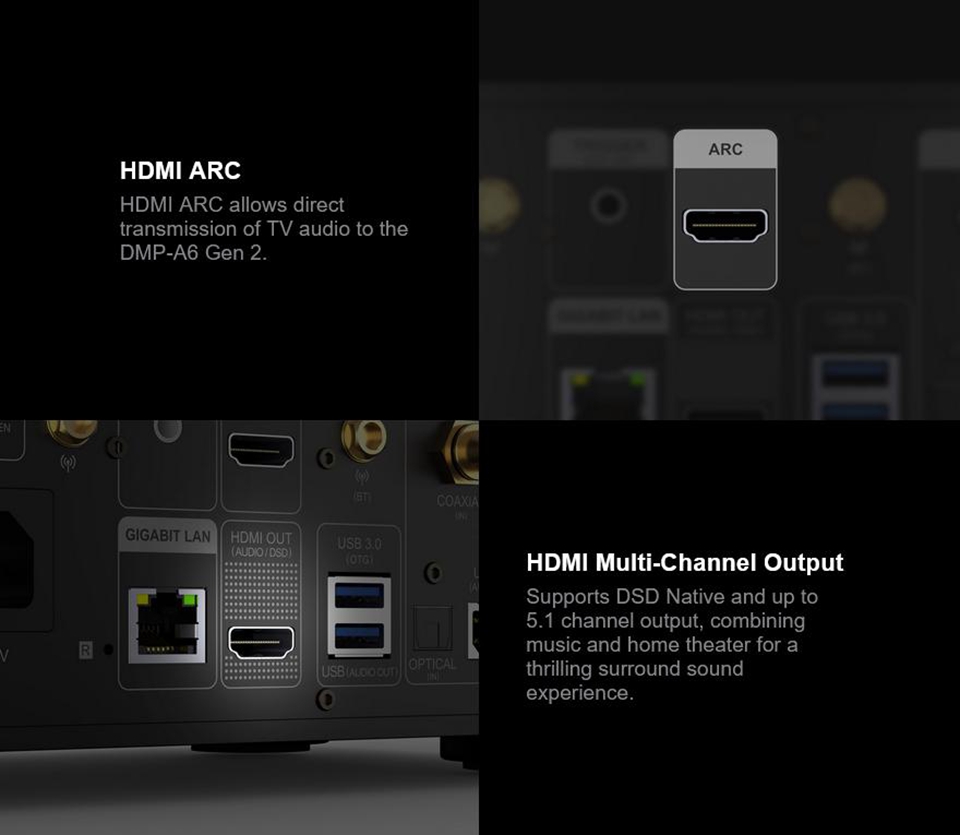

- HDMI-compatible ARC input: supports up to Stereo PCM 192kHz/24Bit
- USB audio output: supports up to stereo DSD512 native, PCM 768kHz 32Bit, MQA format
- HDMI-compatible audio output: DSD64 native multichannel/PCM 192kHz multichannel raw output, up to 5.1
- Optical/coaxial audio output: supports up to stereo PCM 192kHz 24Bit, Dop64, MQA format
- Analog audio output: Pre-output: XLR (Balanced) + RCA (Unbalanced)

XLR Output Audio Characteristics:
- Output level: 5.2V
- Frequency response: 20Hz ~ 20kHz (±0.15dB)
- Dynamic range: >128dB
- SNR: >128dB at A-wt
- THD+N: <0.00009% (-120dB)
- Crosstalk: >-125dB

RCA Output Audio Characteristics:
- Output level: 2.6V
- Frequency response: 20Hz ~ 20kHz (±0.2dB)
- Dynamic range: >124dB
- SNR: >124dB at A-wt
- THD+N: <0.00011% (-119dB)
- Crosstalk: >-124dB

Package Included:
- 1 x Audio Player
- 1 x Power Cable
- 1 x USB Data Cable
- 1 x Trigger Cable
- 1 x User Manual
