EWRF 5.8G UVC Receiver Cellphone 48CH 5.8 G OTG Receiver Set for FPV VTX UVC Video Acquisition

EWRF 5.8G UVC Receiver Cellphone 48CH 5.8 G OTG Receiver Set for FPV VTX UVC Video Acquisition

Features:

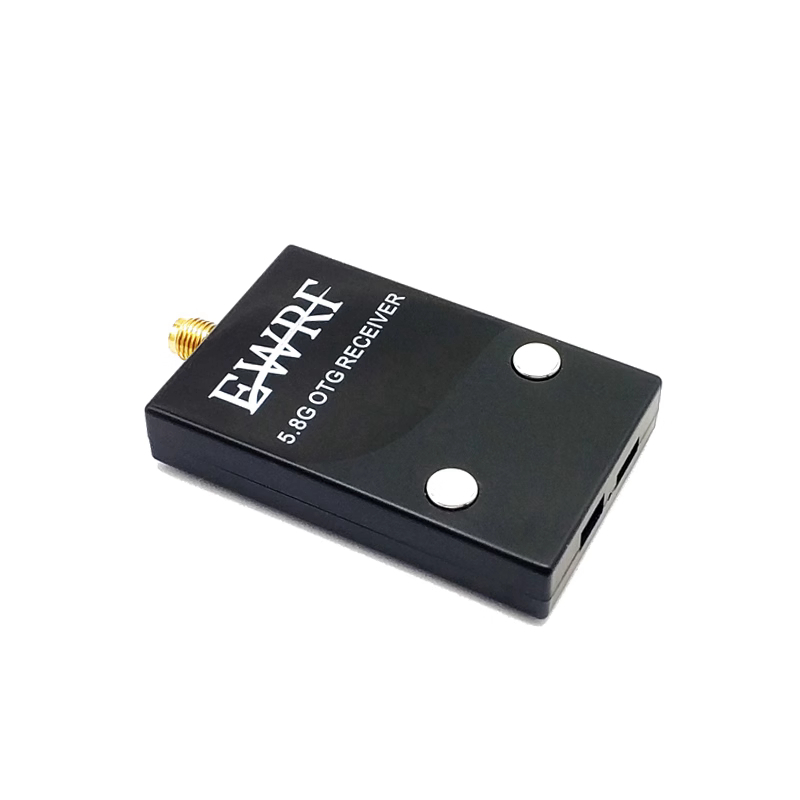

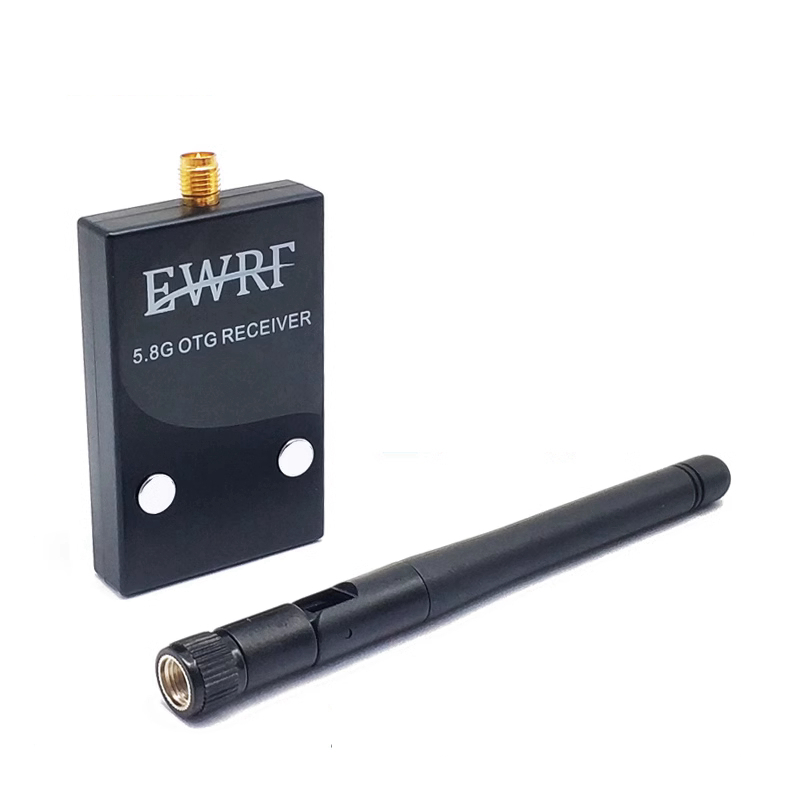

- EWRF OTG receiver
- 5.8G standard 48CH
- Resolution: 720*480/30Fps
- Supports taking photos and videos
- Supports sound return
- High precision and accurate frequency

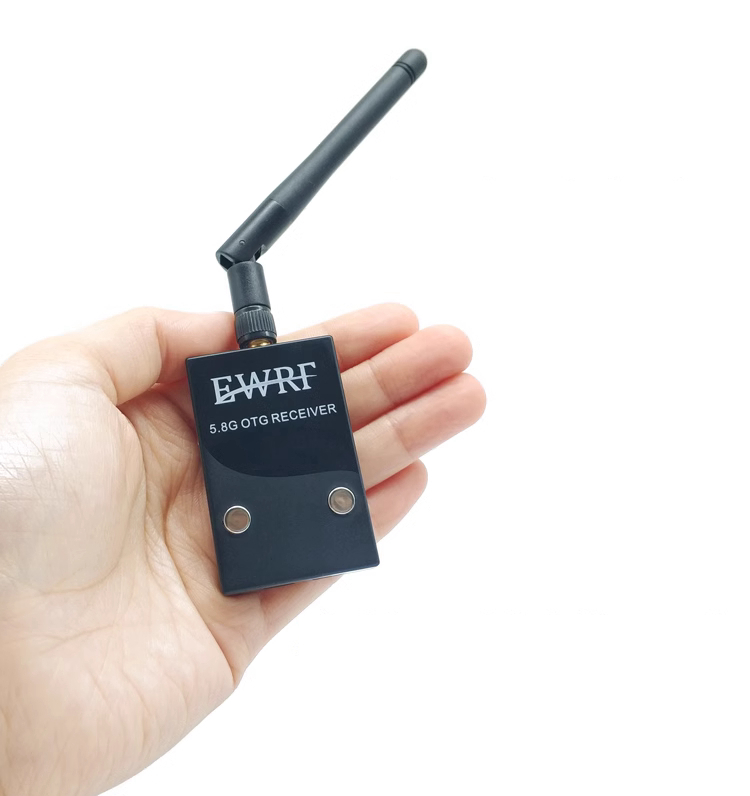

- Light weight and simple appearance

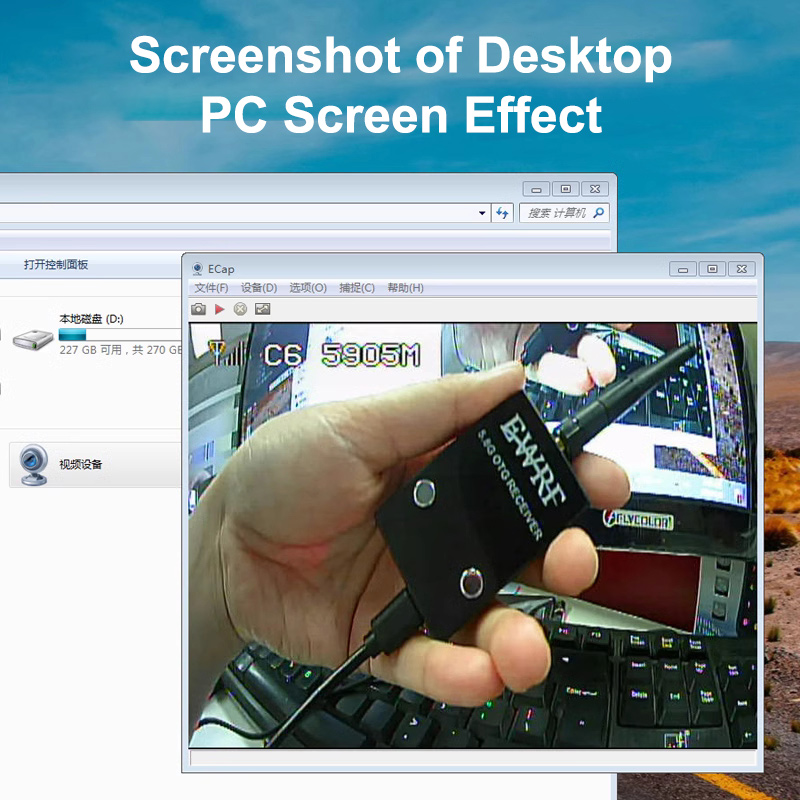

- Can be connected to an external display

Specifications of OTG Receiver:
- Weight: 22.8g/0.05lb (including antenna)

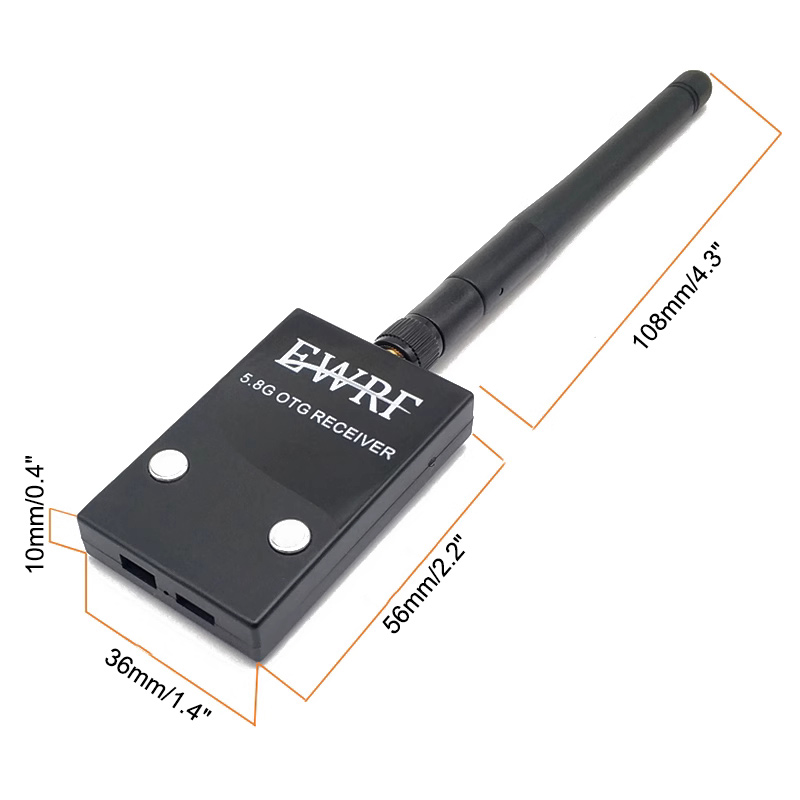

- Product dimensions: 56 x 36 x 10mm/2.2 x 1.4 x 0.4"
- Scanning method: fully automatic

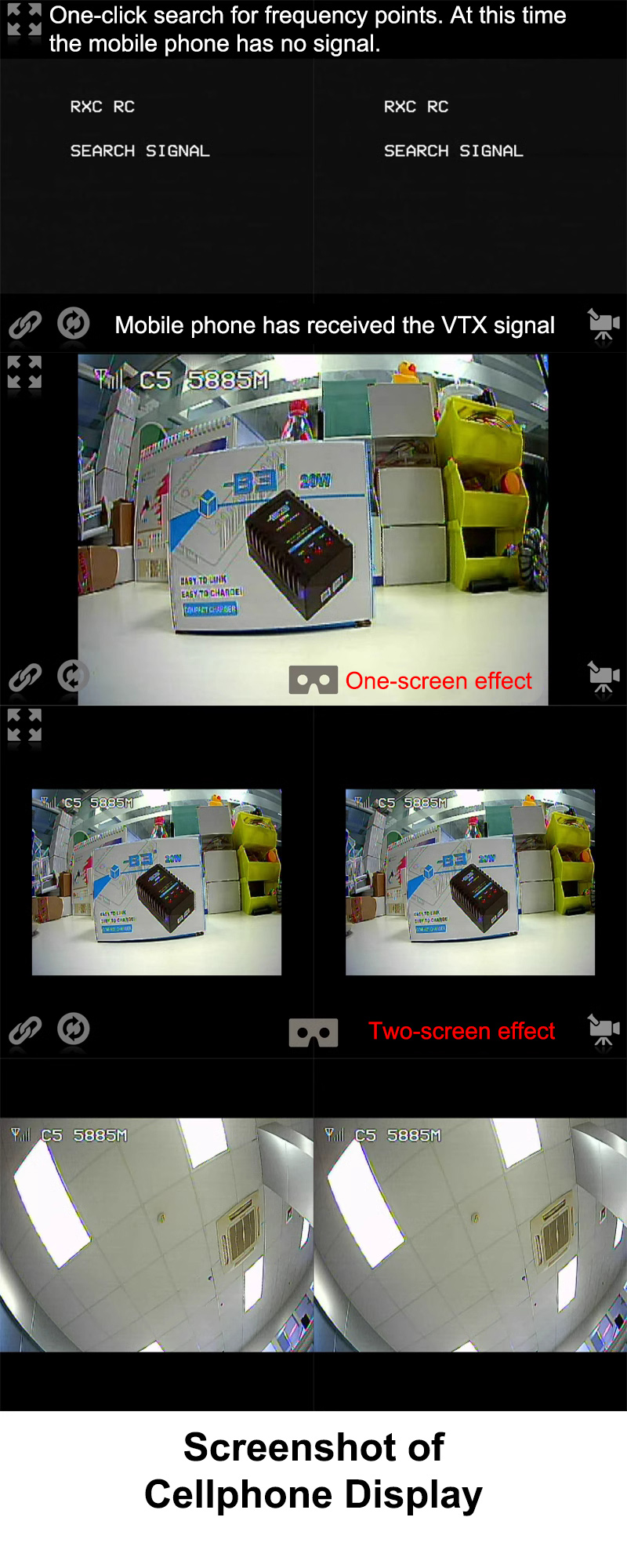

- Mobile APP: support pocket, USB camera
- Interface: Micro-USB, 1.27mm 4Pin
- Operating current: 5V/270mA
- Resolution: 720*480/30Fps
- Connection: Wired connection
- Use environment: open, unobstructed and undisturbed

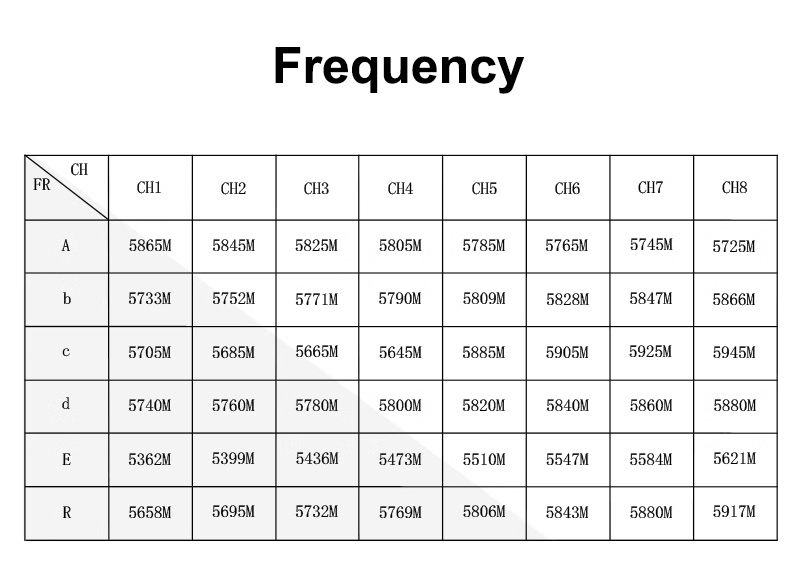

- Frequency channel: standard 48 channels

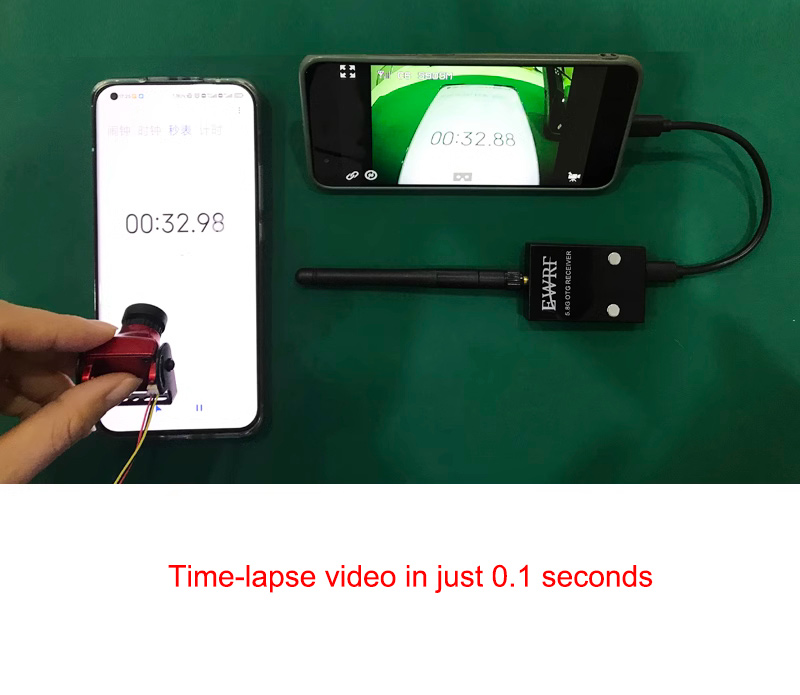

- Delay: Micro_USB delay is about 100ms, and 1.27_4Pin with no delay, depending on the performance of your display

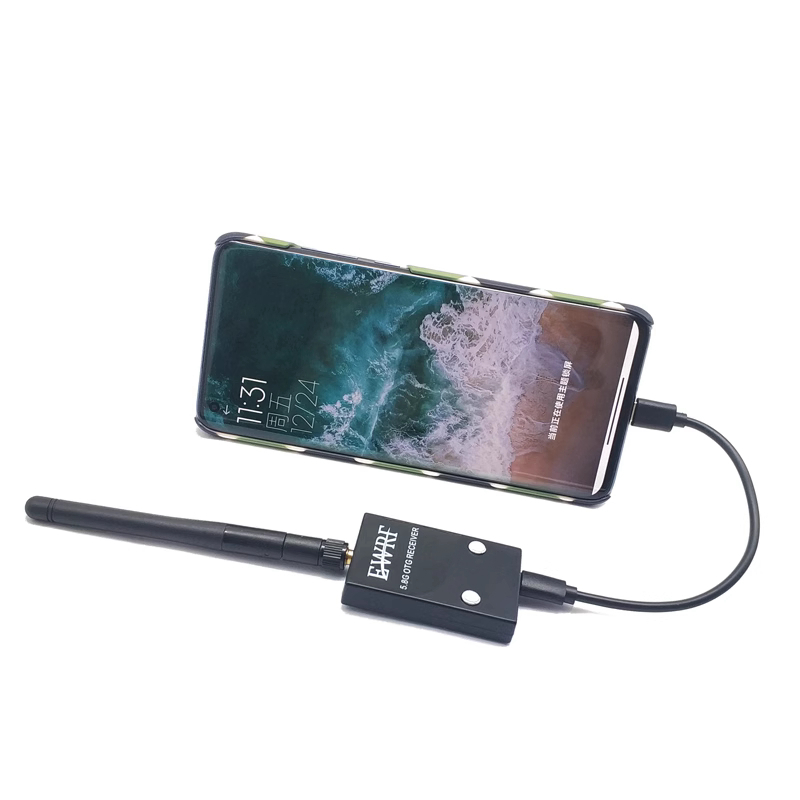

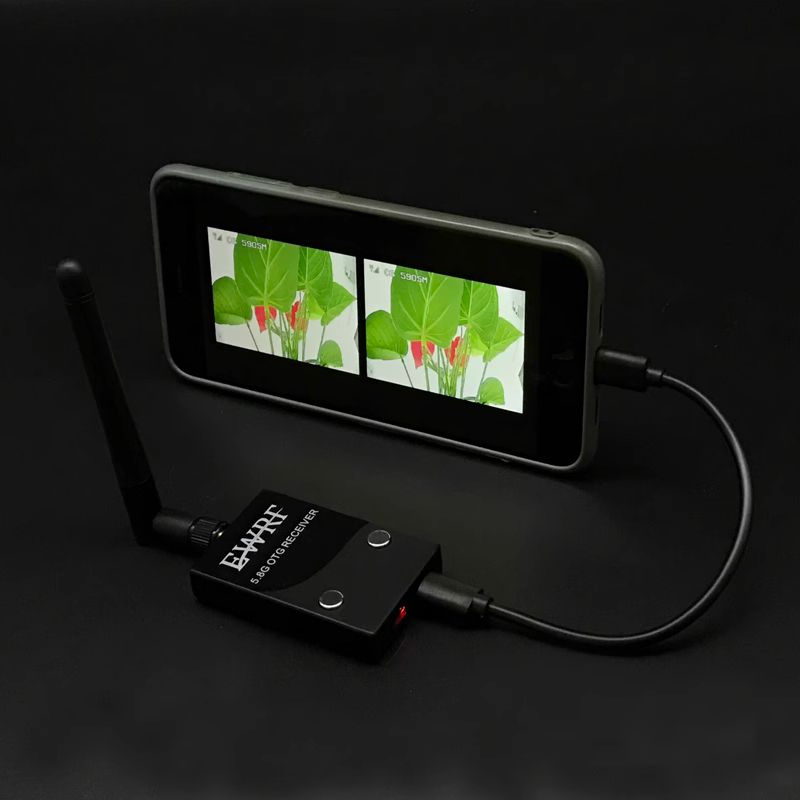

The UVC receiver needs to meet the following conditions:
1: Supports for all Qualcomm series of CPU
2: Kirin 950 CPU and higher models
3: MediaTek X20 CPU and higher models
4: Not for iPhone cellphones

Package Included:
- 1 x OTG receiver
- 1 x Antenna
- 1 x OTG cable (Micro_USB to Micro_USB)
- 1 x OTG cable (Micro_USB to Type_C)
- 1 x 1.27 4pin cable

Packaging Details:
- G.W.: 0.35kg

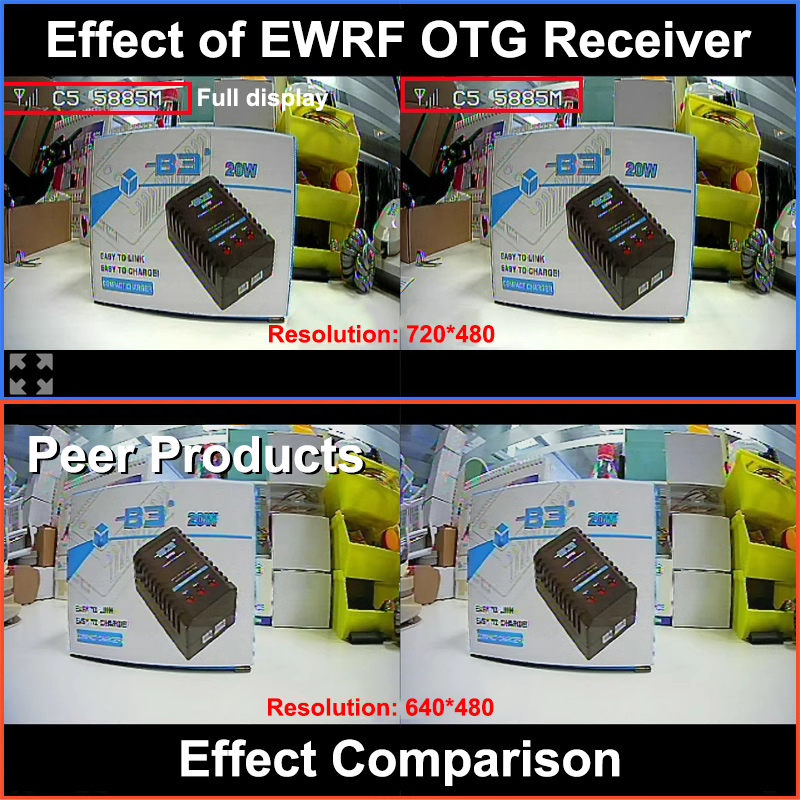

EWRF OTG Receiver VS Peer Products:
The biggest difference from other brands of mobile phone receivers:
First, the image returned by the OTG receiver is relatively high-definition compared to those of other brands, and the image compression is not obvious, which can be comparable to receivers such as display screens and goggles;

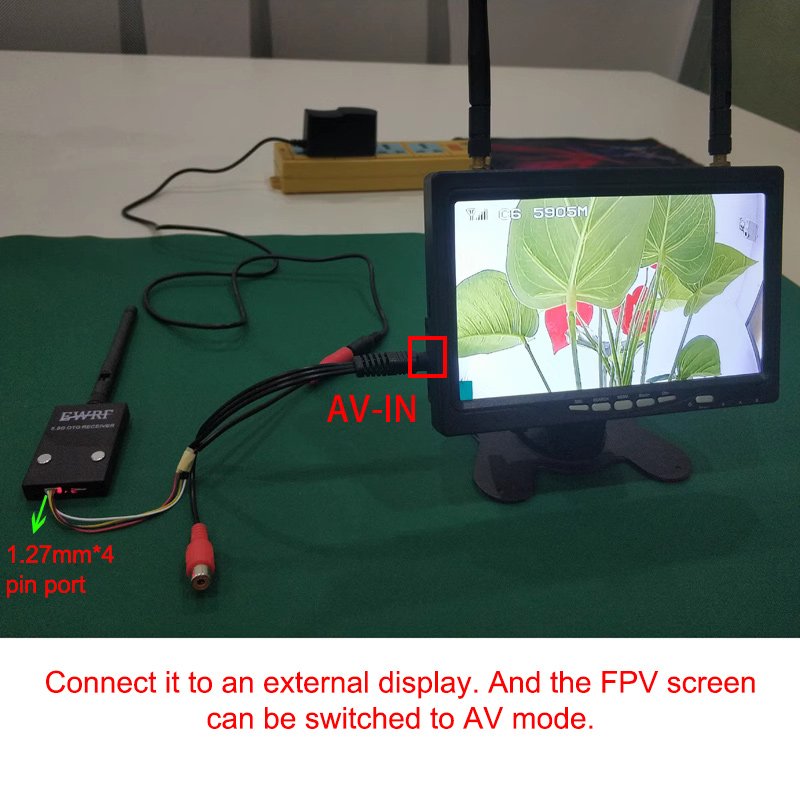

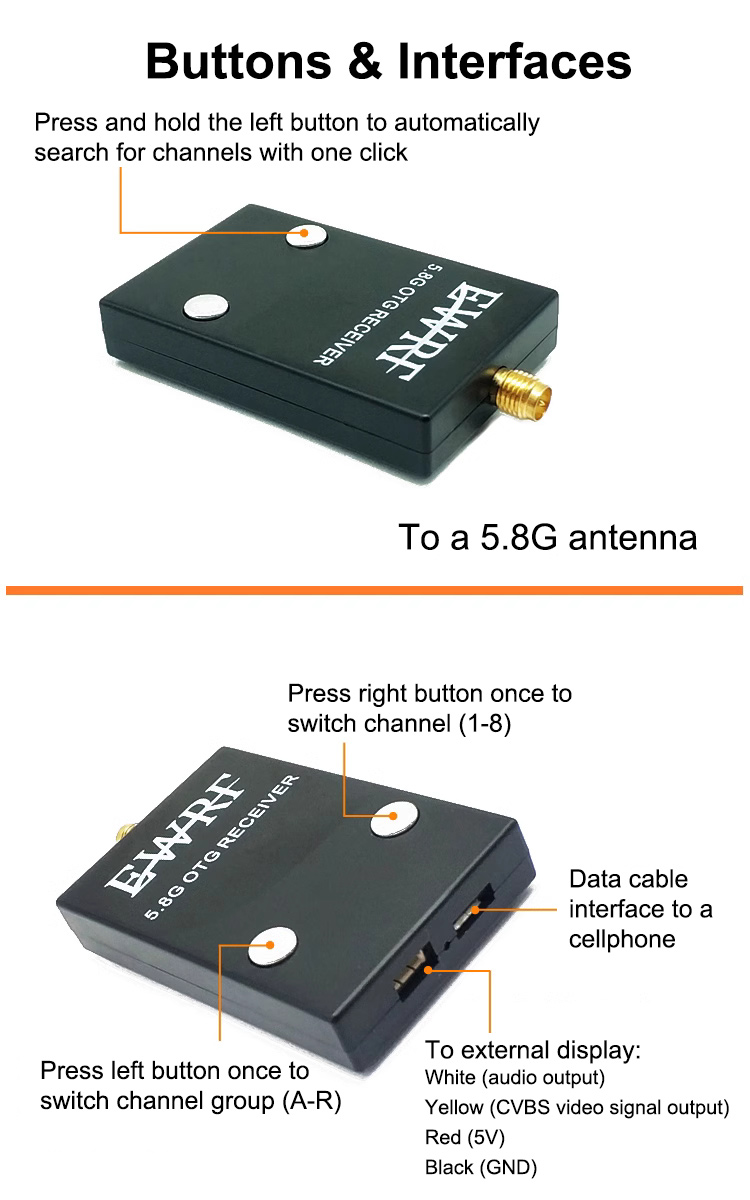

Second, the OTG receiver port can be connected to an external display and it supports 5V power supply. After connection to a display, users can adjust the channel by pressing button.

Third, the channel information will be displayed on the image of the OTG receiver. Dual button to adjust the channel makes it convenient to use.
