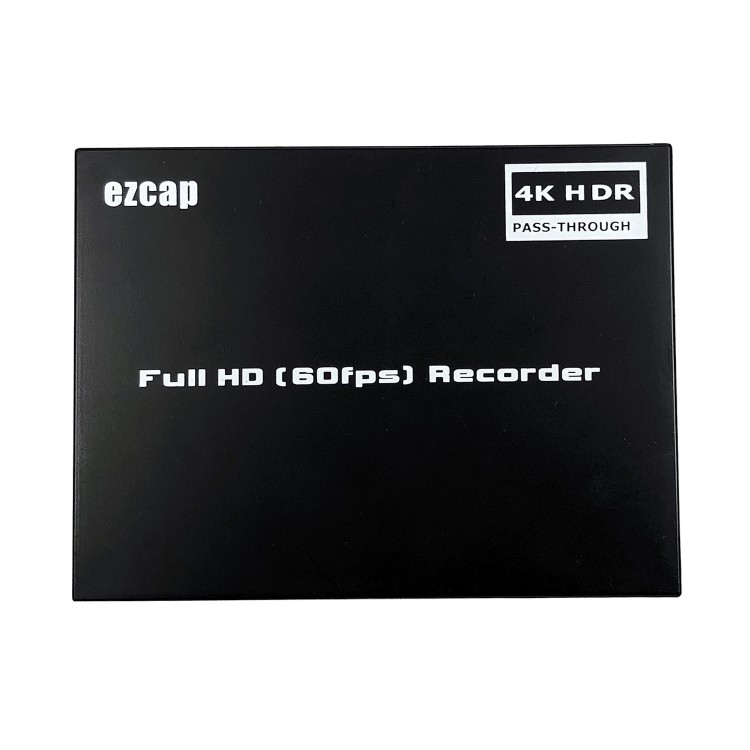

EZCAP274 HD Recorder Video Recorder 1080P 60FPS 4K HDR Video Acquisition Card For Games Recording
Description:
With EZCAP274, you can enjoy real-time 4Kp60 HDR games while recording full HD 60fps images.
With this HDMI 1080P60 full HD recording box, you can record any HDMI video source and achieve 1080P60 pictures.
Working Mode:
1. First connect to a USB cable and a USB power supply, white indicator light will light up, and the screenshot indicator light will continue to flash.
2. Ensure that the switch is in working condition.
3. Connect video source to the HDMI IN jack.
4. Connect the HDMI OUT port to a TV or monitor, you should be able to watch videos on your TV.
5. Insert a TF card (FAT32 or exFAT format) and make sure it has enough space. The screenshot indicator will turn off, indicating that the device is ready to record.
6. Earphone mic interface can be connected to a headset (TRRS), or a smart phone headset, in order to obtain audio output while inputting microphone voice.
7. Connect game controller audio output to the game controller interface for recording the chat voice of game team.
8. Press record button to start recording, and red recording indicator lights up; press it again to stop recording, the red indicator light is off, and the white indicator light is on.
9. During recording, or in working condition, every time you press the screenshot button, you will get a picture, and the screenshot indicator will flash once.
Settings:
1. Set RTC to local time: Create a new "rtc_setup.txt" file, input digital time format such as "201910111521", and copy it to your TF card. Unplug power supply, insert the TF card. Plug in the power supply, wait a few seconds until the screenshot indicator goes off, pull out the TF card and check on the computer. If the "rtc_setup.txt" file disappears, it means the setup is successful.
2. Set the time watermark attached to the upper left corner of the recording file: In the working state, long press the screenshot button to switch between watermark and no watermark, and the red and white recording indicator will flash alternately. If the indicator light flashes three times alternately after long press, it means switch to the watermark state; otherwise, after long press, the indicator light flashes alternately once, it means switch to no watermark state.
- Resolution: Input/Output: 720x480 (60p), 720x576 (50p), 1280x720p (60p), 1920x1080 (50i), 1920x1080(60i), 1920x1080 (50p), 1920x1080 (60p), 3840x 2160 (60p) HDR. Recording: 720x480 (60p), 720x576 (50p), 1280x720p (60p), 1920x1080 (50p), 1920x1080 (60p)
- Recording quality: Maximum 22Mbps at 1080P 60fps
- Recording format: h.264 mp4
- Recording file: 3.8GB/pc
Package Included:
- 1 x Set of Video Acquisition Card
