EZCAP284 HD 1080P HDMI YPbPr Recorder CVBS Resolution Game Console with Remote Control
CONNECTIONS:
Interface |
USB 2.0 Host SD card |
Video Input |
Digital: HDMI |
Analog: Component Video, Composite Video |
|
Audio Input |
Digital: HDMI |
Analog: RCA L/R, 3.5mm MicroPhone In |
|
Note: Microphone without pass through for HDMI input |
|
Video Output |
Digital: HDMI (Pass-through from HDMI or Component or Composite Input) |
Audio Output |
Digital: HDMI (Pass-through from HDMI or RCA L/R Input) |
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input) |
APPLICABLE CONNECTIONS:
HDMI |
Industry HD camera, HD Medical endoscope, TV, gameplay, etc |
Component |
TV, gameplay, etc |
Composite |
Industry camera, Medical endoscope, TV, gameplay, etc |
Note |
HDCP contents cannot be recorded |
HARDWARE EXTRA:
Codec |
Hardware H.264 encoder |
User Interface |
Record button, 720p/1080p |
LED indicator for working status |
|
Dimensions |
141*74*24mm |
Weight |
116g |
STANDARDS:
Record Format |
Video: MP4, Audio: AAC Stereo |
Record Quality |
Max: 18Mbps@1080P 30fps |
Record File |
Max: 2GB / Per File, With RTC (Real Time Clock) |
Record Place |
Max: 140MB / Minute, 8.4GB / Hour |
Power Supply |
DC 5V / 2A |
Storage Media |
USB Flash Disk, Portable Hard Disk, SD card |
Max Capacity: USB / 2T |
|
Note: The exFAT format is not supported |
|
Resolution Input / Pass-through |
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p) |
Resolution |
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p) |
Note: Upscaling is not supported |
APPLICATIONS:
Software |
Arcsoft Showbiz |
Video Editing |
Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes |
Video Export |
Upload to YouTube |
Portable Device |
|
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) |
|
Operating System |
Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit) |
CPU |
Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz |
Memory |
4 GB RAM |
Graphics Card |
VGA card with support for DirectX 10.0c or above |

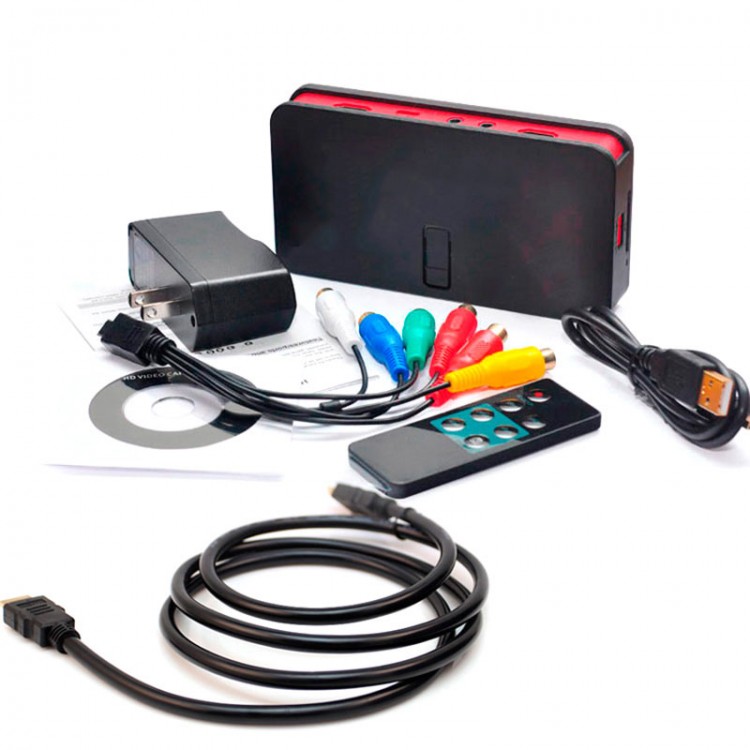

Package:
- 1 x Video Card
- 1 x Remote Control
- 1 x Remote Expand Cable
- 1 x Plug DC Adapter
- 1 x Software CD
- 1 x User Manual
