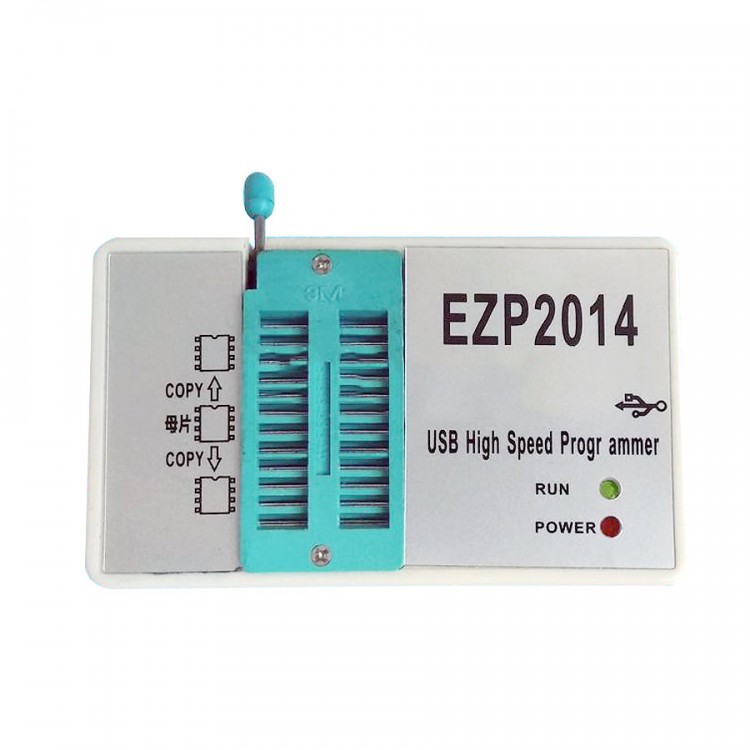

EZP2014 High Speed USB Programmer Fit for 24 25 93 EEPROM 25 SPI FLASH Win7 Win8 XP

EZP2014 High Speed USB Programmer Fit for 24 25 93 EEPROM 25 SPI FLASH Win7 Win8 XP

Features:
- User-Friendly Interface: With Chinese-English operation interface, it is easy to use it
- USB 2.0 Interface: Integrated USB2.0 port with speed up to 12Mbps
- Fast speed to read and write
- Automatically detect chip models
- Automatically check whether your chip is in place correctly
- Automatically select power supply voltage to power your chip
- Automatic off-line chip copying
- Supports PC software and USB programmer hardware upgrading
- Supports 25 SPI FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM and the like
- Compact size makes it portable to carry
- Fits for Windows 2000, Windows XP, Windows Vista, Windows 7, Window 8

Package Included:
- 1 x EZP2014 USB Programmer

Note: If adaptor for SOP chip is needed, please contact us. Thank you!

Supported Chips:
    *******************25 SPI FLASH********************
- AMIC: A25L05P, A25L512, A25L010, A25L10P,A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032

- ATMEL: AT25F512,AT25F512A,AT25F512B,AT25F1024,AT25F1024A,AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A, AT26DF321, AT25DF641

- EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40,EN25F40,EN25LF40,EN25D80,EN25F80, EN25Q80,EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16,EN25Q16,EN25T16, EN25B32,EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64,EN25P64,EN25Q64,EN25F128,EN25Q128

- ES: ES25P10, ES25P20, ES25M40, ES25M40A,ES25P40,ES25M80,ES25M80A,ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32

- ESMT: F25L004A,F25L04UA,F25L008A,F25L08PA,F25L016A,F25L16PA,F25L32PA,F25L32QA

- MXIC: MX25L512,MX25V512,MX25L1005,MX25L2005,MX25L4005A,MX25V4005,MX25L8005, MX25V8005, MX25L1605D,MX25L1635D,MX25L3205D,MX25L3225D,MX25L3235D,MX25L3237D, MX25L6405D, MX25L12805D

- NEXFLASH: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

- PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B,PM25LV016B

- SAIFUN: SA25F005, SA25F010, SA25F020,SA25F040,SA25F080, SA25F160,SA25F320

- SPANSION: S25FL004A,S25FL008A,S25FL016A,S25FL032A,S25FL064A,S25FL128A,S25FL128P

- SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,SST25VF020,SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B,SST25VF032B, SST25VF064C

- ST: M25P05A, M25P10A, M25PE10,M25P20,M25PE20, M25P40, M25PE40, M25P80,M25PE80, M25PX80, M25P16, M25PE16,M25PX16,M25P32,M25PX32, M25P64, M25PX64, M25P128

- WINBOND: W25P10, W25X10,W25X10A,W25X10AL, W25X10L, W25P20,W25X20,W25X20A,W25X20AL, W25X20L, W25P40, W25X40,W25X40A, W25X40AL, W25X40L,W25P80,W25X80,W25X80A, W25X80AL, W25X80L, W25P16,W25X16, W25P32, W25X32, W25X64,W25Q64BV,W25Q128BV

- MSHINE: MS25X80,MS25X40,MS25X64,MS25X32,MS25X16,MS25X128,MS25X10,MS25X05,MS25X20

- GIGADEVICE: GD25T80,GD25Q80,GD25Q32,GD25Q64,GD25Q128,GD25Q512,GD25Q16,GD25Q20, GD25Q10,GD25F80,GD25F40,GD25D80,GD25D40

***********************24 EEPROM*************************
- ATMEL: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

- CATALYST: CAT24C01, CAT24WC01,CAT24C02,CAT24WC02,CAT24C04, CAT24WC04,CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64,CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24WC512,CAT24C1024, CAT24WC1024

- COMMON: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V,24C04 3V,24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V,24C64 5V, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V,24C1024 5V

- FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L

- HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04,HT24C08,HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024

- ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

- MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02,24LC02B,24AA024,24AA025,24AA04,24C02C, 24LC024,24LC025,24LC04B,24AA08, 24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64,24FC64,24LC64, 24AA128,24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512,24LC512, 24AA1024

- NSC: NSC24C02, NSC24C02L, NSC24C64

- RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

- ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

- ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

- XICOR: X24C01, X24C02, X24C04, X24C08, X24C16


***********************25 EEPROM*************************
- ATMEL: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512, AT25SF040,AT25SF010,AT25F512A,AT25F512B,AT25F512,AT25F2048, AT25F4096,AT25F1024,AT25F1024A,AT25DF641,AT25DF321,

- CATALYST: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S

- COMMON: 25010,25020,25040,25080,25160,25320,25640,25128,25256,25512

- MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

- RAMTRON: FM25C160, FM25640, FM25CL64

- ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

- TI: TI2532, TI2532A, TI2564

- XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512

***********************93 EEPROM*************************
- AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

- ATC: ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8, ATC93LC46(8bit),ATC93LC46(8bit)-SOP8, ATC93C56, ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit), ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit), ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8

- ATMEL: AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

- CATALYST: CAT93C46(16bit), CAT93C46(8bit), CAT93C46A, CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A, CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit), CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)

- COMMON: 93C46(16bit), 93C46(8bit), 93C56(16bit),93C56(8bit),93C66(16bit),93C66(8bit), 93C86(16bit), 93C86(8bit)

- EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

- FAIRCHILD: FM93C06AM8(16bit), FM93C06AM8(8bit), FM93C06M8, FM93C06N, FM93C46AM8(16bit), FM93C46AM8(8bit), FM93C46AN(16bit), FM93C46AN(8bit), FM93CS46(16bit), FM93C56AN(16bit), FM93C56AN(8bit), FM93CS56(16bit), FM93C66AM8(16bit), FM93C66AM8(8bit), FM93C66AN(16bit), FM93C66AN(8bit), FM93C66B, FM93C66M8(16bit), FM93C66MT8(16bit), FM93C66N(16bit), FM93CS66(16bit), FM93C86AM8(16bit), FM93C86AM8(8bit), FM93C86AN(16bit), FM93C86AN(8bit)

- HOLTEK: HT93LC46A(16bit), HT93LC46A(8bit), HT93LC56A(16bit), HT93LC56A(8bit), HT93LC66A(16bit), HT93LC66A(8bit)

- ICT: ICT93C46(16bit), ICT93C46(8bit), ICT93C56(16bit), ICT93C56(8bit), ICT93C66(16bit), ICT93C66(8bit)

- ISSI: IS93C46(16bit), IS93C56(16bit), IS93C66(16bit)

- MICROCHIP: 93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit), 93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8, 93C46A, 93C46B, 93LC46(16bit), 93LC46(16bit)-SOP8, 93LC46(8bit), 93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit), 93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit), 93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56(8bit)-SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66(16bit), 93AA66(8bit), 93AA66(8bit)-SOP8, 93C66(16bit), 93C66(16bit)-SOP8, 93C66(8bit), 93C66(8bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66(16bit), 93LC66(16bit)-SOP8, 93LC66(8bit), 93LC66(8bit)-SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76(16bit), 93AA76(8bit), 93C76(16bit), 93C76(8bit), 93LC76(16bit), 93LC76(8bit), 93LC76A, 93LC76B, 93AA86(16bit), 93AA86(8bit), 93C86(16bit), 93C86(8bit), 93LC86(16bit), 93LC86(8bit), 93LC86A, 93LC86B

- NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

- ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

- ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66
