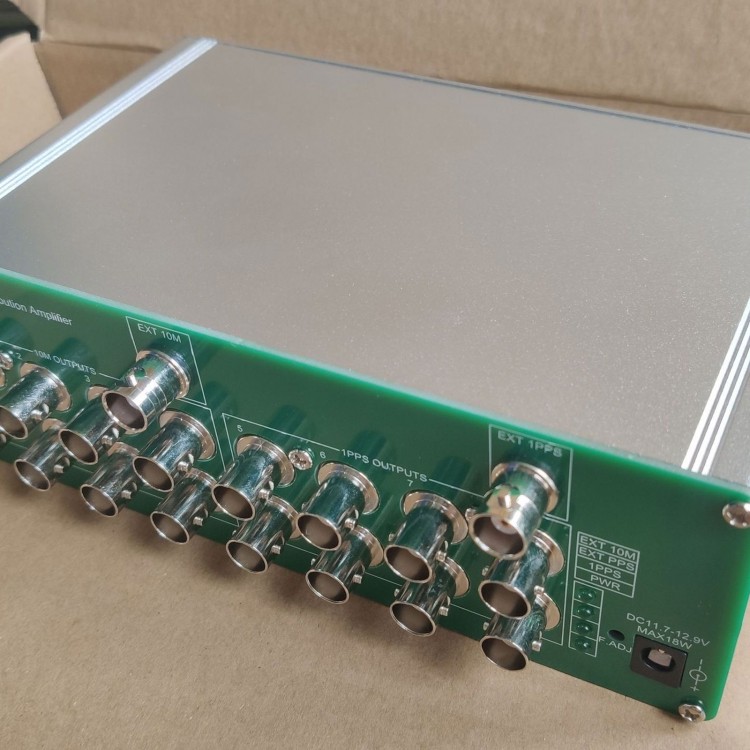

FDIS-8-8 10M 1PPS 8+8 Channels Clock Distributor CDA2990 Pulse Splitter Frequency Distribution Amplifier

FDIS-8-8 10M 1PPS 8+8 Channels Clock Distributor CDA2990 Pulse Splitter Frequency Distribution Amplifier

Specification:
- Product name: 8+8-channel clock distributor
- Product model: FDIS-8-8
- Product principle: Built-in 10M and 1PPS 1 to 8 circuits, with a built-in 1PPS frequency divider circuit that generates 1PPS from 10M. It can input only 10M externally and output 8 channels of 10M and 8 channels of 1PPS. 1PPS is split from 10M, or external input 10M and 1PPS each can be split into 8 channels output.
- Input:
  10M input: 0.5-5Vpp square wave, sine wave, triangular wave, etc., 50ohms
  1PPS input: 0.5Hz-200M, 0-3.3/5V square wave, TTL level
- Output:
  10M output: +13dBm sine wave, impedance of 50ohms, frequency consistent with input
  1PPS output: 0-3.3V/5V square wave optional, impedance of 50ohms, frequency and input consistent, duty cycle and input consistent.
- Interface: DC interface 5521, signal interface: SMA/BNC (optional)
- Power indicator light:
  EXT 10M: external 10M input
  EXT 1PPS: external 1PPS input
  1PPS: 1PPS output port indicator light
  PWR: power indicator light
- Working temperature: -10 ~ 50℃
- Storage temperature: -20 ~ 75℃
- Power supply: DC 12V/0.5A
- Product size: 178 x 62 x 120mm
- Net weight: 0.8kg
- Operation steps: simply power on to use

Package Included:
- 1 x Clock Distributor
- 1 x Power Adapter

Note:
- Satellite default GPS, optional GPS/BDS/GAL/GLO; Choose up to 2 options.
- The connector is optional (SMA/BNC), please leave a message for the connector you need after payment.
- The 1PPS output is optional (0-3.3V/5V), please leave a message for the output you need after payment.
