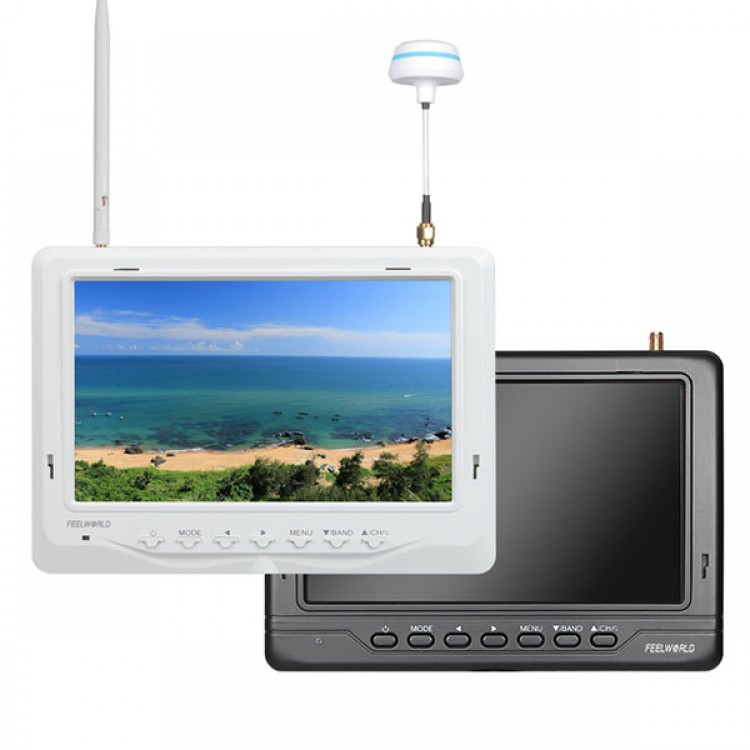

Feelworld FPV718 7 Inch FPV Monitor Built in Battery Dual 32CH 5.8GHz Diversity Receiver
Specification
- Description 7'' super slim FPV Monitor built-in battery dual 32CH 5.8GHz diversity receivers - Model FPV718
- Dot Resolution 1024x600
- Dot pitch 0.05(W) × 0.15(H) mm
- Aspect Ratio 16:9
- Brightness 500cd/m²
- Contrast Ratio 700:1
- Backlight LED
- Response Time 10ms
- Viewing Angle 75°/75°(L/R) 70°/75°(U/D)
- Support video format PAL-4.43;NTSC-3.58
- Input Signals Mini HDMI、AV、RF
- Output Signals AV ,3.5mm Earphone Jack
- HDMI Mode "480i /480p /576i /576p
- 720p /1080i /1080p (50/60Hz)"
- Built-in battery 7.4v/2200mA(2 hours)
- Input Voltage 9-18V
- Power Consumption ≤10W(with battery)
- workingTemperature -20℃~50℃
- storage Temperature -30℃~65℃
- Install Way """1/4""-20 Thread mounting socket"
- Unit Size 190mmx134mmx18mm
- Unit Weight 440g
Advanced Features
- Super Light and Slim 18mm Width
- Built-in integrated lipo battery
- Channel Auto searching ,selection via button
- Best Channel Receiption via Antenna Auto-switching
- 5.8GHz,32 Channels Receiver
- Video outputs and DC output to connect and power other equipment
- High resolution 1024x600,Bright 500cd/m²
- No blue screen
- High Sensitivity:-90dBM
- Compable with all 5.8GHz transmitters 32ch, such as Fatshark, Boscam
- Not affected by 2.4ghz radio controller
Photography Functions
- Peaking Focus Assist
- Check Field(Red,Green,Blue,Mono)
- Camera 5D II Mode
- Screen Marker
- Centre Marker
- 4:3&16:9 image adjustable
- Full Screen Display in mode of Monitoring & Recording
Application
- Professional FPV Monitor
- Wireless video leisure goods
- DVD/DVB AV wireless transfer
- Engineering construction monitor
- Wireless camera security system
- Wireless video medical apparatus
- Wireless visual reversing camera transmission
Standard Accessory
- 1PCS Mushroom Antenna,1PCS common Antenna
- Li Battery
- HDMI converter: mini-standard
- Plastic Sunshade
- Power Adapter
- 3.5AV Cable
- Operation Manual
