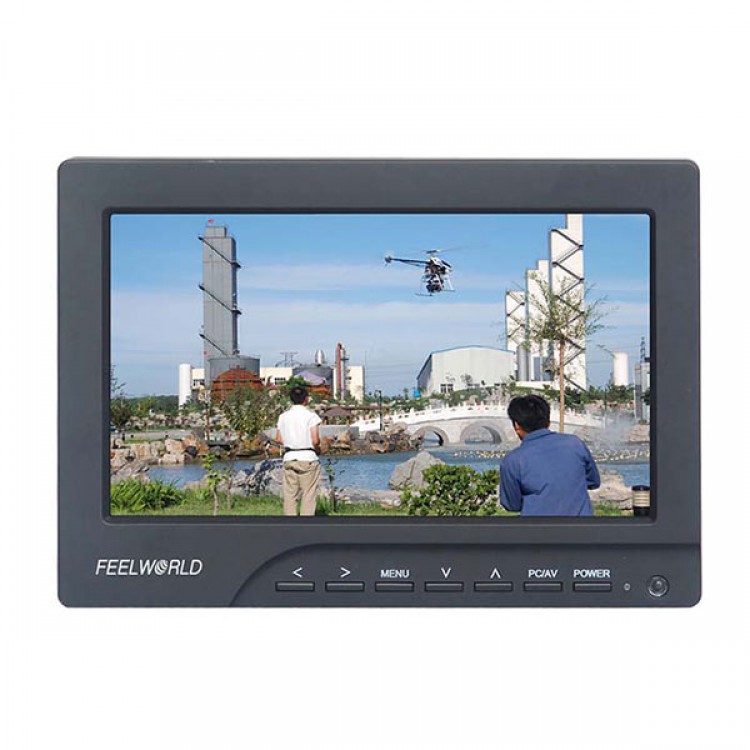

Feelworld FPV769A LCD 7 inch FPV Monitor Displayer 800x480 Screen Monitor Photography for Ground Station

Feelworld FPV769A LCD 7 inch FPV Monitor Displayer 800x480 Screen Monitor Photography for Ground Station

Specification
- Description    7" FPV monitor for aerial photography
- Model    FPV769A
- Resolution                      800X480
- Dot pitch    0.0642（W）×0.1790（H）mm
- Aspect ratio    16:9
- Brightness    400cd/m²
- Contrast    500:1
- Backlight    LED
- Response time    15 ms
- Viewing Angle    70°/70°,50°/60° (L/R,U/D)
- Inputs    RCA Video,Audio, DC power
- Surface Treatment    Anti-Glare
- Support video format    NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.
- Speaker    Built in, 1 Watt
- Input Voltage     DC 6-24V
- Power Consumption    ≤5W
- workinging Temperature    -20℃～60℃
- Storage Temperature    -30℃～70℃
- Install Way    """1/4""-20 Thread and VESA mounting socket(75mm) "
- Unit Size    182.7L × 127.7W × 29.6H(mm)
- Unit Weight    360g

 Specification
- usage: FPV, aerial photography
- You can install in different angles
- FPV screen: high quality screen which can protect your screen from black blue and splash.
- Imitate Composite video input, connect with aerial camera
- It can connect with camera as the assist monitor for monitor display or aerial photography
- High brightness and contrast screen with LCD hood which make you can see the image clearly in the sun without dizziness
- Connect with DVD can function as car monitor.
- It can automatically identify the dual mode NTSC and PAL, two display mode (16:9and 4:3) for  your choose

Standard Accessory
- Cloth Sunshade
- Operation Manual
