| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $131.05 | $128.37 | $124.36 | $119.01 | Contact US |
5.8G 48CH 3 Inch FPV Goggles Drone Goggles with Built-In Dual Antenna Battery for FPV Racing Drones
$45.59
Tarot TL3502 7" HD FPV Monitor Drone FPV Video Monitor with DVR 5.8G Two Antennas LED Backlight
$97.75
HDO3 DOMINATOR HD FPV Goggles 1080P Drone Goggles (White) FHD OLED Display for FATSHARK
$696.68

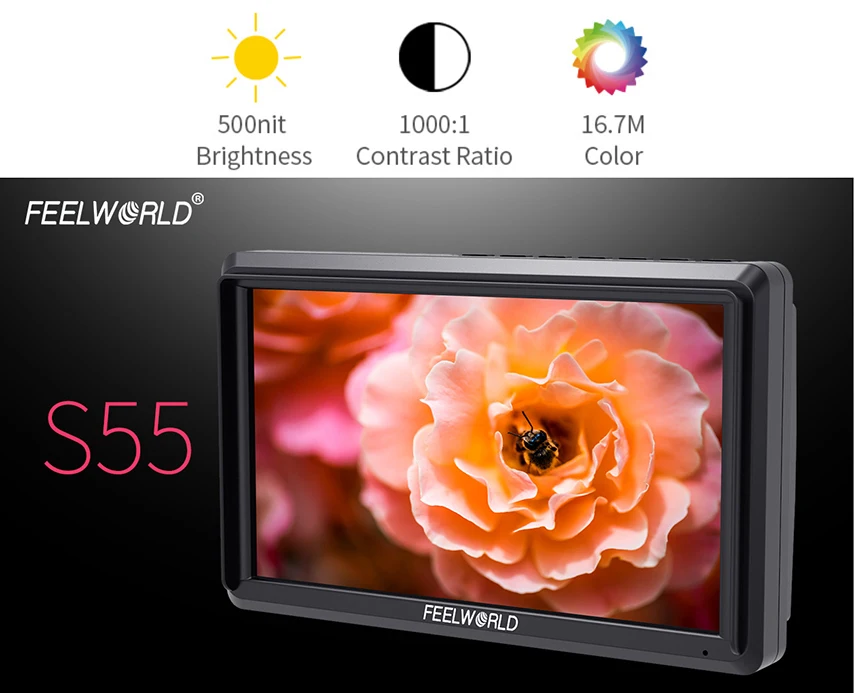

5.5 inch Monitor with Widescreen
FEELWORLD S55 is a lightweight 5.5" monitor at a 16:9 aspect ratio. The high resolution 5.5" LCD display shows bright, clear images - making it an ideal monitor for the discerning DSLR user. The S55 features a panel with native 1280 x 720 resolution, 500cd/m2 brightness, 1000:1 contrast ratio, which facilitates the onscreen image to be a more vibrant, more accurate rendition of what the camera sensor sees.
Different Angles, The Same Beautiful Picture
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And he wide viewing angle makes it easy for multiple crew members to watch at the same time.

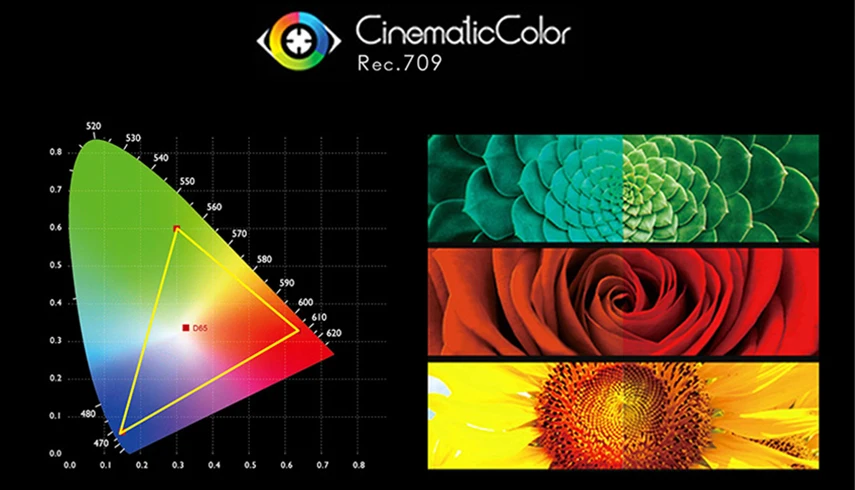

True Color, Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Small and Lightweight
175g light-weight design: Makes great convenient for cameraman in outdoor or handheld applications. The S55 on-camera monitor's small size makes it ideal for gimbals and lightweight camera systems especially those without a built-in display.
4K HDMI Input & Loop Output
The S55 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
HDMI Output Applications
Connect to Wireless Transmitter, Director Monitor, Projector, etc.
Auxiliary Power
Real-time power charge for cameras
A DC output port enables you to power your camera directly from an NP-F L-series or LP-E6 battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras. In addition, you can monitor audio using the 3.5mm stereo headphone jack.

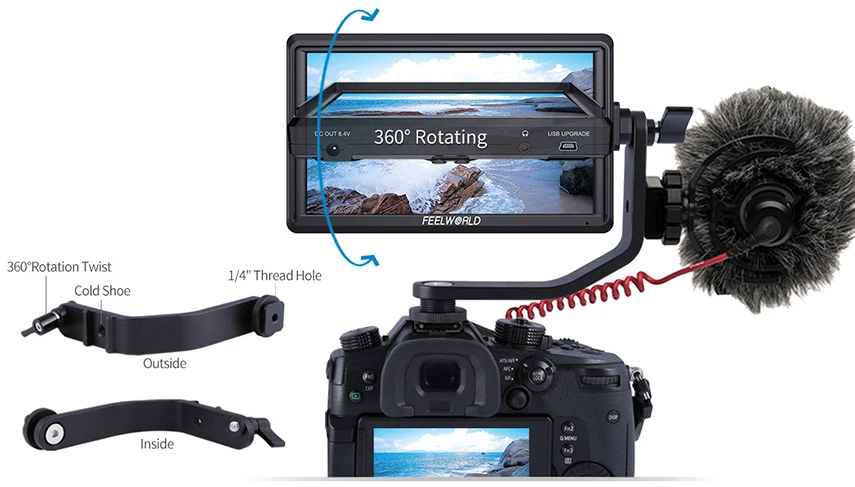

Convenient Mounting - Tilt Arm
Every S55 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allow S55 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Include a shoe mount of its own for accessories like a microphone
Easy Image Analysis
The S55 is a mini but mighty 5.5" monitor packed full of features that are the perfect complement to a DSLR rig. To assist you during your productions, the S55 has a lot of standard software features such as false color and histogram to get the perfect exposure, peaking for focus assist, embedded audio, pixel to pixel, frame guides, and much more.
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Multiple Languages for Your Choice
S55 monitor supports multiple languages, like English, Spanish, Portuguese, French, Dutch, German, Japanese, Chinese language. You can choose what you want to display in.
CE, FCC, ROHS Certificates
Flexible Dual-purpose Battery Plate
Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.
Multiple Install Way
To convenient the various angles monitoring
The monitor features standard 1/4" mount points (bottom, right) for attaching it to cameras and rigs. The external 1/4" screw design is used to make the monitor lighter and thinner.
Flexible Install Both on Camera and Gimbal
Not only you can install it on a handheld stabilizer, but also you can mount itsecurely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen! S55 equipped with one 1/4'' screw, if you also want to fast install at gimbal, you can buy one more 1/4'' screw.
Newest Sunshade Design, Easy Install
The monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. Moreover, the monitor and the sunshade fixing frame are integrated, so you can directly attach the sun visor to the monitor through the attached velcro. The installation process is simple and fast, which is very suitable for outdoor shooting.
The Product Warranty of our products is ONE year.
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly ways:
1. If it is quality problem, buyer must provide photos or video or other evidences to seller for evaluation and identification.
2. Man-made damaged, buyers should take full responsibility.
3. Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
