Fiber Optic FTTH Tool Kit FC-6S Fiber Cleaver Power Meter Visual Finder Locator

Fiber Optic FTTH Tool Kit FC-6S Fiber Cleaver Power Meter Visual Finder Locator

Model:FC-6S
Name:Fiber Optic FTTH Tool Kit

Power Meter
Features
1.Self calibration
2.More than 48 hours continuous working time
3. Linear Display (mW) and Logarithmic display (dBm) show on the same screen
4.Support FC/SC/ST interface and quick switch
5.Auto switch
6.Backlight available

Specifictions:
1.Test Range: -70~+3dbm
2.Probe Type: InGaAs
3.Wavelength Range: 800~1700nm
4.Standard Wavelength(nn): 850/980/1300/1310/1490/1550/1625
5.Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
6.Working Temp(℃): -10~+60℃
7.Storage Temp(℃): -25~+70℃
8.Auto Switch-off Time(min): 18min
9.Battery working period: ≥48hrs
10Size(mm): 162x75x27
11.Power: 3x AA rechargeable lithium battery or chargable Li-battery (battery not included)

FC 6S cutter
Specification:
1.Applicable bare wire diameter: 125μm
2.Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line
3.Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm)
4.Dimensions: 63 * 76 * 63mm

Visual Fault Locator
Specification:
1. Output wavelength:650mm
2. Output light power: >1mW
3. Optical connector: universal connector
4.Operating temperature:0~+60℃
5. Storage temperature: -20~+70℃
6. Power supply: 2 x AA batteries(battery not included)
7. Dimension: 175mm*26mm

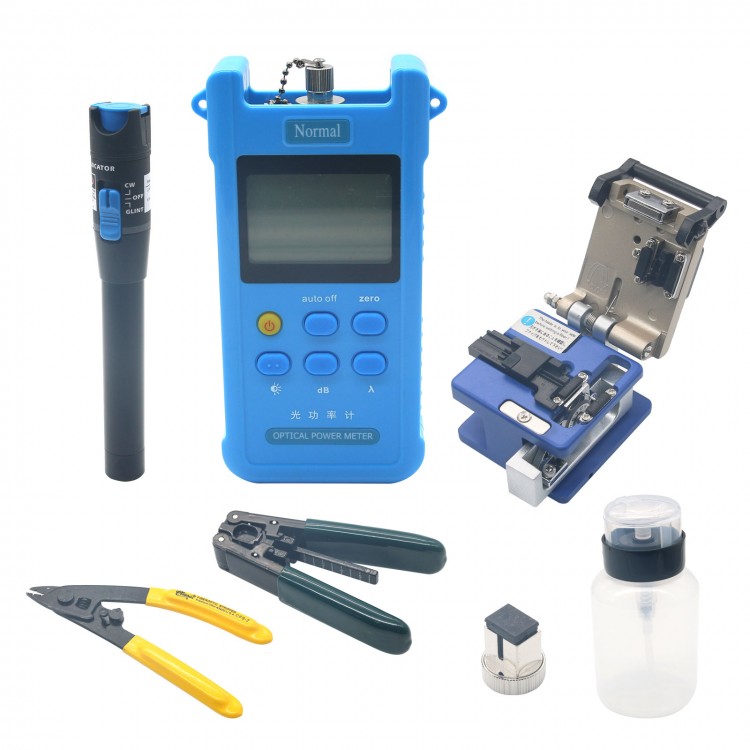

Package Included:
- 1 x Optical Power Meter
- 1 x Visual Fault Locator
- 1 x Fiber Cleaver FC-6S
- 1 x CLAUSS Fiber Optic Stripper/Model: CFS-2
- 1 x Coating Layer Stripping Pliers
- 1 x Screwdriver
- 1 x Black Carry Bag
- 1 pack Clean paper
- 1 pack Cotton swabs
- 1 x Alcohol bottle
