Fiber Optic FTTH Tool Kit Optical Fiber Cold Splicing FC-6S Fiber Cleaver 1MW 5KM Red Light Pen

Fiber Optic FTTH Tool Kit Optical Fiber Cold Splicing FC-6S Fiber Cleaver 1MW 5KM Red Light Pen

FTTH Tool Bag:
- Size: 245*170*95mm
- Backpack suitable for keeping optical fiber tools

FC-6S Fiber Cleaver:
- Suitable for fibers
- 1: Bare fiber (it is not bare fiber that can be ignited with a lighter)
- 2: The bare fiber is long enough to hold down both sides of the blade (the bare fiber is pressed down)

Miller Clamp:
- Peel off 0.125 bare fiber's 0.25 coating (coating layer)
- Attention: It is a fiber stripper, not a scissors, please not use it as a cutter

Covered Wire Pliers:
- Stripping tool for 3.1*2.0mm covered wire
- Attention: First tear the thick steel wire for outdoor covered cable and cut it with diagonal pliers

Device To Fix Fiber Length:
- Optical fiber fixing tool
- 1: Push-position to fix lengths of cladding and bare fiber
- 2: Peel off 0.125's 0.25 cladding

Covered Wire Fixture:
- Optical fiber fixed length tool
- Suitable for cold splicing of fiber optic head
- Set 28, 30, 34mm fiber length
- Can be fixed on the fiber cleaver

Hex Wrenches:
- Tool to adjust fiber cleaver
- One 2.5mm hex wrench
- One 2mm hex wrench
- One 1.5mm hex wrench

Storage Bag For Fiber Cleaver:
- Size: 80*80*60mm
- To store FC-6S cleaver

1mW Red Light Pen:
- 5 km
- Pen type visual fault detector
- Find optical fiber line or determine whether signal can pass the line or not

Optional Ceramic Sleeve For Red Light Pen:
- Two sizes for options
- Size 1: 7*3.6*2.5mm
- Size 2: 5*3.6*2.5mm

210ML Empty Bottle:
- Leak-proof alcohol pump
- Size: 123*60mm
- Attention: Can hold 99.7% alcohol
- Note: Alcohol is not included in the package

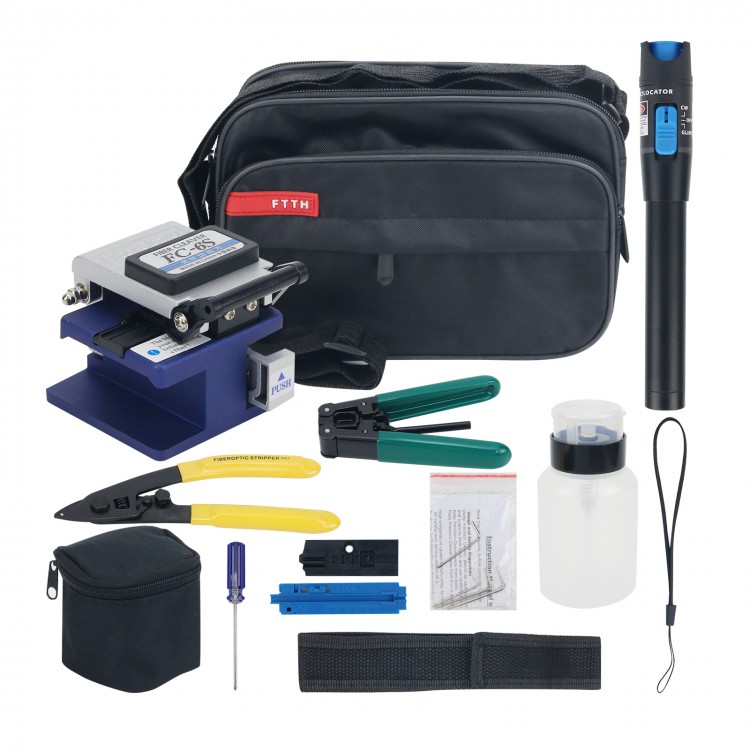

Package Included:
- 1 x Set of FTTH Tools

Note:
- Alcohol is not included in the package.
- 2pcs AA batteries are recommended. Batteries are not included.
